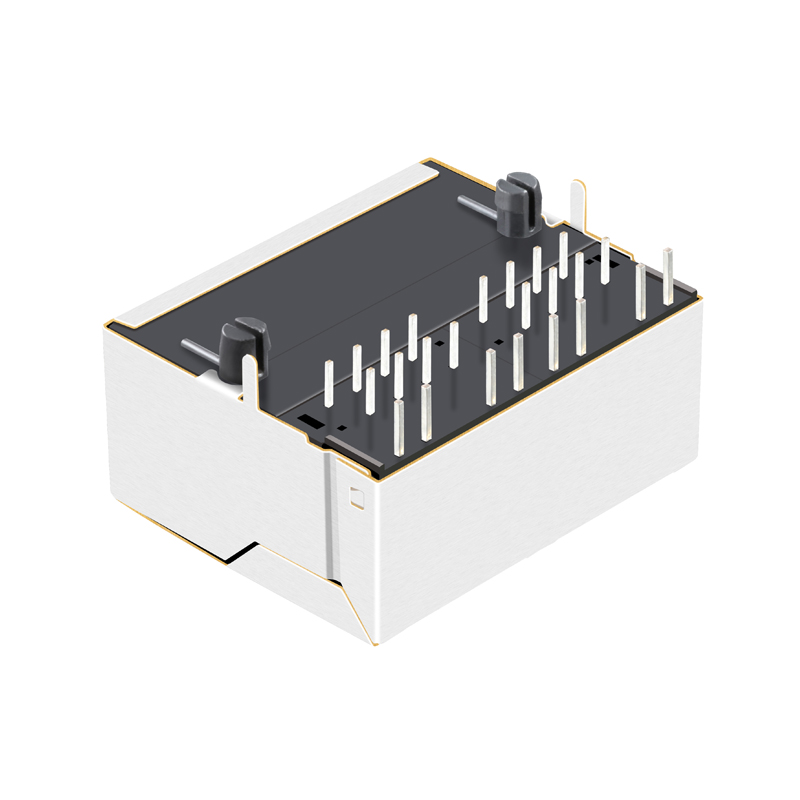

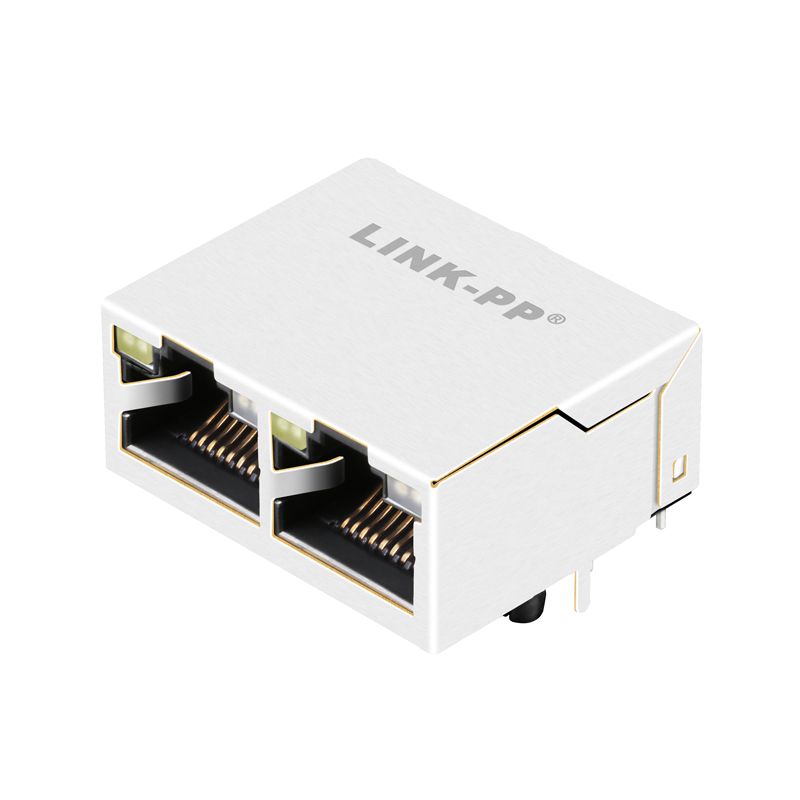

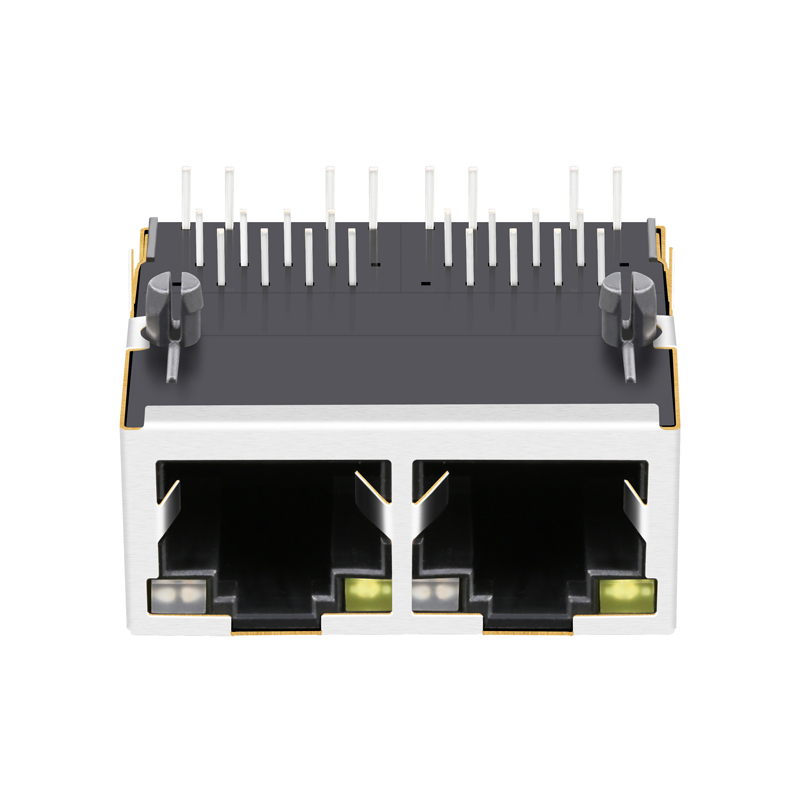

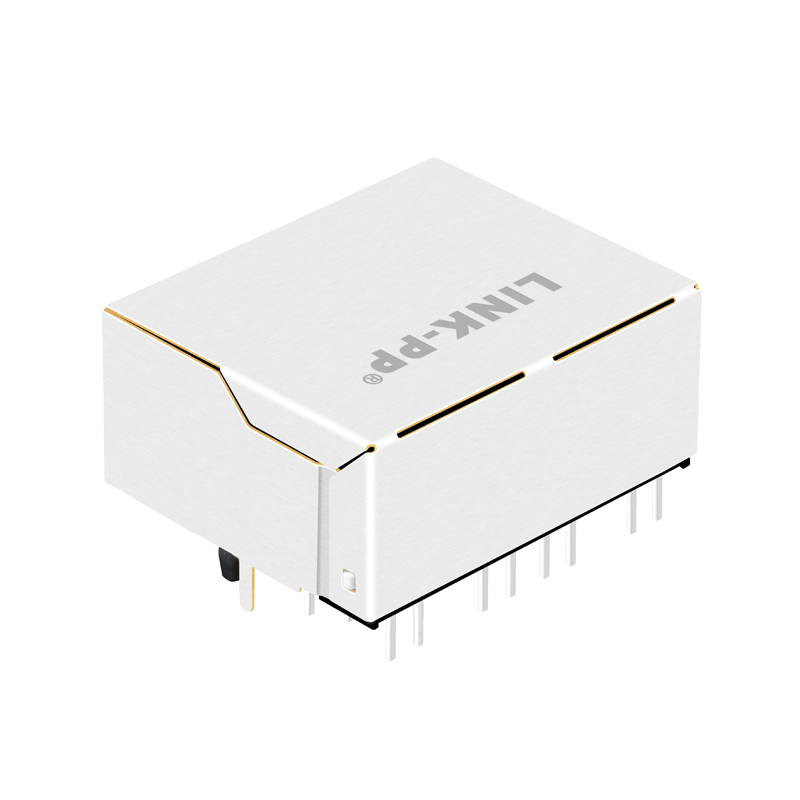

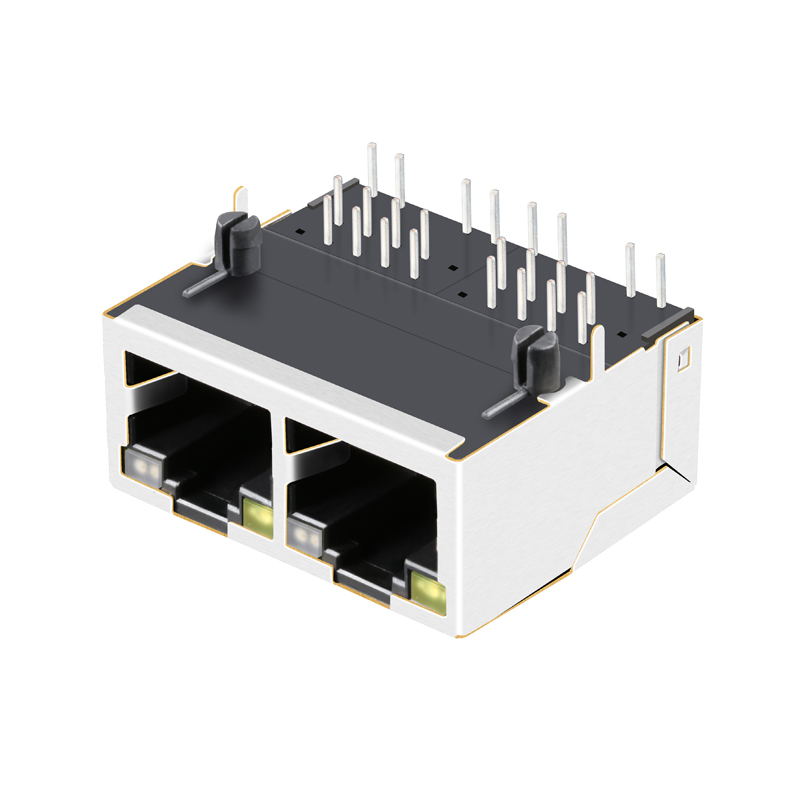

Shielded Magnetic Dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2

Send Inquiry

Product Description

Models: 1840538-3 | 6610128-1 | 1840538-4 | 1840538-2

Part Number	1840538-3 6610128-1 1840538-4 1840538-2
Application-LAN	ETHERNET (Non-POE)
AutoMDIX	YES
Bst Circuit	YES
Configuration RX/TX	T, C / T, C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores Per Port	6
Diodes	NO DIODES
LED Option	GREEN/GREEN
Latch Direction	UP
Number of Ports	1x2
PCB Material	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES (With lead in solder exemption)
Shield EMI Tabs	WITH
Shielding	Shielded
Speed	10/100 Base-T
Temperature Range	0 ~ 70℃
Turns Ratio RX/TX	1CT:1 / 1CT:1

Leader Supplier of Integrated RJ45 Connectors and Discrete Magnetic Transformers

Q1: What is the main application for the 1840538-3 series?

A: These connectors are designed specifically for 10/100 Base-T Ethernet LAN applications that do not require Power over Ethernet (Non-POE).

Q2: Does this RJ45 connector include integrated magnetics?

A: Yes, it is a shielded magnetic connector that includes internal components to filter signals and protect against EMI.

Q3: What are the plating options for the contact area?

A: The contact mating area is available with Gold plating options of 6u", 15u", or 30u" to ensure excellent conductivity and durability.

Q4: Is the product compliant with environmental standards?

A: Yes, the series is RoHS compliant (with lead in solder exemption) and meets REACH requirements.

Q5: What is the operating temperature range for these connectors?

A: These connectors are rated for stable operation within a temperature range of 0°C to 70°C.

Q6: Can I request custom designs for specific requirements?

A: Yes, we provide new design services to meet specific customer requirements and offer free samples for verification.
