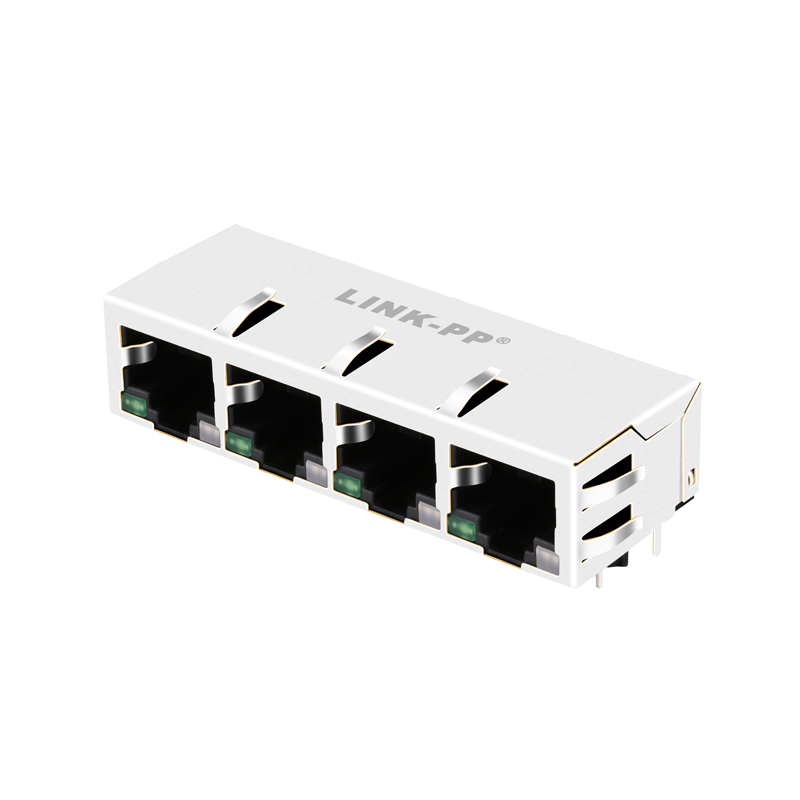

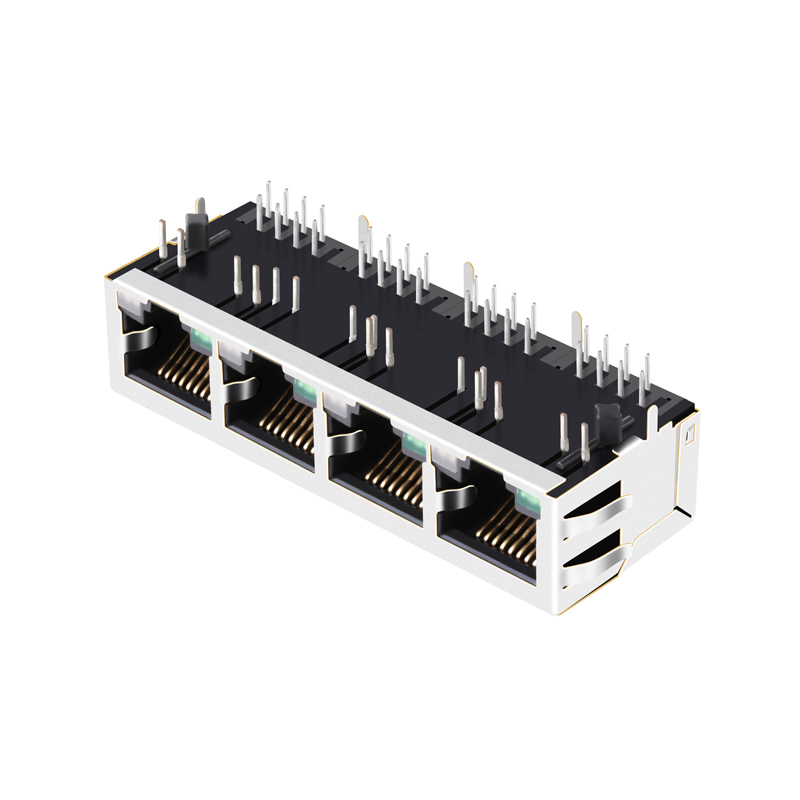

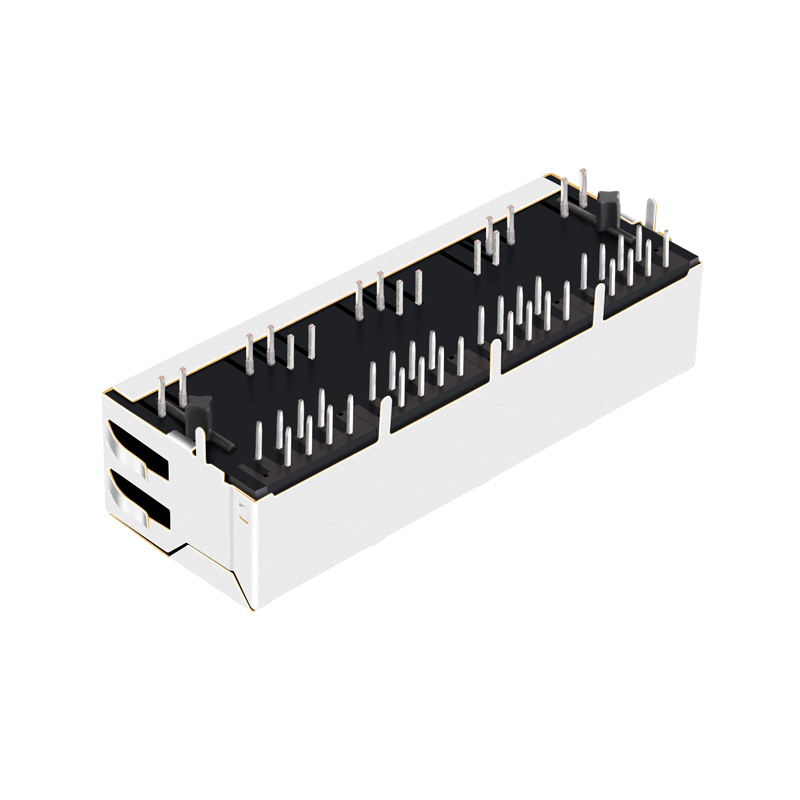

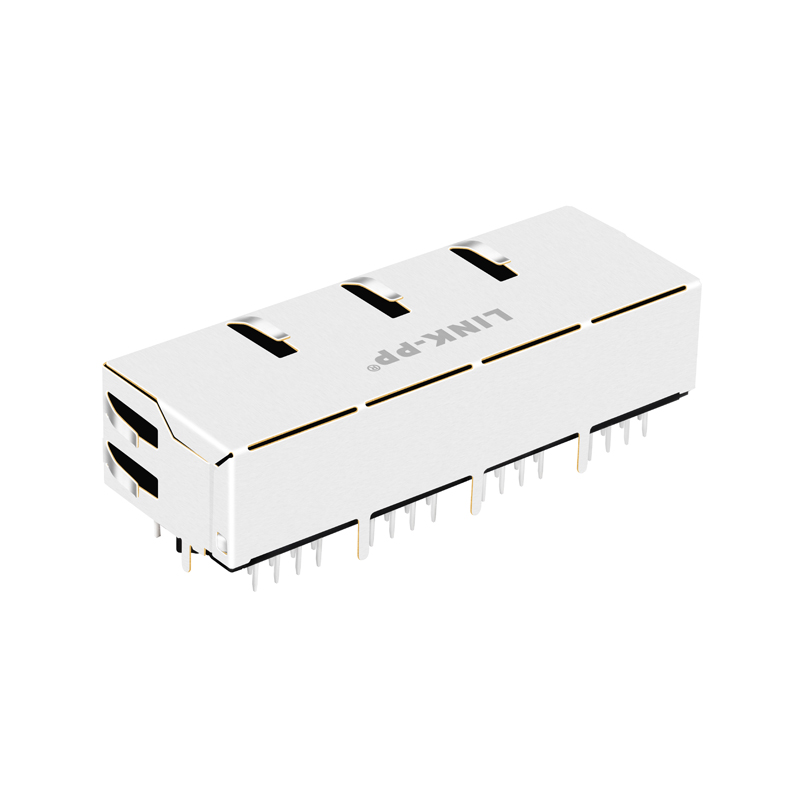

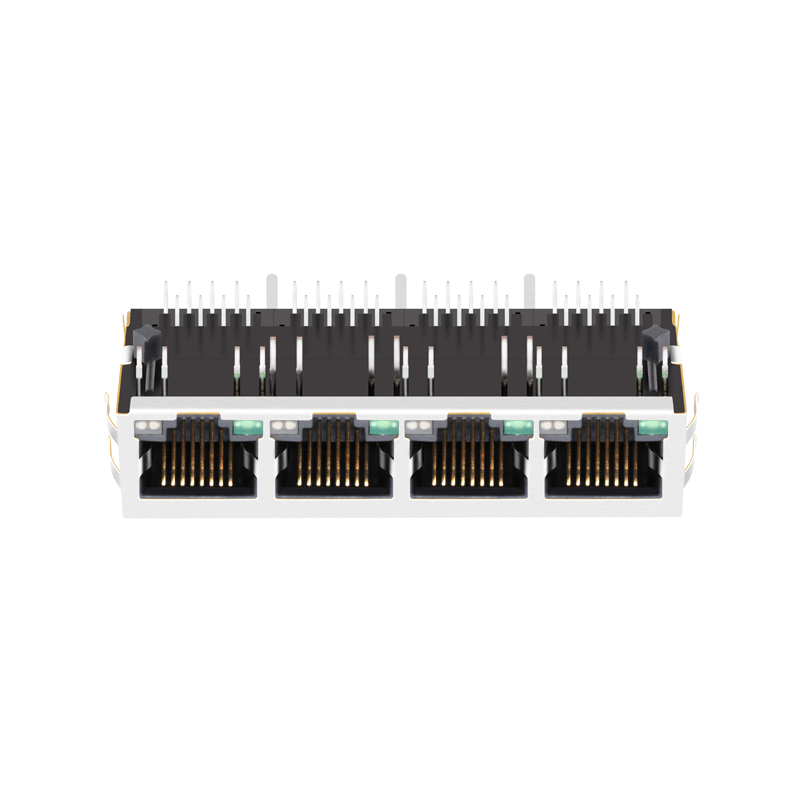

Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
| Part Number |
5-6610068-7 |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u"/50u" |
| Cores Per Port |
4 |
| Diodes |
NO DIDES41 |
| LED Option |
GREEN/GREEN&ORANGE |
| Latch |
UP |
| Number of Ports |
1X4 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
WITH OR WITHOUT |
| Speed |
1000 BASE-T |
| Temperature |
0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
Why Choose Us
Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
100% Guarantee Quality
- Manufactured Under Strict Controls.
- 100% Tested (Not Just Batch Tested)
- OEM Provider for 9 Years
- Successful Customer Partnerships: Samsung, Cisco, Siemens, and Intel…
- Quality Guarantee: 6 Years
Competitive Price And Service
- Competitive Pricing in the Industry
- Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- New Design Provision for Customer Requirements
- Significant Shipping Cost Discounts
Corporate Excellence
- Continuous Improvements In Quality, Delivery And Service
- Quality Performance From Every Employee
- Standard Is Defect-Free Products And Services
Frequently Asked Questions
Q1: What is the transmission speed of this RJ45 connector?
This connector supports Gigabit Ethernet speeds (1000 BASE-T) for high-speed data transmission.
Q2: What is the configuration of the ports and latch?
It features a 1X4 modular jack configuration with a "Tab Up" latch orientation.
Q3: What are the LED options available for this model?
The standard LED options are Green/Green & Orange, providing clear status indication for each port.
Q4: Can this connector operate in extreme temperatures?
Yes, it is designed to operate in ranges from 0 to 70°C, with industrial options supporting -40 to 85°C.
Q5: Is this product compliant with environmental standards?
Yes, the connector is RoHS compliant (RoHS-5) and meets Reach certification standards.
Q6: What type of PCB mounting does this connector use?
It uses a Through-Hole Technology (THT) solder mount with a side entry angle and T-Post retaining.
