Home > Multi Port RJ45 Connector > JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack

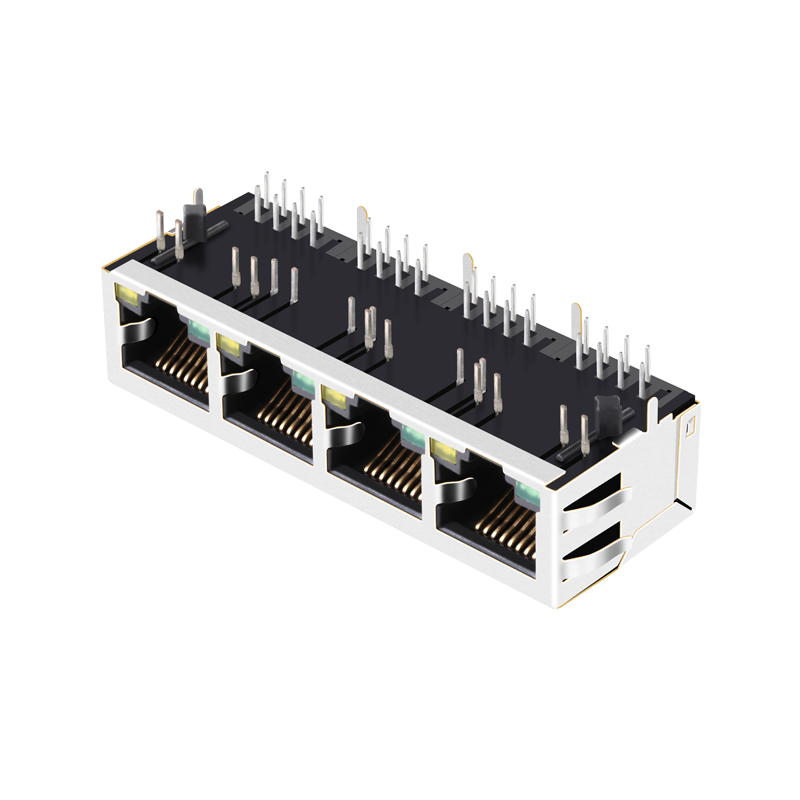

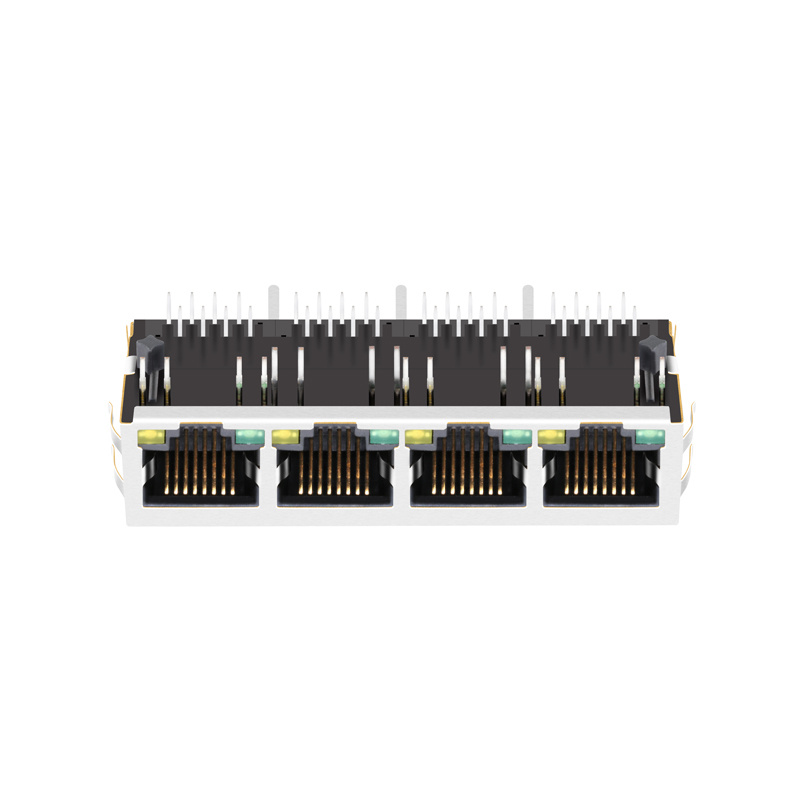

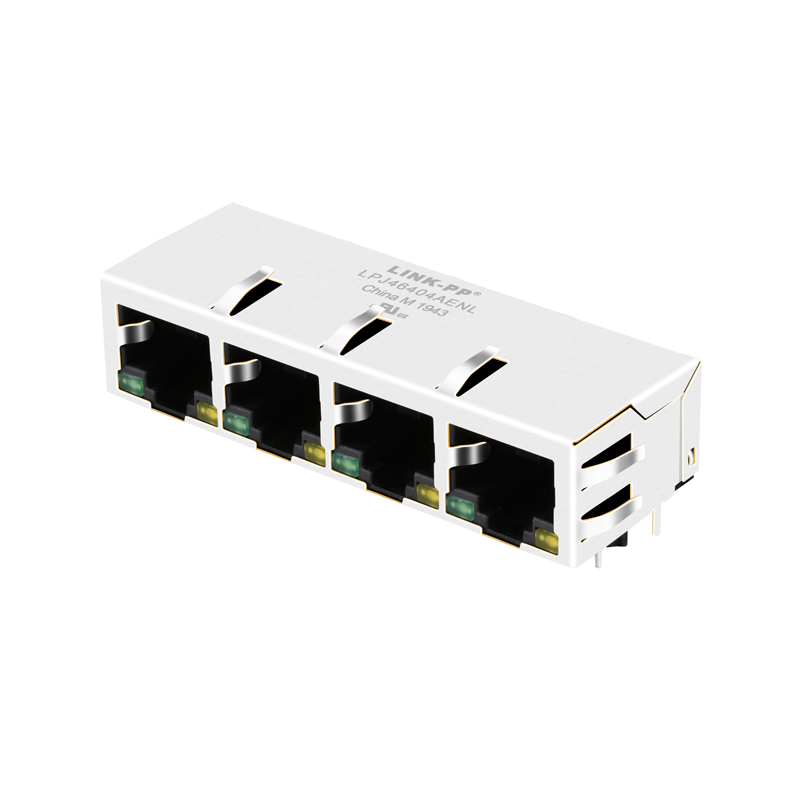

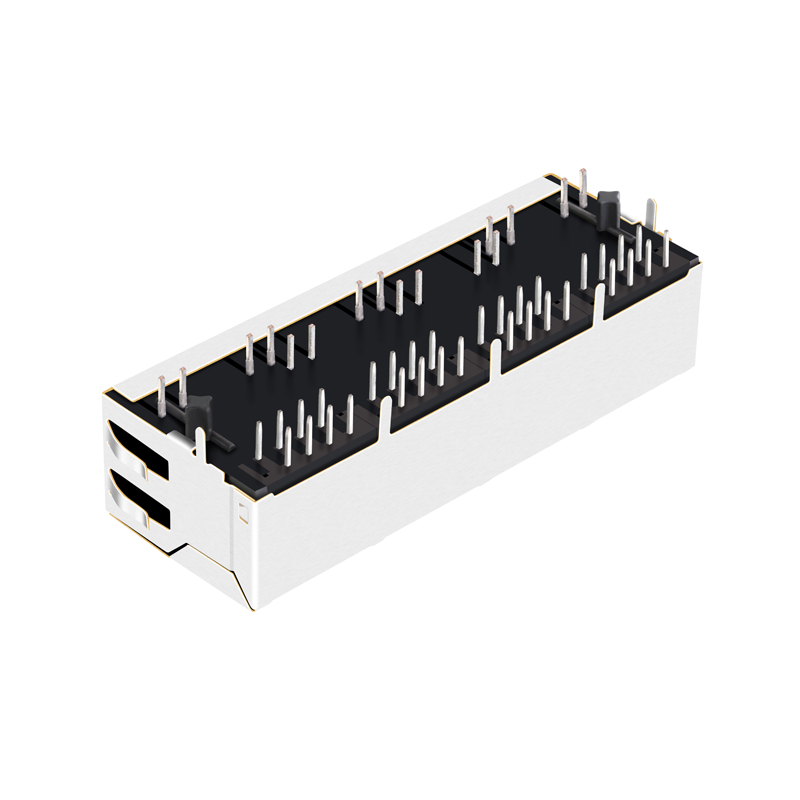

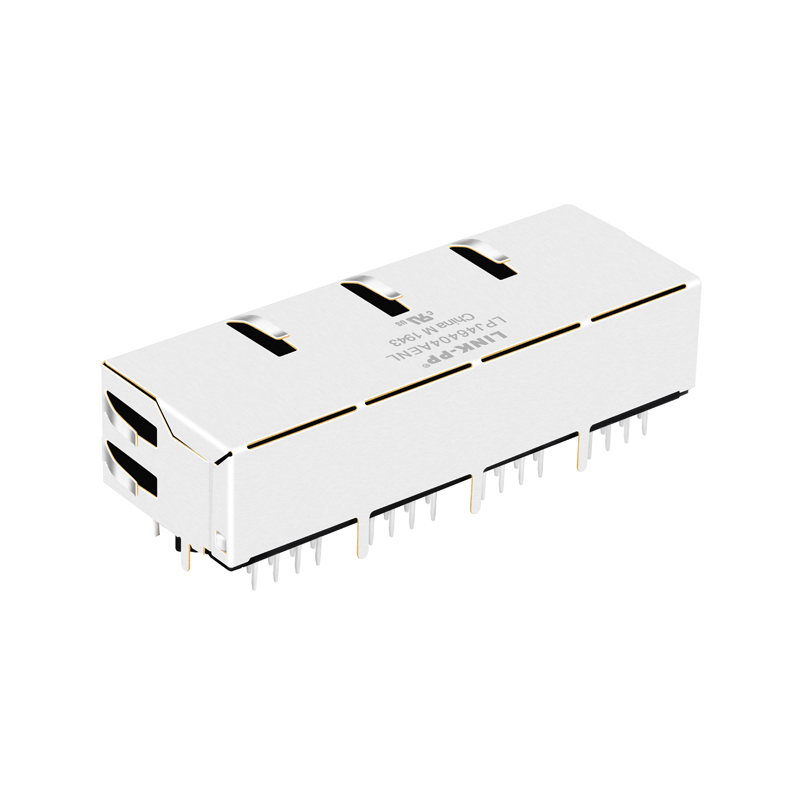

JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
1 / 5
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack

JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack

Send Inquiry

Product Description

Product View 1
Product View 2
📋 Specification
ItemValue
Part NumberLPJ46404AENL
Cross ReferenceJXD0-4005NL / JX80-0033NL
Part StatusActive
Connector TypeRJ45
Applications-LanEthernet (Non-PoE)
Speed10/100 Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorGreen/Yellow Led
Number of Cores per Jack4
ShieldingShielded, Emi Finger
Number of Ports1x4 Port
FeaturesBoard Guide
Tab DirectionDown
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature-40°C ~ 85°C
Technical Drawing 1
Technical Drawing 2
Technical Drawing 3
Dimensions 1
Dimensions 2
Internal Schematic
🏢 Production Capability & Solutions

We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE, and UL. Our facility owns advanced manufacturing facilities and test equipment imported from abroad. We provide professional complete solutions for magnetic components and strong technical support.

Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems.

Main Product Lines:
  • 10/100/1000M/2.5G/5G/10G LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M/2.5G/5G/10G magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Certification
Manufacturing
Quality Control
❓ Frequently Asked Questions
Are you a manufacturer or trade company?
We are a manufacturer specialized in RJ45 connectors and LAN Transformers for more than 23 years.
Can I get some samples for testing?
Yes, 3-5 pcs of free samples are available for your testing. Small batch orders are also acceptable.
Is OEM service available for these connectors?
Yes, we have extensive experience in turning designs into real products and can laser print your brand directly on the components.
What is the standard lead time for delivery?
Our professional production team ensures high efficiency; usually, orders can be shipped within 30 days.
What is the operating temperature range for this RJ45?
This specific model supports an industrial operating temperature range from -40°C to +85°C.
What applications are these components suitable for?
They are designed for networking equipment including Hubs, Switches, Routers, and Mainboards supporting 10/100 Base-T speeds.
