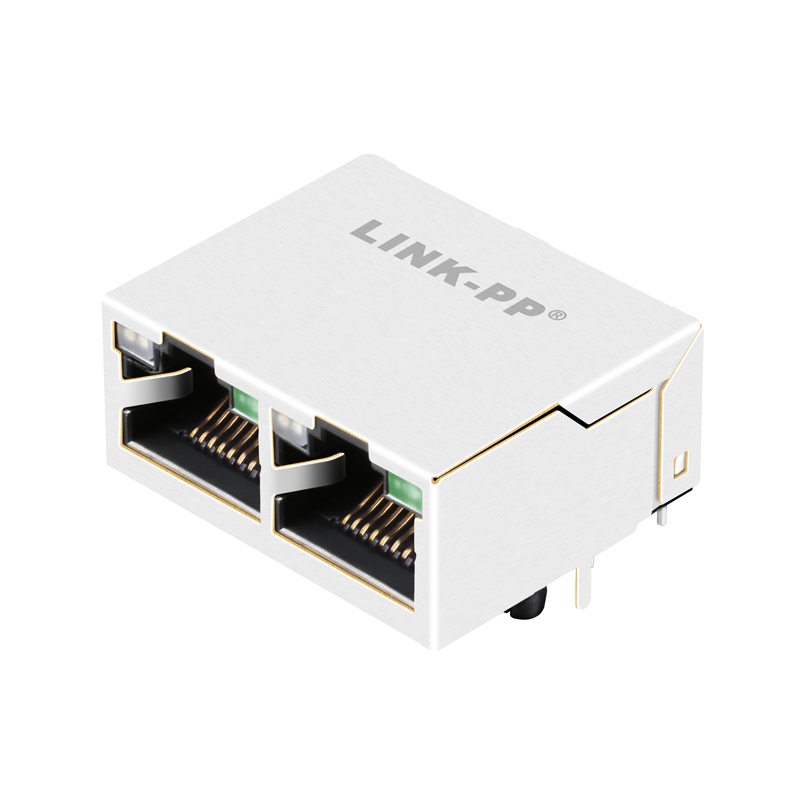

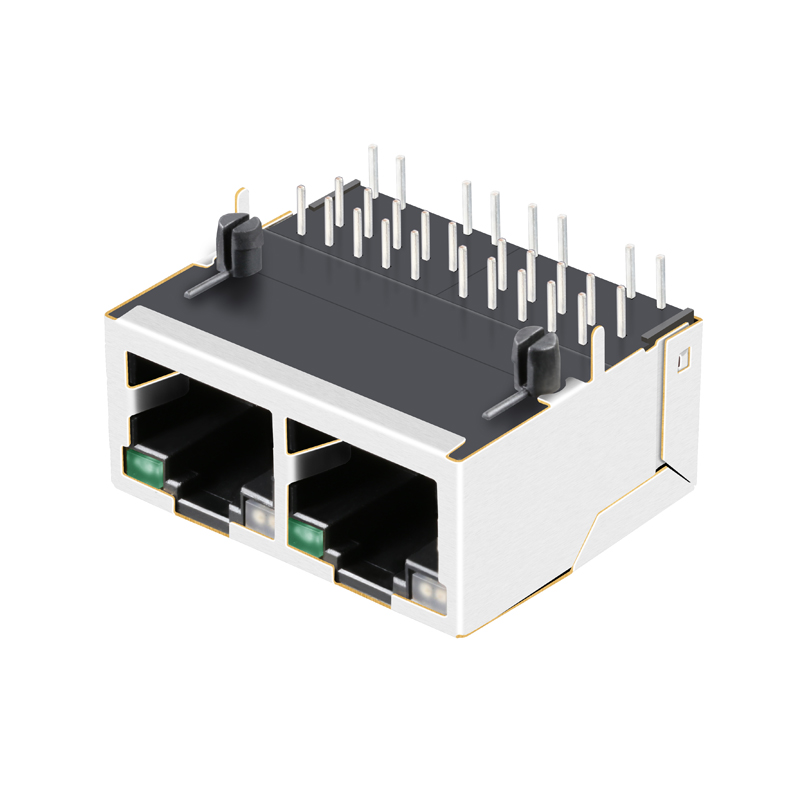

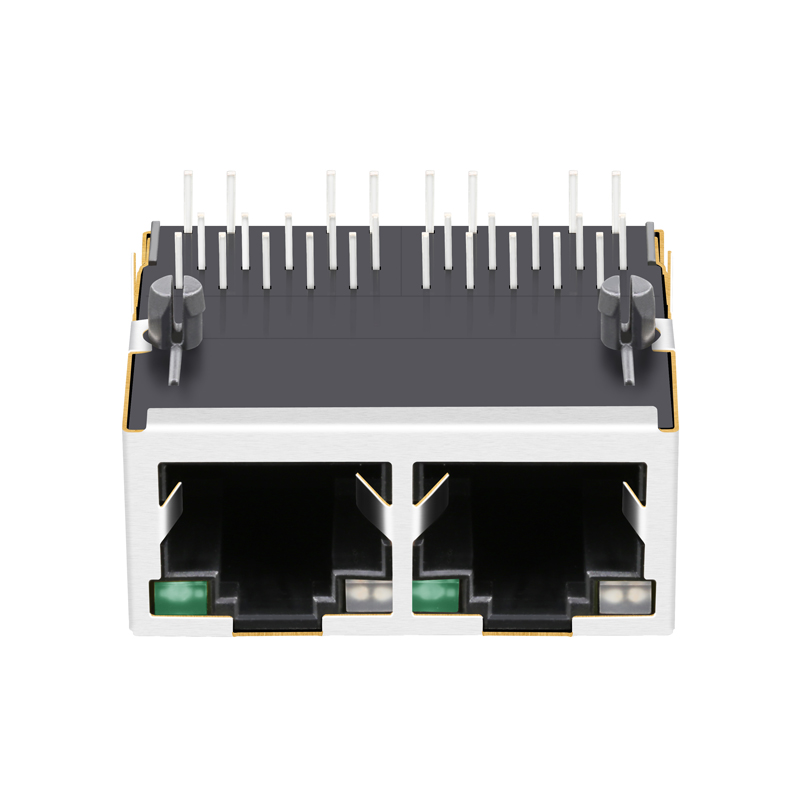

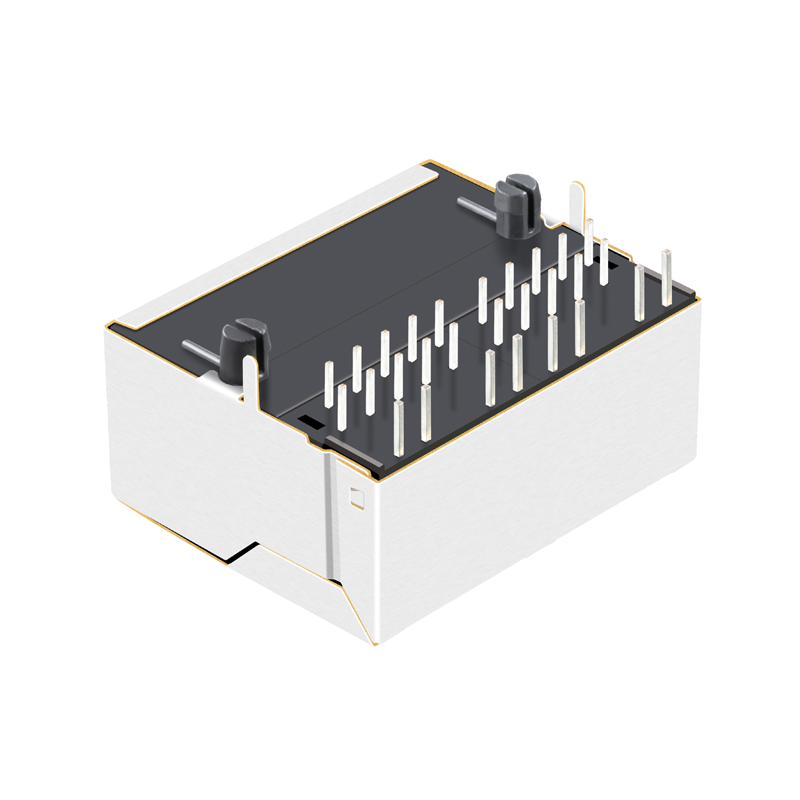

10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1

Send Inquiry

Product Description

Part Number	5-6610197-1
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"/50u"
Cores Per Port	4
Diodes	NO DIODES
LED Option	GREEN/YELLOW
Latch	UP
Number of Ports	1X2
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITH OR WITHOUT
Speed	10/100 BASE-T
Temperature	0 TO 70°C / -40 TO 85°C
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1

Why Choose Our Connectors

Professional Certification

100% Quality Guarantee

Competitive Price & Service

What is the transmission speed of this RJ45 connector?

This connector supports 10/100 BASE-T Ethernet speeds, making it ideal for standard industrial and networking applications.

Does this 1X2 Harmonica Jack include LED indicators?

Yes, it features integrated Green and Yellow LEDs for status signaling.

What are the operating temperature ranges?

The connector is designed to operate in environments ranging from 0 to 70°C, with industrial options supporting -40 to 85°C.

Is this part RoHS compliant?

Yes, it is RoHS-5 compliant with lead-in-solder exemption, meeting essential environmental safety standards.

What is the contact plating material?

The contact mating area features high-quality Gold plating, with thickness options of 6u", 15u", 30u", or 50u" available.

Can I use this for THT soldering applications?

Absolutely. This connector uses THT (Through-Hole Technology) solder pins for secure PCB mounting.
