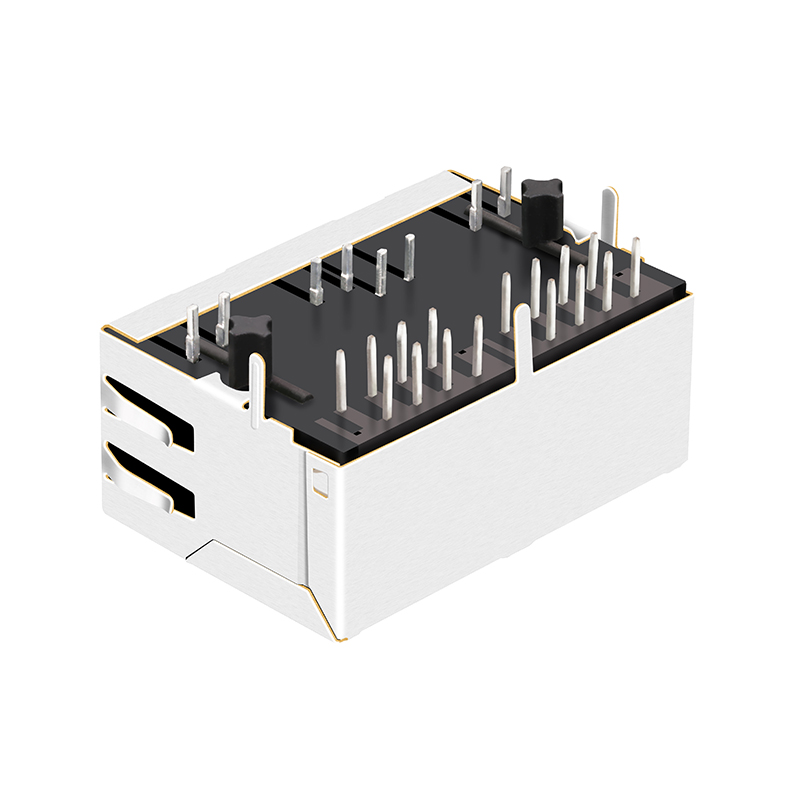

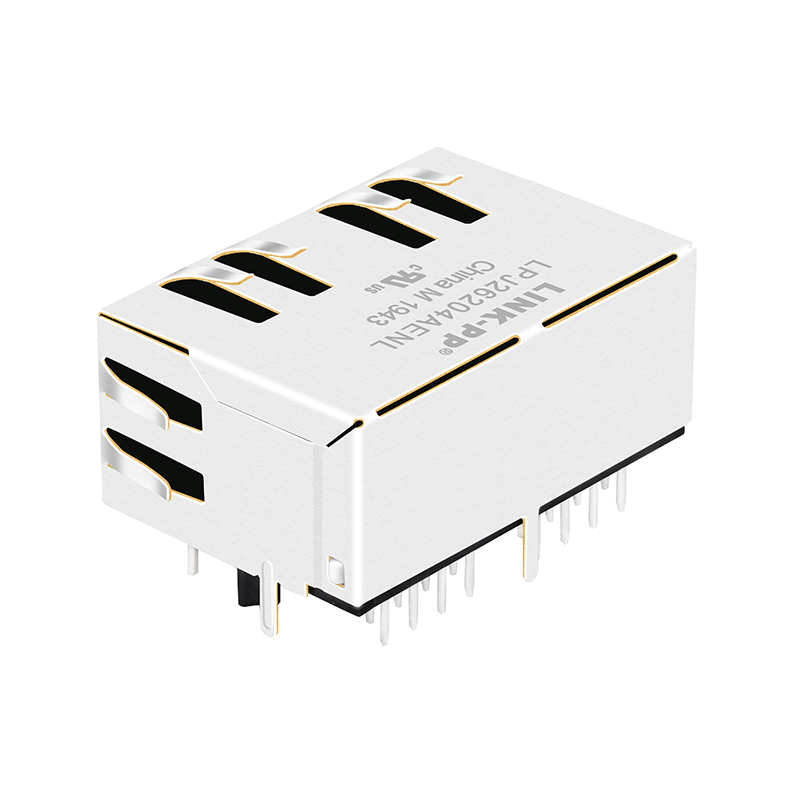

LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
1 / 5
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector

LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector

Send Inquiry

Product Description

📦 Product Gallery

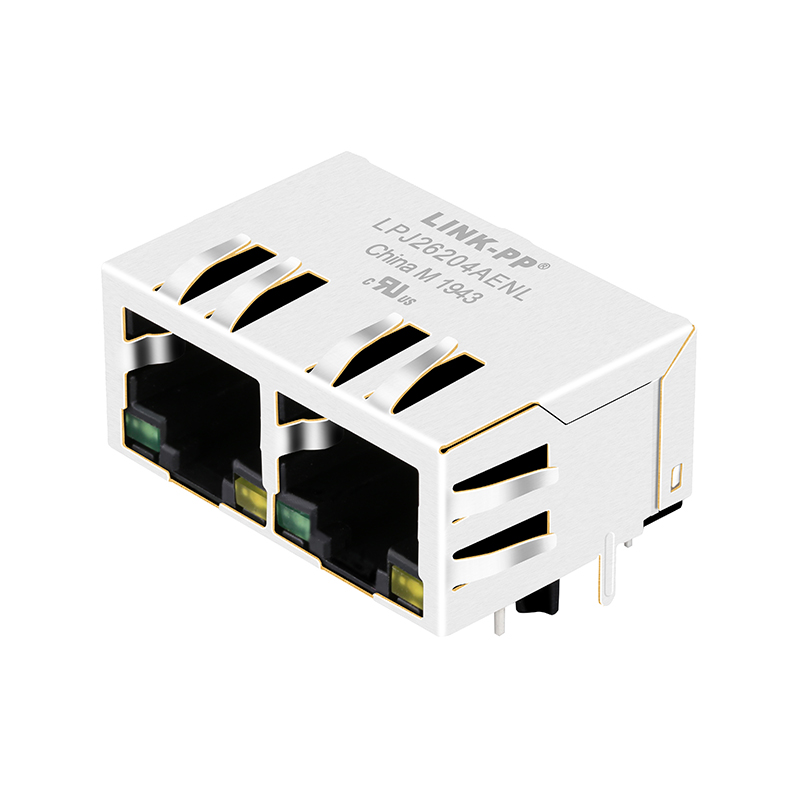

Product View 1

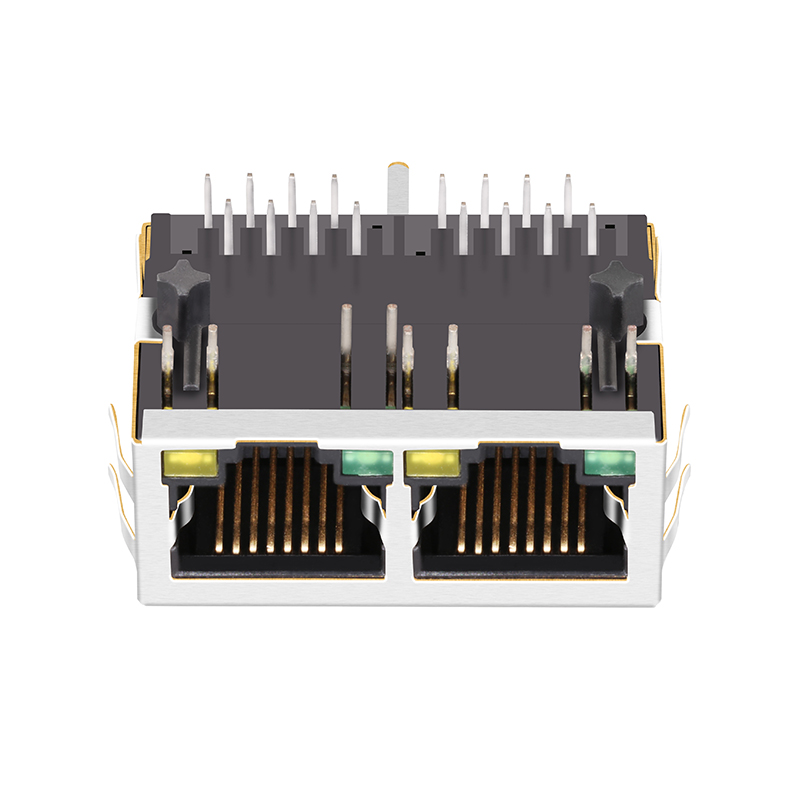

Product View 2

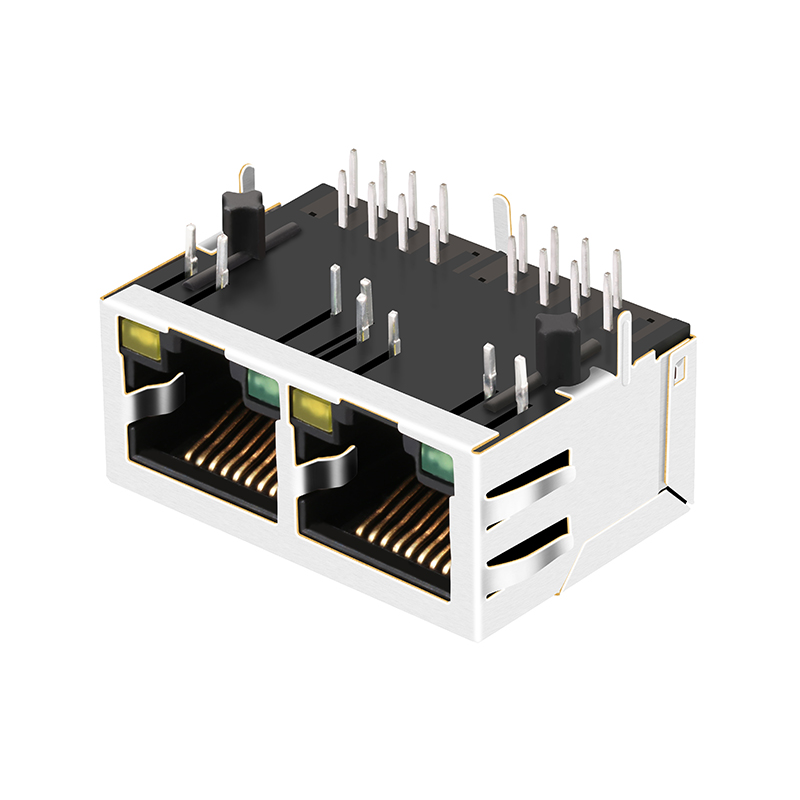

Product View 3
📋 Technical Specifications
Model NumberLPJ26204AENL
Part StatusActive
Connector TypeRJ45
Applications-Lan10/100 Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorGreen / Yellow
Number of Cores per Jack4
ShieldingShielded, EMI Finger
Number of Ports1x2 Port
FeaturesBoard Guide
Tab DirectionDown
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature0°C ~ 70°C
🚚 Packing & Delivery
  • Package Type: Tray
  • Carton Size: 37 * 30 * 30cm
  • Gross Weight: 9kg / carton
  • Quantity: 600pcs / carton (SPQ: 30pcs)
  • Unit Weight: 0.015kg / pcs
Packing Details
⚙️ Applications & Features

10 / 100 / 1000 / 2.5G / 5G / 10G Base-T 1xN Port RJ45 Connector

Suitable for a wide range of networking environments and industrial requirements:

  • Industrial temperatures from –40 °C up to +85 °C
  • Compatible with Industrial Ethernet systems like EtherCAT or Profinet
  • Compliant with major Ethernet ICs (Microchip, Broadcom, Marvell)
  • Ideal for Hubs, Routers, Switches, IP cameras, and IoT applications

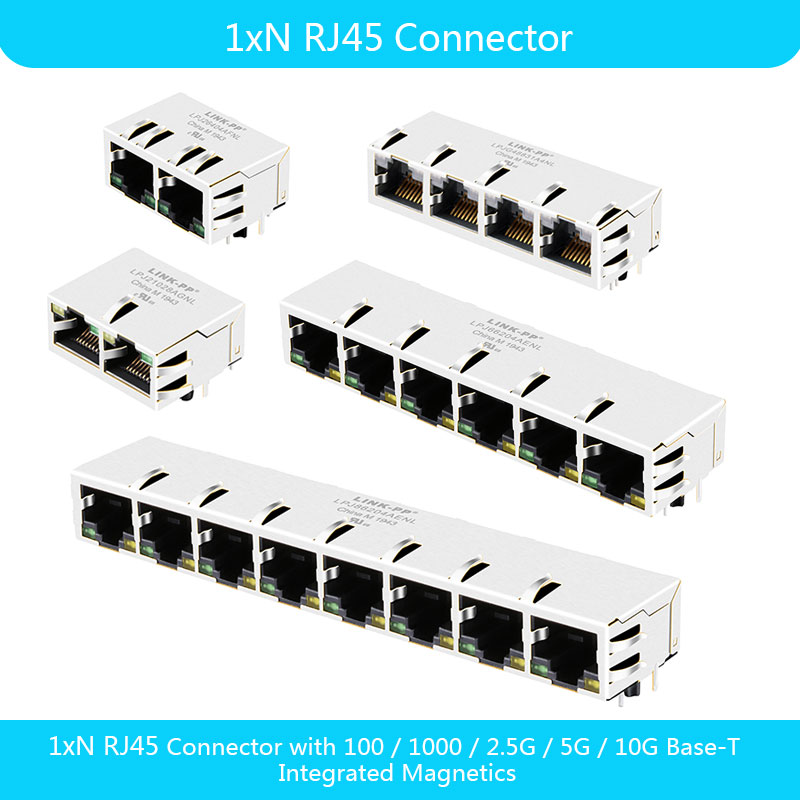

Application Scenario
🏭 Production & Quality Control
Production Facility 1
Production Facility 2
Quality Check 1
Quality Check 2
Equipment 1
Equipment 2
Certification
❓ Frequently Asked Questions
1. What kind of products do you specialize in?
We specialize in magnetic telecom and networking components, including RJ45 Magnetic connectors, LAN transformers, Modular Jacks, and RJ11 Connectors.
2. How is product quality guaranteed?
We maintain strict quality standards with a pre-production sample before mass production and a final inspection before every shipment to ensure performance and reliability.
3. What are the typical applications for your RJ45 connectors?
Our products are widely used in networking and communication equipment such as Hubs, Switches, Routers, PC Mainboards, IP Phones, and various IoT applications.
4. Are your products compliant with international standards?
Yes, our manufacturing processes and products are certificated by ISO9001, RoHS, REACH, CE, and UL, ensuring they meet global safety and environmental requirements.
5. What payment and delivery terms do you support?
We accept various delivery terms including FOB, CFR, CIF, EXW, and DDP. Payment can be made via T/T, L/C, Credit Card, PayPal, and Western Union in multiple currencies like USD, EUR, and HKD.
6. Can you provide professional technical support for components?
Yes, we provide professional complete solutions for magnetic components along with strong technical support to help integrate our products into your specific hardware designs.
