Home > Multi Port RJ45 Connector > HR911205C 10 / 100 Base-T Single Port Ethernet RJ45 Female Connector

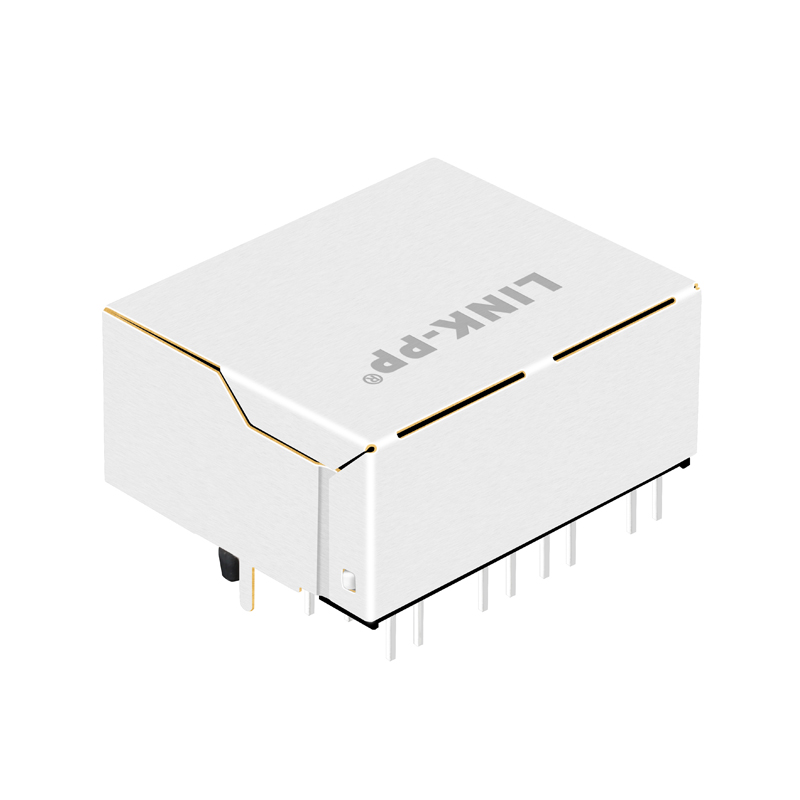

HR911205C 10 / 100 Base-T Single Port Ethernet RJ45 Female Connector
HR911205C 10 / 100 Base-T Single Port Ethernet RJ45 Female Connector
HR911205C 10 / 100 Base-T Single Port Ethernet RJ45 Female Connector
HR911205C 10 / 100 Base-T Single Port Ethernet RJ45 Female Connector
HR911205C 10 / 100 Base-T Single Port Ethernet RJ45 Female Connector
1 / 5
HR911205C 10 / 100 Base-T Single Port Ethernet RJ45 Female Connector
HR911205C 10 / 100 Base-T Single Port Ethernet RJ45 Female Connector
HR911205C 10 / 100 Base-T Single Port Ethernet RJ45 Female Connector
HR911205C 10 / 100 Base-T Single Port Ethernet RJ45 Female Connector
HR911205C 10 / 100 Base-T Single Port Ethernet RJ45 Female Connector

HR911205C 10 / 100 Base-T Single Port Ethernet RJ45 Female Connector

Send Inquiry

Product Description

HR911205C 10 / 100 Base-T Single Port Ethernet RJ45 Female Connector
Products Description
RJ45 Connector Overview
ItemRJ45 Female Connector
Part NumberLPJ26204AENL
Compatible WithHR911205C
Part StatusActive
Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet(NoN PoE)
Number of Ports1x2 Port
Speed10/100/1000 Base-T
LatchDown/Up
Cores per Port4
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithout/With
LED OptionGreen/Yellow
PCBFR4
PCB Retaining PostT POST
Temperature0℃ TO 70℃ / -40℃ TO 85℃
Bst CircuitYes
AutomDXYES
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C
Technical Drawing
