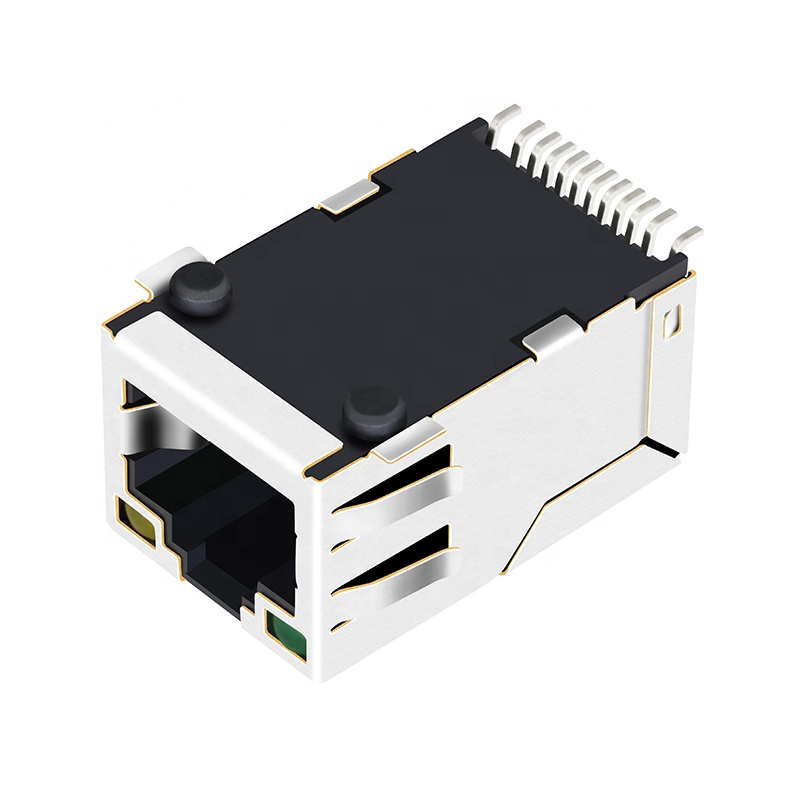

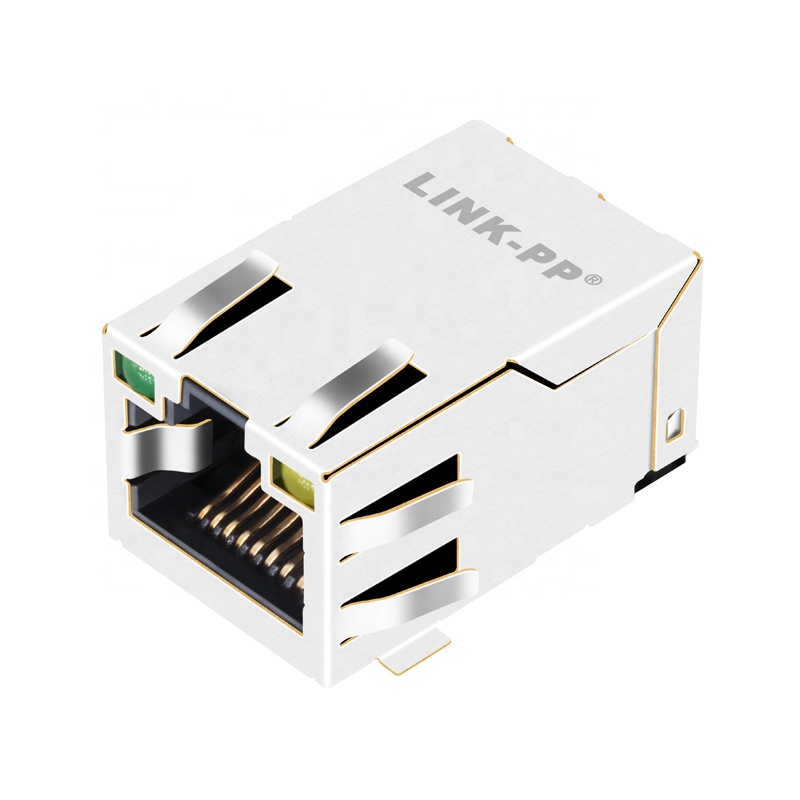

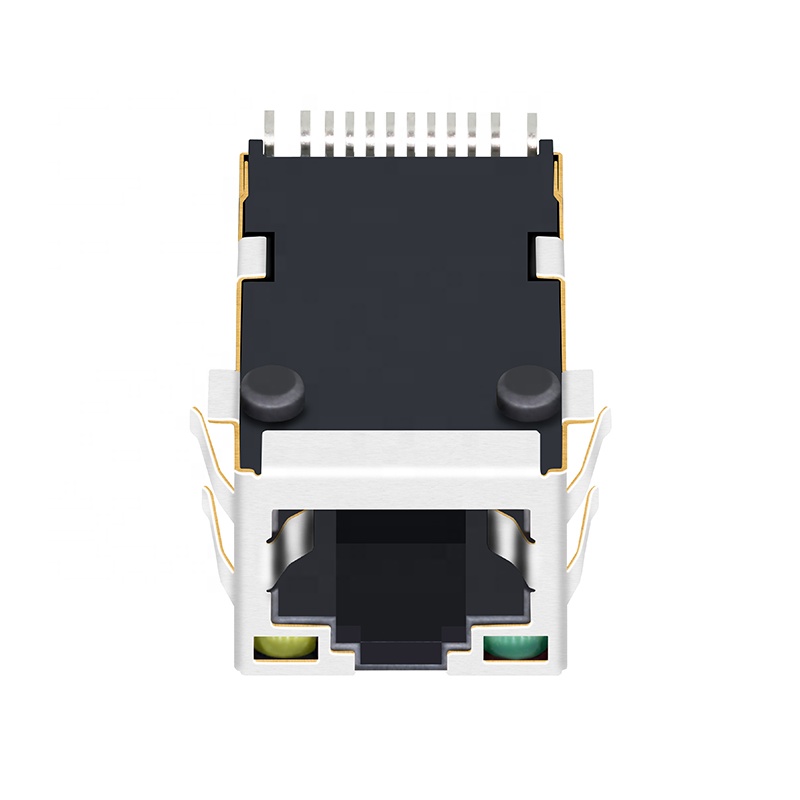

Tab up Surface Mount RJ45 Magjack SMT RJ45 Female Connector

Product Description

Product Categories

8-Pin Cat7 RJ45 Modular Jack With Hot Products

📋 Products Description
ItemRJ45 Female Connector
Part StatusActive
Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet(NoN PoE)
Number of Ports1x1 Port
Speed10/100/1000 Base-T
LatchDown/Up
Cores per Port4
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithout/With
LED OptionGreen/Yellow
PCBFR4
PCB Retaining PostT POST
Temperature0℃ TO 70℃
Bst CircuitYes
AutomDXYES
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C
RJ45 Detail 1
RJ45 Detail 2
Product View 1
Product View 2
Product View 3
🔍 Explore More Products
Product Grid
Contact Banner
📐 Technical Specifications & Quality
Drawing 1
Drawing 2
Certificate 1
Certificate 2
Facility 1
Facility 2
🏢 Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.

As a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, we serve more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Factory View
Production Line
FAQ
1 Are you factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2 Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, though shipping fees should be covered by the requester.
3 What is your delivery time?
Items are ready to ship for stock; mass production typically takes 15-30 days.
4 What after-service can you offer?
We provide a one-year guarantee period and offer online technical support 24 hours a day.
5 Can you accept OEM/ODM orders?
Yes, we welcome OEM/ODM inquiries for detailed discussion on your specific requirements.
6 What is your advantage?
With over 19 years of production experience, we have established long-term partnerships with leading industry players like Intel and Jabil.
