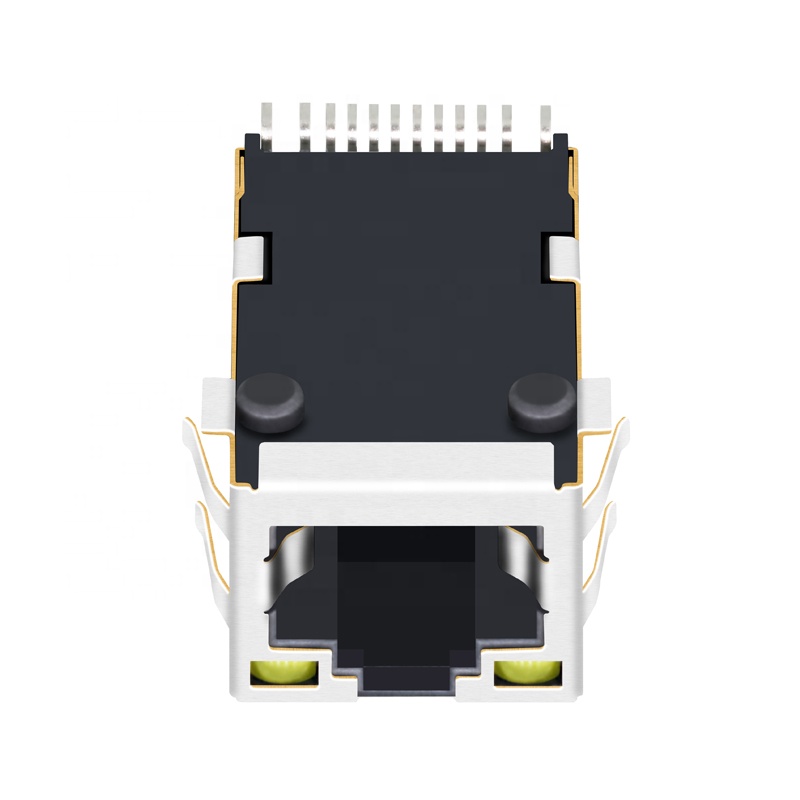

Single Port SMT Modular Magnetics Jack RJ45 Smb Connector

1 / 5

Single Port SMT Modular Magnetics Jack RJ45 Smb Connector

Send Inquiry

Product Description

Single Port SMT Modular Magnetics Jack RJ45 Smd Connector

Products Description

Item	RJ45 Female Connector
Part Status	Active
Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port
Speed	10/100/1000 Base-T
Latch	Up
Cores per Port	4
Orientation	90° Angle (Right)
PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	Without
LED Option	Green/Yellow
PCB	FR4
PCB Retaining Post	T POST
Temperature	0℃ TO 70℃
Bst Circuit	Yes
AutomDX	YES
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT
Configuration RX/TX	T,C

Explore Our Comprehensive Range of Networking Solutions

Technical Specifications & Quality

Production Excellence

Company Profile

Established in 1997, our company is a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier to OEMs, contract manufacturers, and CEMs, serving more than 10,000+ customers in over 200 countries.

By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a world leader in Ethernet RJ45 connectors and LAN transformer solutions.

Frequently Asked Questions

Are you a factory or a trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

Can I get a sample before mass production?

Yes, we can offer free samples to test quality, though shipping costs are typically covered by the customer.

What is your typical delivery time?

Stock items are ready to ship immediately, while mass production typically takes between 15 to 30 days.

What kind of after-sales service do you offer?

We provide a one-year guarantee period along with 24-hour online technical support to assist with any inquiries.

Do you accept OEM/ODM orders?

Yes, we fully support OEM and ODM orders. Please contact us to discuss your specific technical requirements.

What are your core advantages?

With over 19 years of professional production experience, we have established long-term partnerships with major global industry leaders, ensuring high reliability and quality.
