Product Description
Characteristics

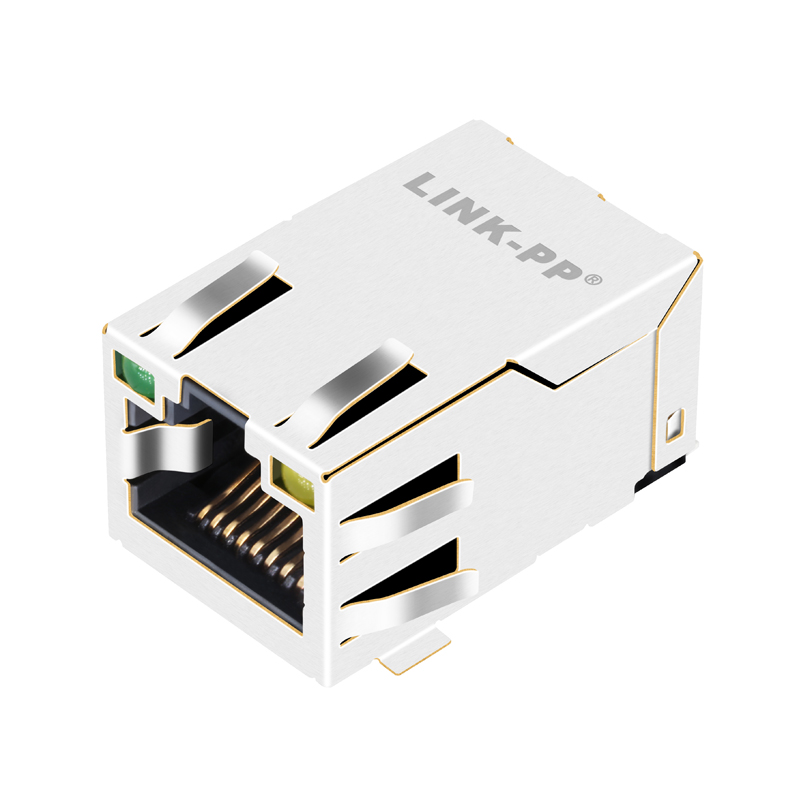

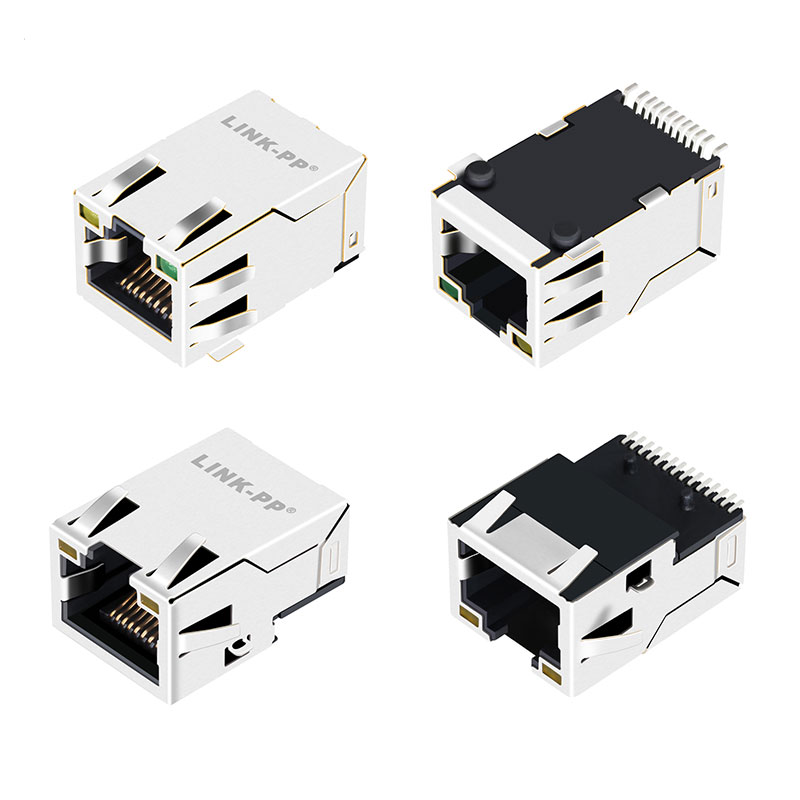

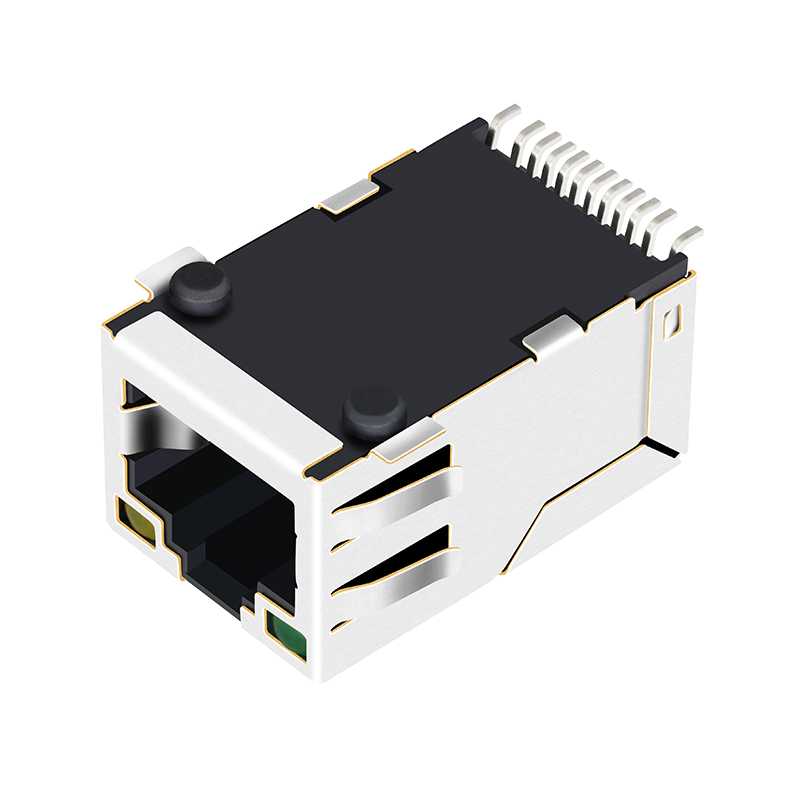

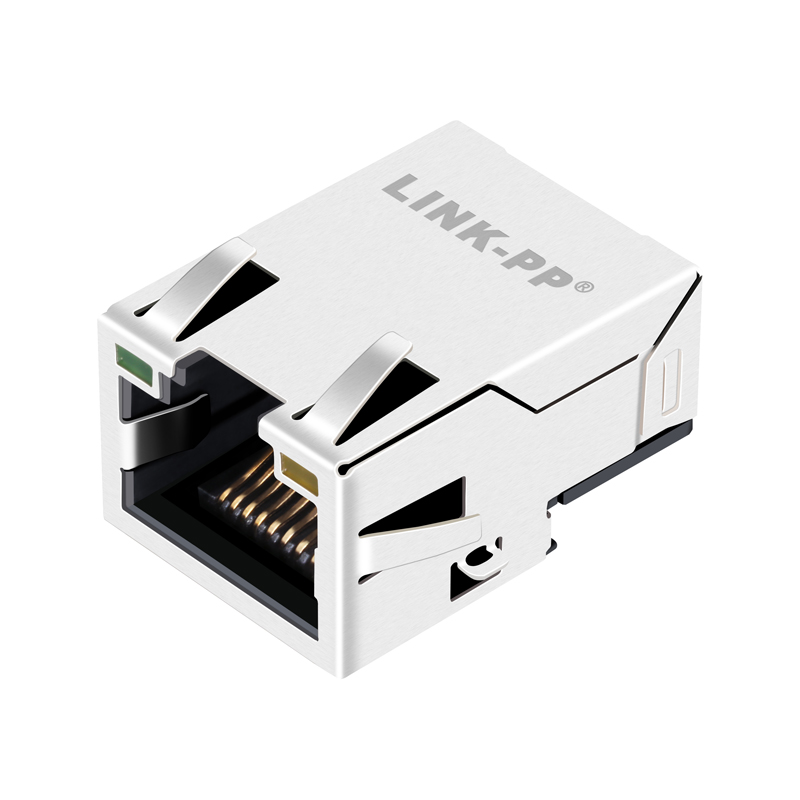

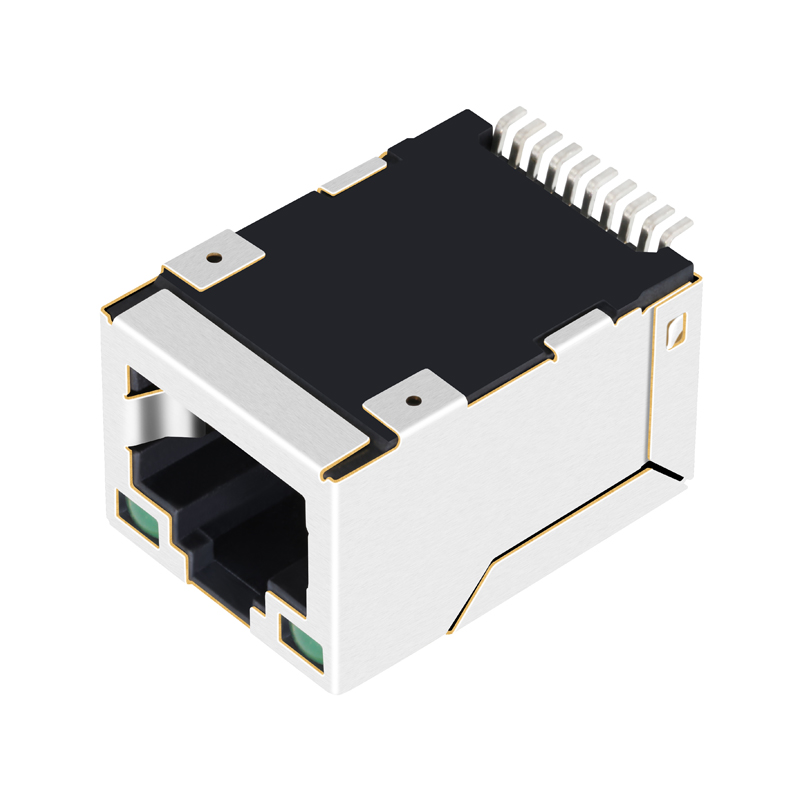

RJ45 Connector with integrated transformer / common mode choke
Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s
Available in SMT, THT and THT with USB
Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt
HPLE products: Improved Common Mode Rejection due to additional NiZn cores
Specification
| Item |
Value |

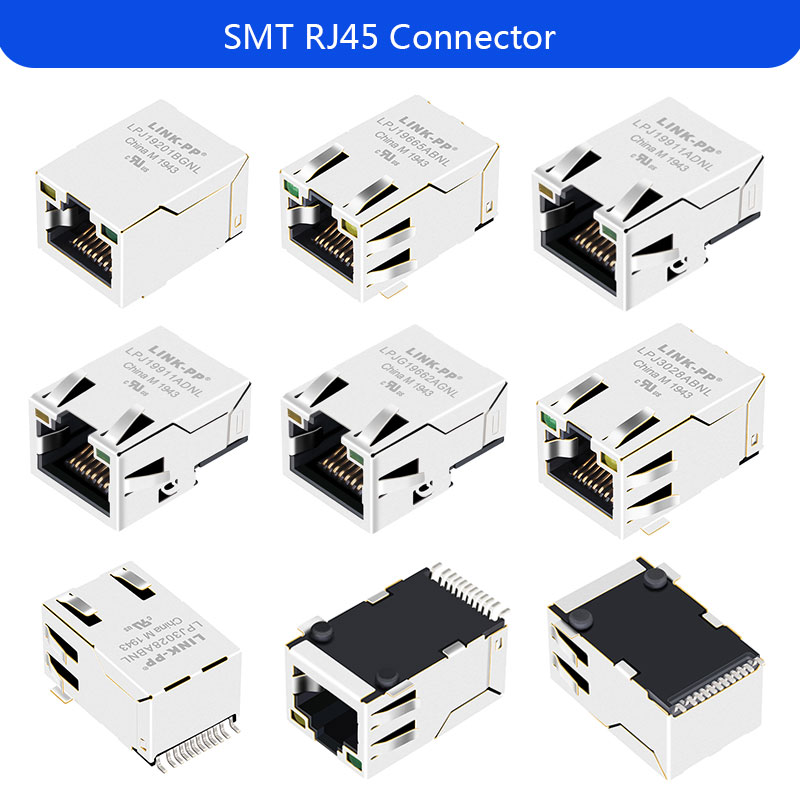

| Model Number | SMT RJ45 Connector |
| Part Status | Active |
| Connector Type | RJ45 |
| Applications-Lan | Ethernet(PoE/Non_PoE) |
| Speed | 10/100/1000 Base-T, AutoMDIX |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Contact Finish Thickness | 6.00µin (0.152µm) |
| LED Color | Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow |
| Number of Cores per Jack | 4/6/8/12 |
| Shielding | Shielded, Emi Finger |
| Number of Ports | Single Port |
| Features | Board Guide |
| Tab Direction | Down/Up |
| Contact Finish | Gold |
| Configuration RX/TX | T,C |
| Turns Ratio RX/TX | 1CT:1CT |
| Operating Temperature | 0°C ~ 70°C/-40°C ~ +85°C |
Packing & Delivery
Package Details: Tray Packing
- 📦 Carton size: 34.5*34.5*27cm
- ⚖️ G.W./carton: 6.9kg
- 🔢 Qty/carton: 550pcs
- 📦 SPQ: 110pcs
- ⚖️ N.W/pcs: 0.013kg
Professional Manufacturing & Facilities
Frequently Asked Questions
1. What transmission speeds are supported by these RJ45 connectors?
Our connectors support a wide range of speeds including 10/100/1000 Base-T and can reach up to 10 Gbit/s, ensuring high-speed data transmission for various network requirements.
2. Are these connectors compatible with Power over Ethernet (PoE)?
Yes, they are designed to handle Power over Ethernet up to 50 Watts and are compliant with IEEE 802.3af, IEEE 802.3at, and upcoming IEEE 802.3bt standards.
3. What types of mounting and orientations are available?
We offer SMT, THT, and THT with USB versions. The standard orientation is a 90° Right Angle with Through Hole mounting, featuring options for both Up and Down tab directions.
4. How do you guarantee the quality of the components?
We follow strict quality control protocols, including a pre-production sample before mass production and a final comprehensive inspection before shipment to ensure performance and reliability.
5. What is the operating temperature range for these products?
The connectors are built to perform in diverse environments, with an operating temperature range of 0°C to 70°C for standard use, and industrial grade options supporting -40°C to +85°C.
6. What international standards and certifications do the products meet?
Our products are manufactured in compliance with global standards including UL, REACH, CE, and ISO9001:2008 certifications, ensuring safety and environmental compliance.
