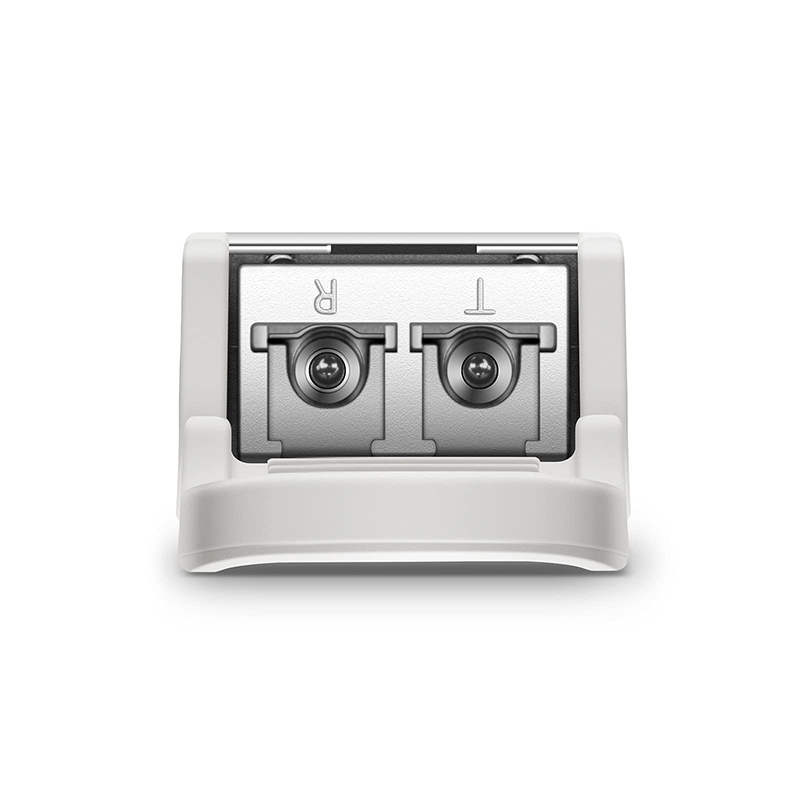

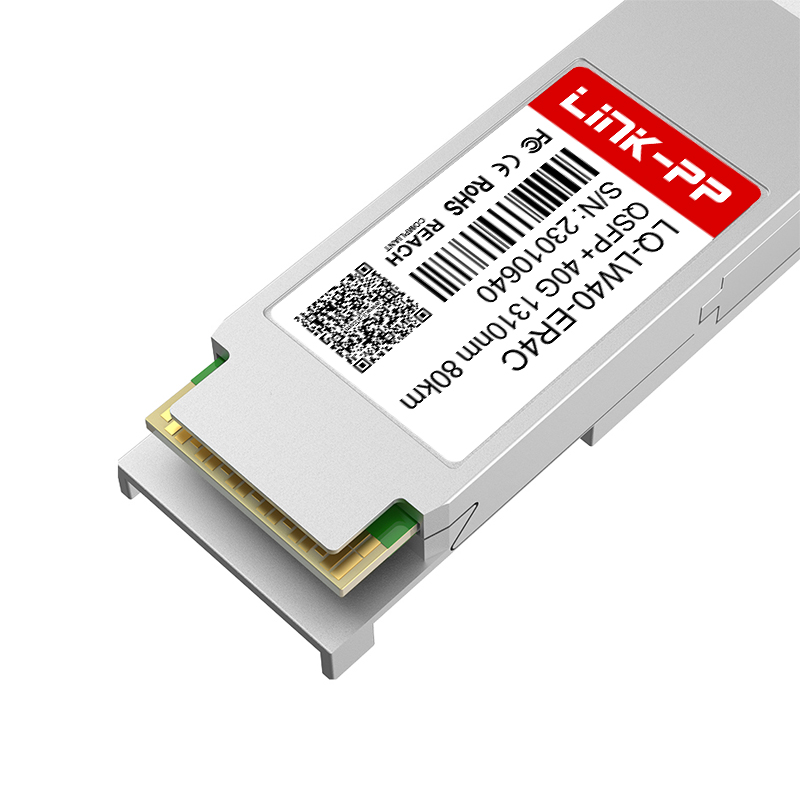

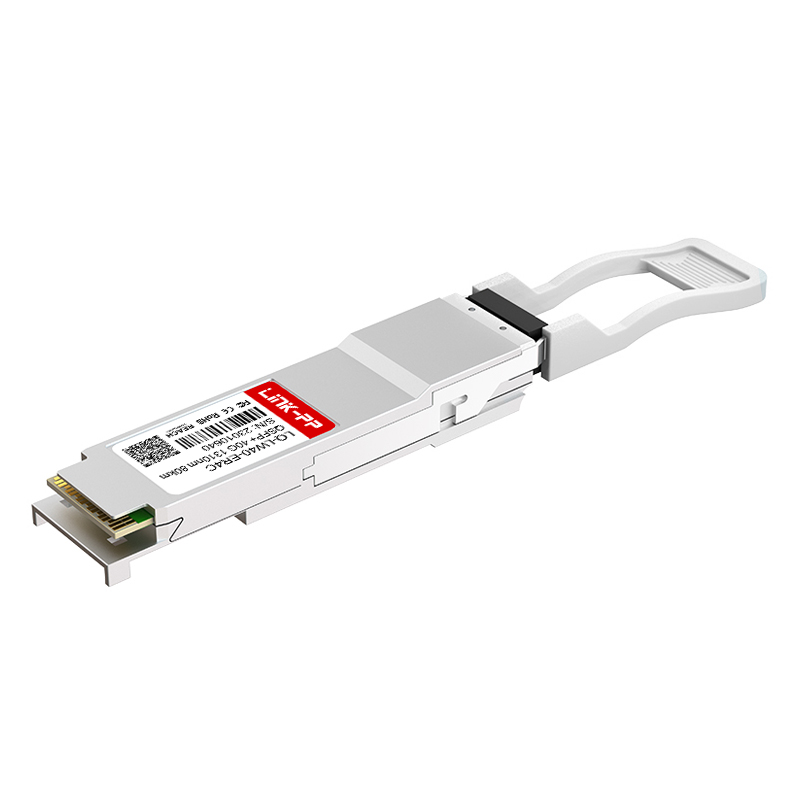

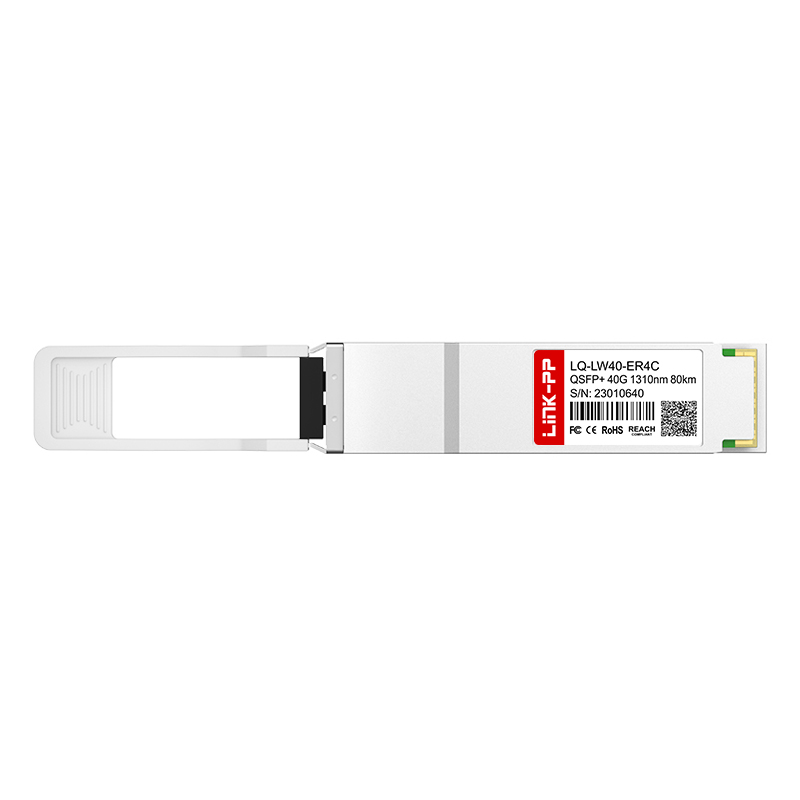

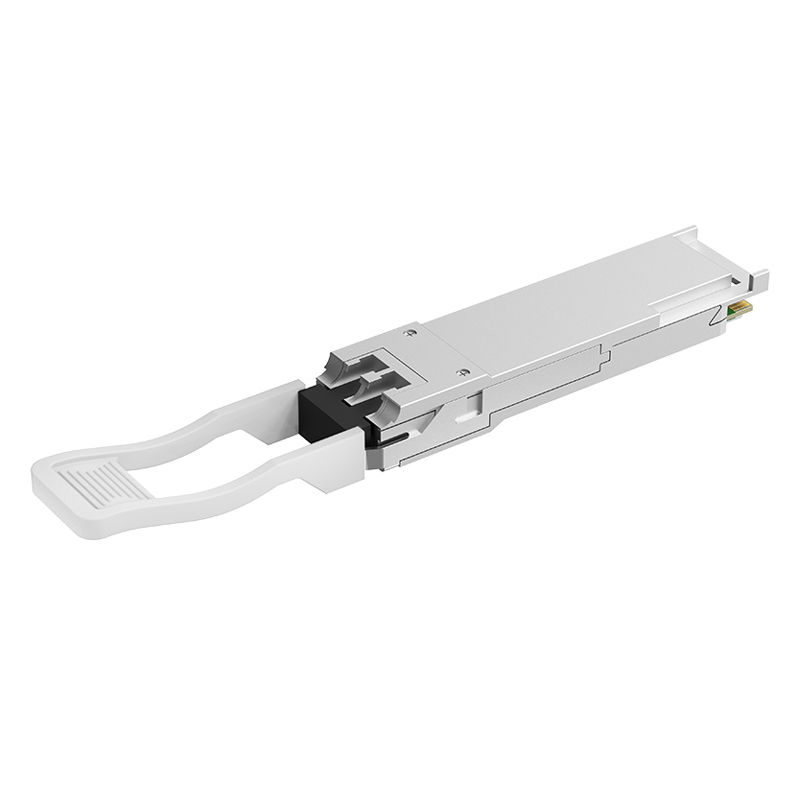

Single Mode Fiber Optic Transceiver Module Duplex LC 1310nm SMF QSFP+ 40G 80km
Integrating fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
| Item | 40G QSFP+ Module |
| Part Status | Active |
| Form Factor | QSFP+ |
| Max Data Rate | 40G |
| Wavelength | 1310nm |
| Max Cable Distance | 80KM |
| Connector | Duplex LC |
| Media | SMF |
| Optical Component | EML/PIN |
| TX Power | 1~6dBm |
| Receiver Sensitivity | <-25dBm |
| Receiver Overload | -8dBm |
| Power Consumption | ≤4.5W |
| DDM/DOM | DDM Supported |
| Commercial Temperature | 0 to 70°C (32 to 158°F) |
| Protocols | QSFP+ MSA, IEEE 802.3ba Compliant |
| Warranty | 5 Years |
