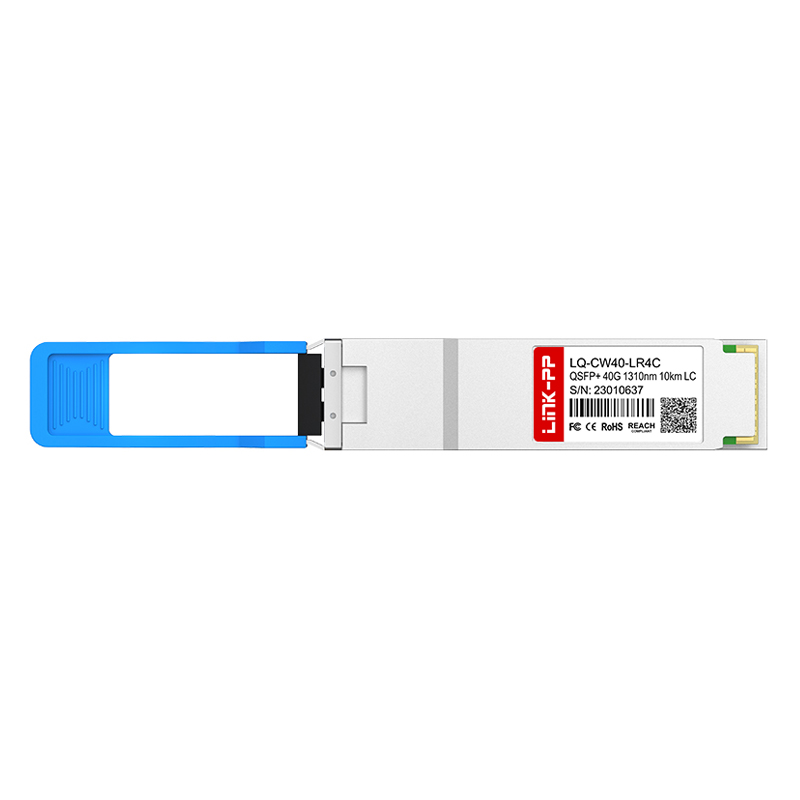

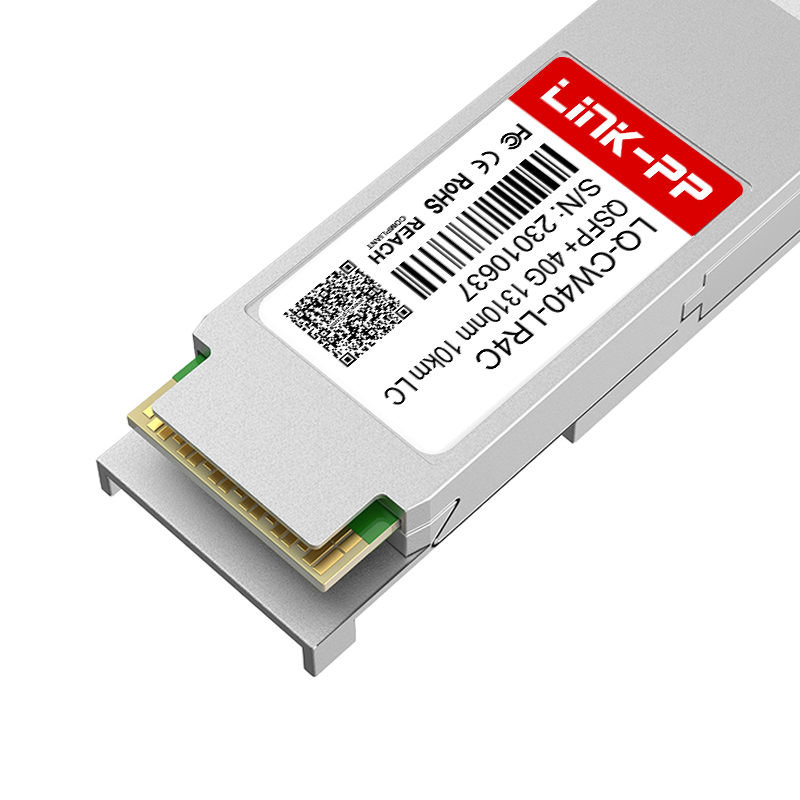

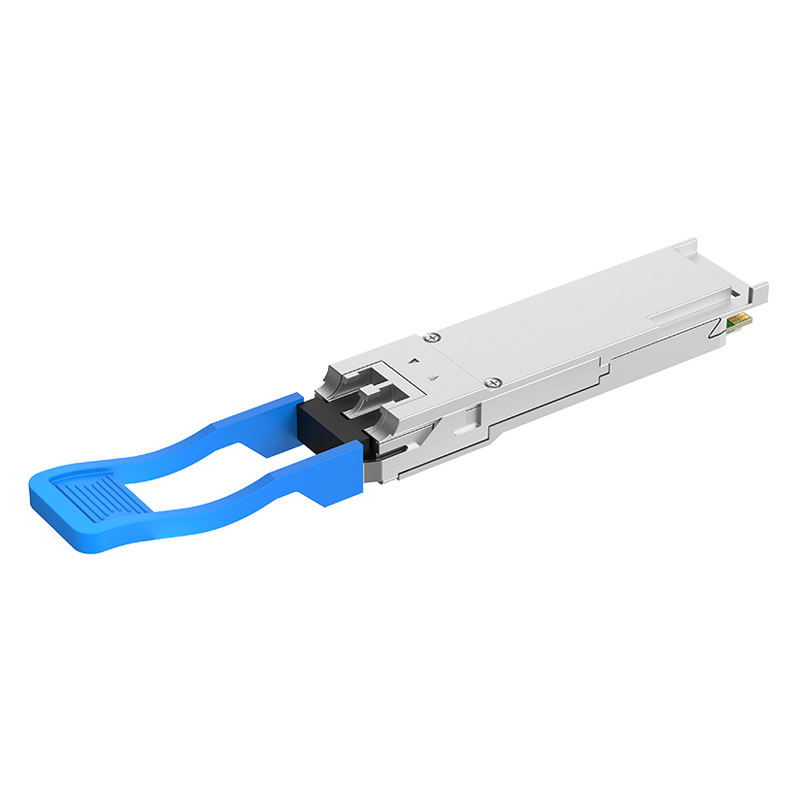

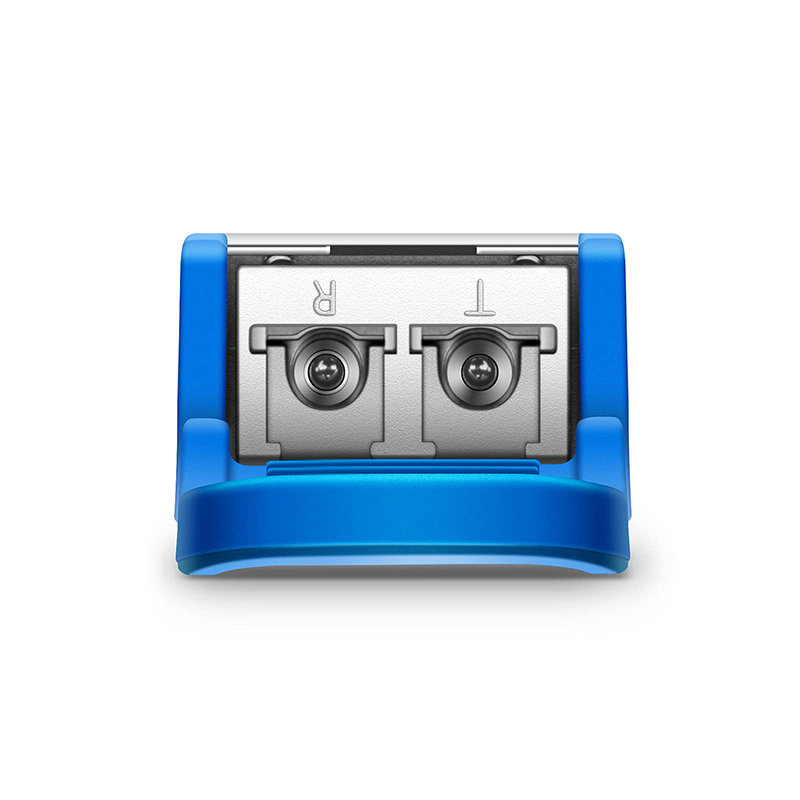

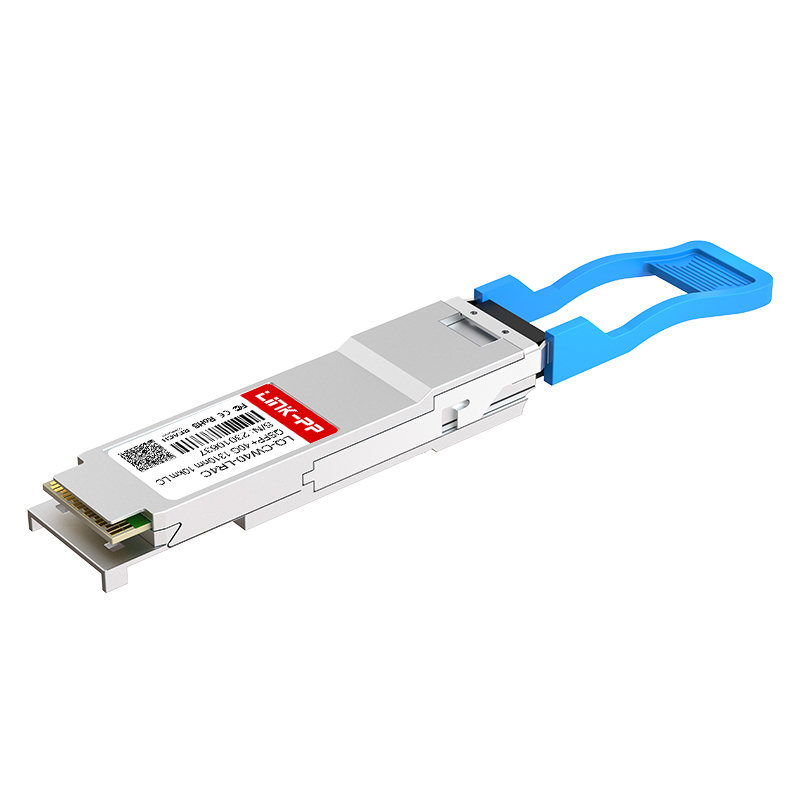

| Item | 40G QSFP+ Module |
| Part Status | Active |
| Form Factor | QSFP+ |
| Max Data Rate | 40G |
| Max Cable Distance | 10km |
| Wavelength | 1310nm |
| Connector | Duplex LC |
| Media | SMF |
| Optical Component | DFB/PIN |
| TX Power | -7~2.3dBm |
| Receiver Sensitivity | <-11dBm |
| Receiver Overload | 2.4dBm |
| Power Budget | 4dB |
| Power Consumption | ≤3.5W |
| DDM/DOM | Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | OTN OTU3, 40G Ethernet, Fiber Channel, SATA/SAS3, MSA Compliant |
| Warranty | 5 Years |
| Sample | Available |
Drawing on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. Providing a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Providing end-to-end DWDM devices including almost all optical devices - from active modules to optical passive devices, such as optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR.
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules with product rates ranging from 10G to 800G have been developed, providing high-quality optical interconnection solutions.
High reliability and performance products with mature chip solutions. Coverage includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul for all 4G/5G system scenarios.
Total solutions for global communication network constructors, covering all-optical or optical-copper combined access solutions and products.
Ensuring normal operation of communication lines with integrated optical line protection systems (OLP) and optical line monitoring systems (OLM).
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROSH, REACH, CE, and UL. Our facility owns advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, with a staff of around 2000 and a monthly capacity of 3000K, we ensure short delivery times. We develop, manufacture, and sell high-speed optical interconnection solutions for cloud computing and ultra-broadband networks globally.
