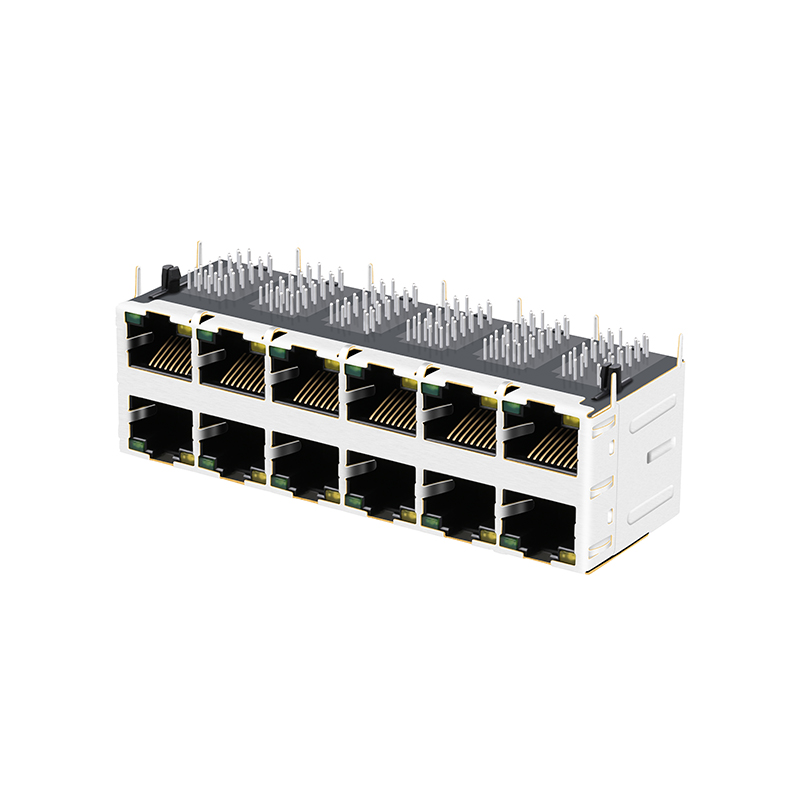

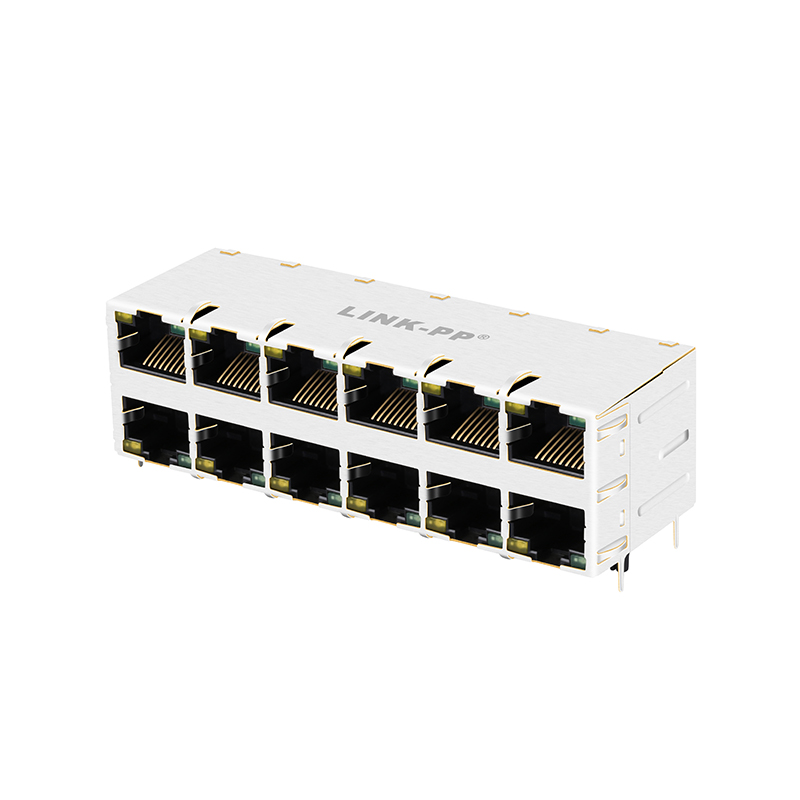

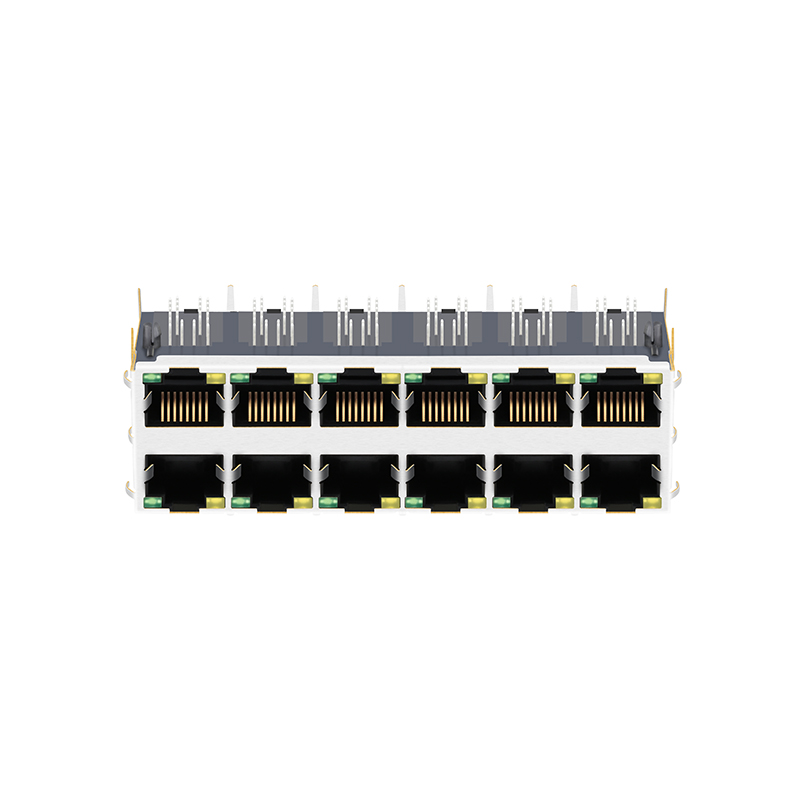

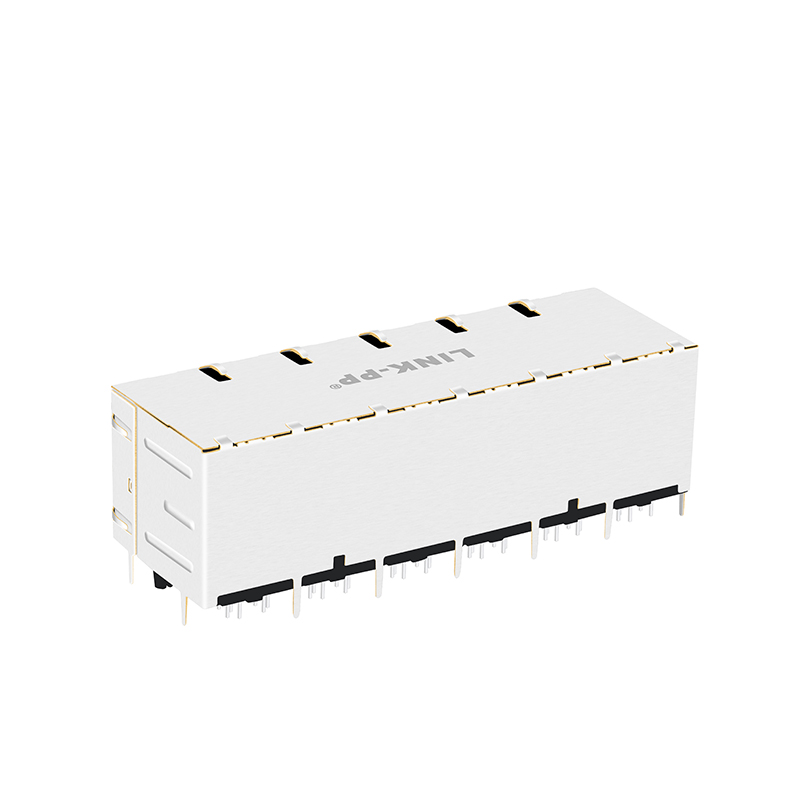

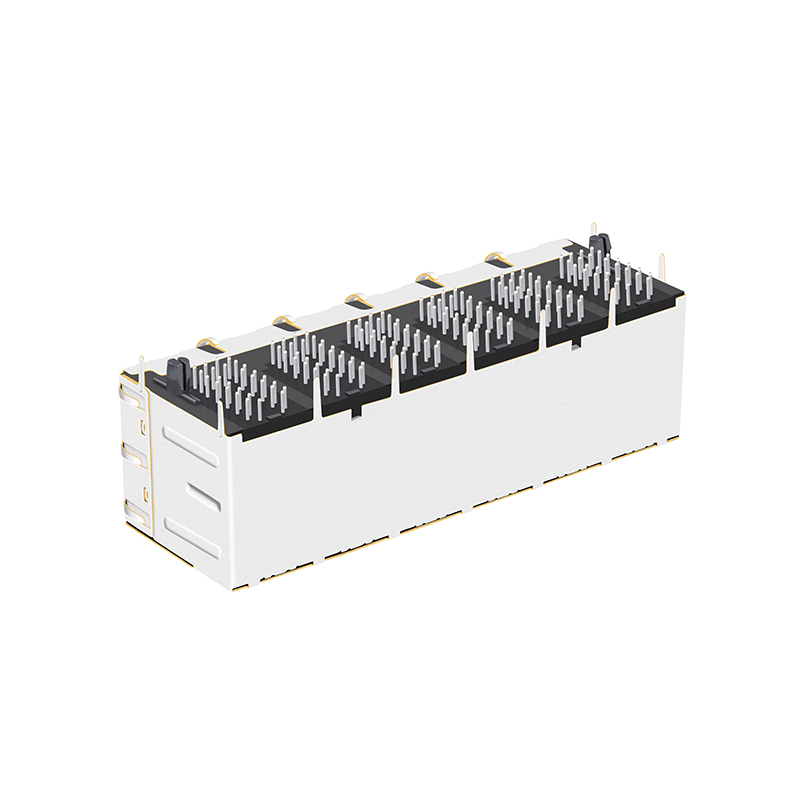

10/100/1000 Base-T RJ45 Stacked Jack 2x6 Port RJGE-12M6170DJP
Technical Specifications
| Part Number | RJGE-12M6170DJP |
| Application-LAN | ETHERNET (NON POE) |
| AutoMDIX | YES |
| Bst Circuit | YES |
| Configuration RX/TX | T,C / T,C |
| Contact Mating Plating | GOLD 6u"/15u"/30u" |
| Cores Per Port | 4 |
| Diodes | NO DIODES |
| LED Option | WITH/WITHOUT LEDS |
| Latch Configuration | UP/DOWN |
| Number of Ports | 2X6 |
| PCB Material & Mount | FR4 / SIDE ENTRY |
| PCB Retaining Post | T POST |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 (Lead in solder exemption) |
| Speed | 10/100/1000/10G BASE-T |
| Temperature Range | 0 TO 70°C / -40 TO 85°C |
| Turns Ratio RX/TX | 1CT:1 / 1CT:1 |
Key Advantages & Quality Assurance
🏆
Professional Certification
ISO 9001:2008, UL Certification, Reach Certification, RoHS Compliance, and Active Environmental Policy.
🛡️
100% Quality Guarantee
Manufactured under strict controls. 100% tested (not just batch tested). Quality guarantee for 6 years.
💰
Competitive Service
Highly competitive pricing. Delivery time: 2-3 weeks. Free samples available for evaluation.
🚀
Global Logistics
Up to 90% off shipping costs via major international carriers like DHL, UPS, FEDEX, or TNT.
Product Diagrams & Engineering Views
Frequently Asked Questions (FAQ)
What is the data transfer speed of the RJGE-12M6170DJP?
This stacked RJ45 jack supports 10/100/1000 Base-T Gigabit Ethernet speeds, with capabilities extending up to 10G Base-T applications.
What is the port configuration of this connector?
It features a 2x6 stacked configuration, providing a total of 12 RJ45 ports in a compact, side-entry PCB mount design.
Does this product support Power over Ethernet (PoE)?
No, the RJGE-12M6170DJP is designed for non-PoE Ethernet applications.
What are the plating options for the contact area?
The contact mating area is available with gold plating options of 6u", 15u", or 30u" to suit different durability requirements.
Is this RJ45 jack compliant with environmental standards?
Yes, it is RoHS compliant (RoHS-5 with lead-in-solder exemption) and manufactured under ISO 9001:2008 standards with Reach certification.
What is the typical lead time and testing protocol?
The standard delivery time is 2-3 weeks after ordering. Every single unit undergoes 100% quality testing (not just batch testing) to ensure defect-free performance.
