Product Description

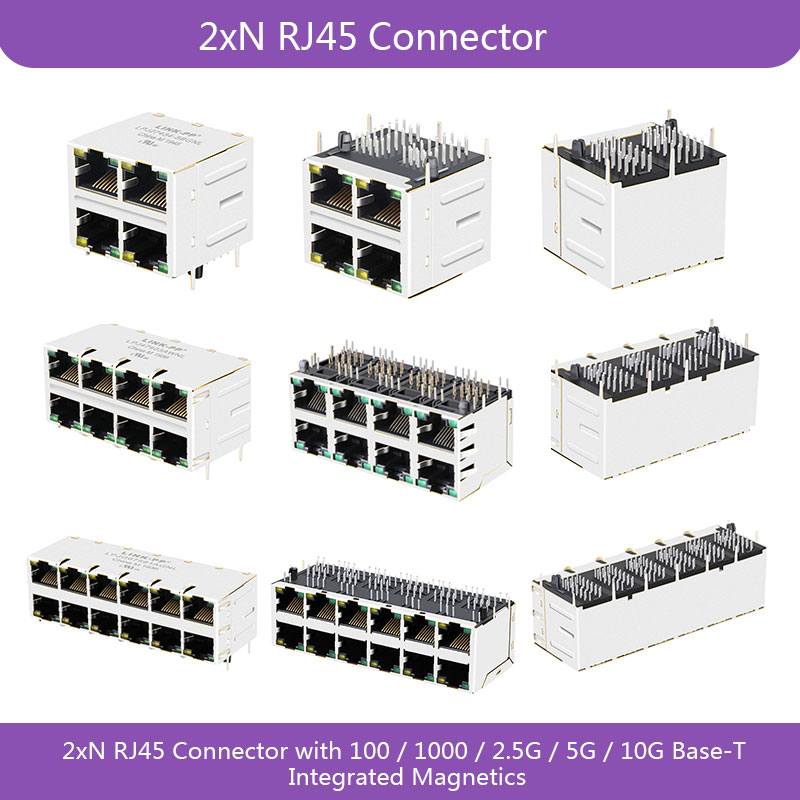

📋 Product Characteristics

RJ45 Connector with integrated transformer / common mode choke
Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s
Available in SMT, THT and THT with USB
Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt
HPLE products: Improved Common Mode Rejection due to additional NiZn cores

⚙️ Technical Specification

Model Number	RJ45 Filtered Connectors
Part Status	Active
Connector Type	RJ45
Applications-Lan	Ethernet(PoE/Non_PoE)
Speed	10/100/1000/2.5G/5G/10G Base-T, AutoMDIX
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Contact Finish Thickness	6.00µin (0.152µm)
LED Color	Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack	4/6/8/12
Shielding	Shielded, Emi Finger
Number of Ports	2x1 2x2 2x4 2x6 2x8 Port
Features	Board Guide
Tab Direction	Down/Up
Contact Finish	Gold
Configuration RX/TX	T,C
Turns Ratio RX/TX	1CT:1CT
Operating Temperature	0°C ~ 70°C/-40°C ~ +85°C

📦 Packing & Delivery

Package Details: Tray Package

Carton size: 32*30*31cm
Gross Weight/carton: 8.5kg
Quantity/carton: 1200pcs
Standard Pack Quantity (SPQ): 50pcs
Net Weight/pcs: 0.007kg

🏭 Quality Assurance & Facility

❓ Frequently Asked Questions

1. How do you ensure the quality of your RJ45 connectors? We maintain strict quality control through a multi-step process, including a pre-production sample evaluation before mass manufacturing and a final 100% inspection before shipment. Our facilities are certificated by SGS, ISO9001:2008, UL, REACH, and CE.

2. What specific products are available in your range? We specialize in high-performance networking components including RJ45 Magnetics, LAN transformers, RJ11 Connectors, RJ45 Connectors, and SFP modules.

3. What are the advantages of choosing your integrated RJ45 solutions? With nearly 20 years of manufacturing expertise, we offer high-capacity production (up to 30,000K per week) and products that feature improved Common Mode Rejection. Our connectors support PoE up to 50W and speeds up to 10 Gbit/s.

4. Can these connectors operate in extreme temperatures? Yes, our connectors are designed to perform reliably in a variety of environments, with operating temperature options ranging from standard 0°C ~ 70°C to industrial-grade -40°C ~ +85°C.

5. What delivery terms and payment methods do you accept? We provide flexible delivery terms including FOB, CFR, CIF, EXW, DDP, and Express Delivery. We accept multiple payment currencies (USD, EUR, JPY, etc.) via T/T, L/C, Credit Card, PayPal, and Western Union.

6. Are your products compliant with international networking standards? Absolutely. Our RJ45 Filtered Connectors are compliant with IEEE 802.3u, 802.3ab, 802.3af, 802.3at, and the upcoming 802.3bt standards, ensuring seamless integration into modern Ethernet networks.
