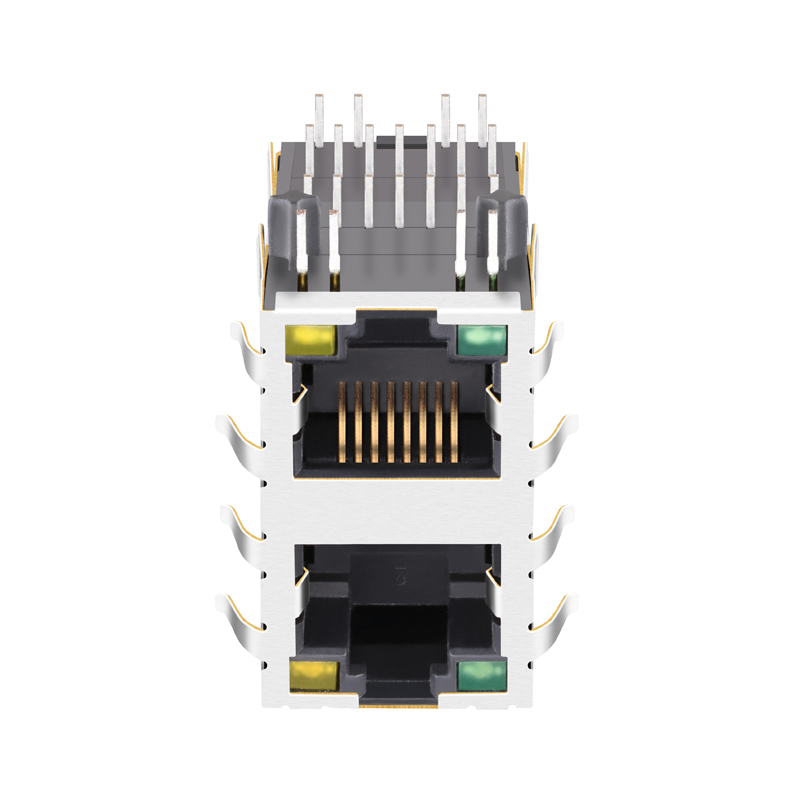

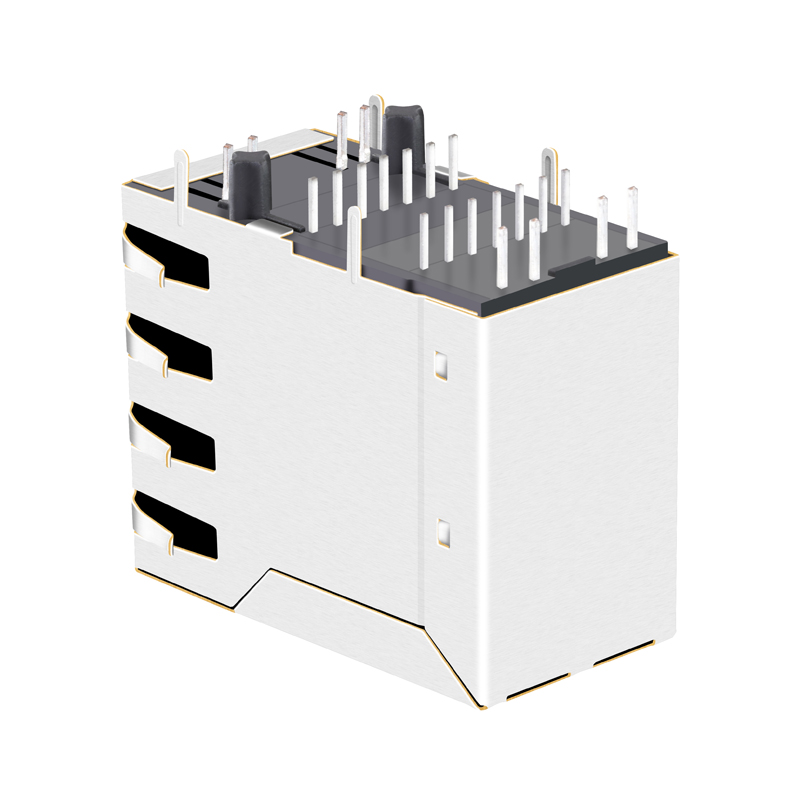

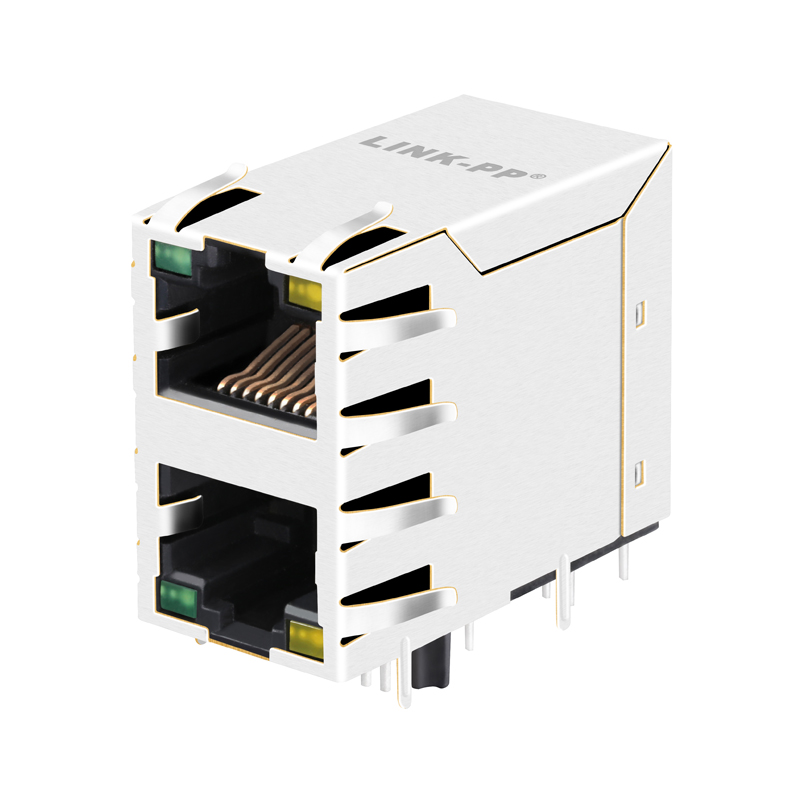

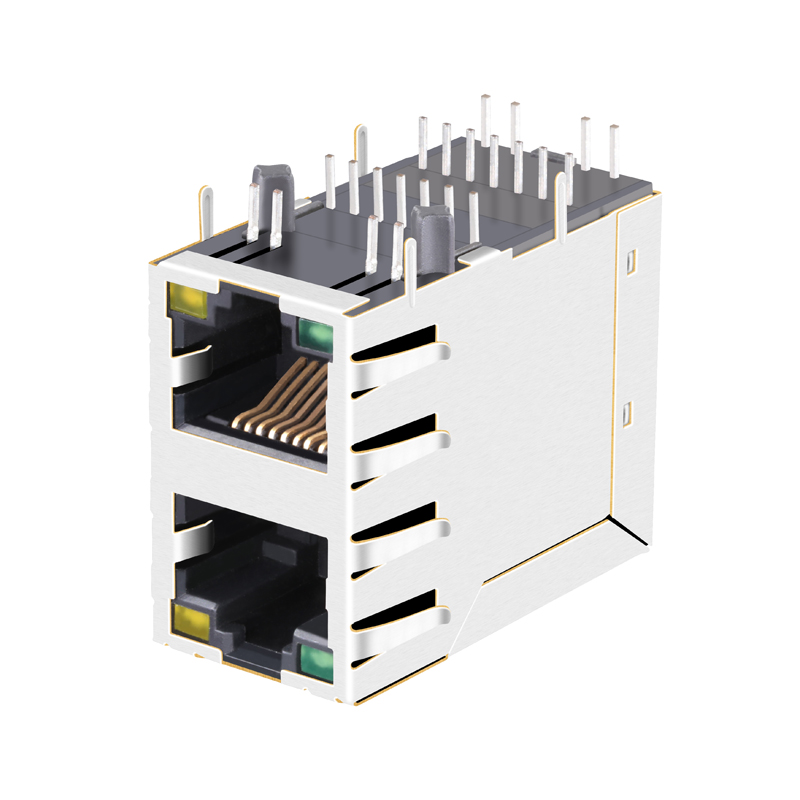

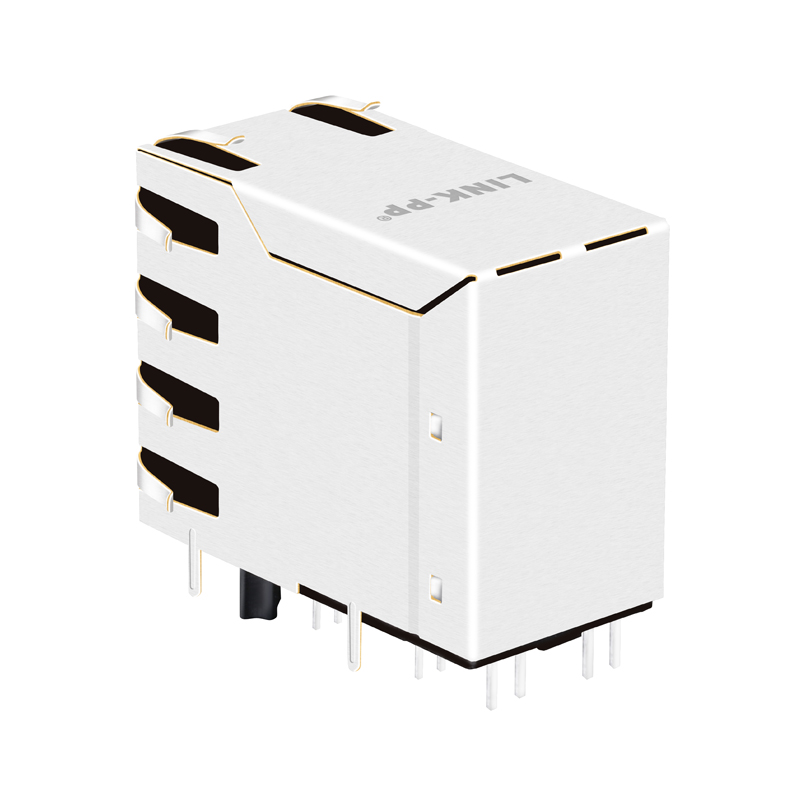

| 2x1 Port RJ45 Connector 10/100 Base-T Integrated Magnetics | |
|---|---|
| Manufacturer Part Number | LPJ17202CNL |
| Cross Reference | MIC24A10-0101W-LF3 / 7499051002 |
| Application | ETHERNET (Non-PoE) |
| AutoMDIX | YES |
| Bst Circuit | YES |
| Configuration RX/TX | T, C / T, C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | NO |
| Diodes | NO DIODES |
| LED Option | Without |
| Latch | TAB DOWN / UP |
| Number of Ports | 1X1 (2x1 Configuration) |
| PCB Material | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES |
| Shield EMI Tabs | With |
| Speed | 10/100 Base-T |
| Temperature Range | -40 TO 85℃ |
| Turns Ratio RX/TX | 1CT:1CT |
Our connectors are widely used in industrial and networking applications, preferred by industry leaders for high-performance hardware including development boards and network switches. The design ensures defect-free performance and high-level customer satisfaction through continuous improvements.
