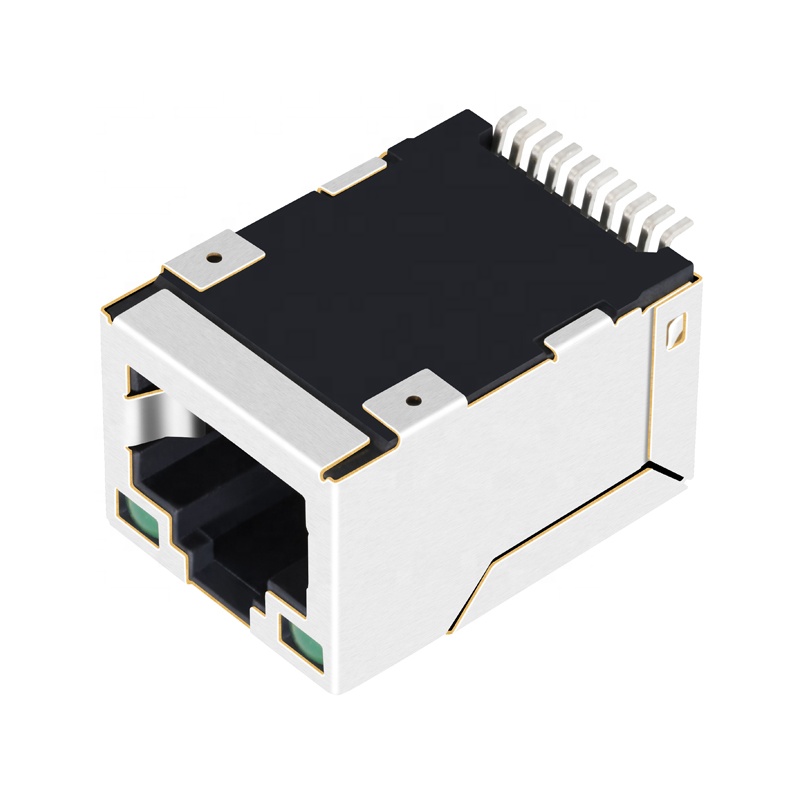

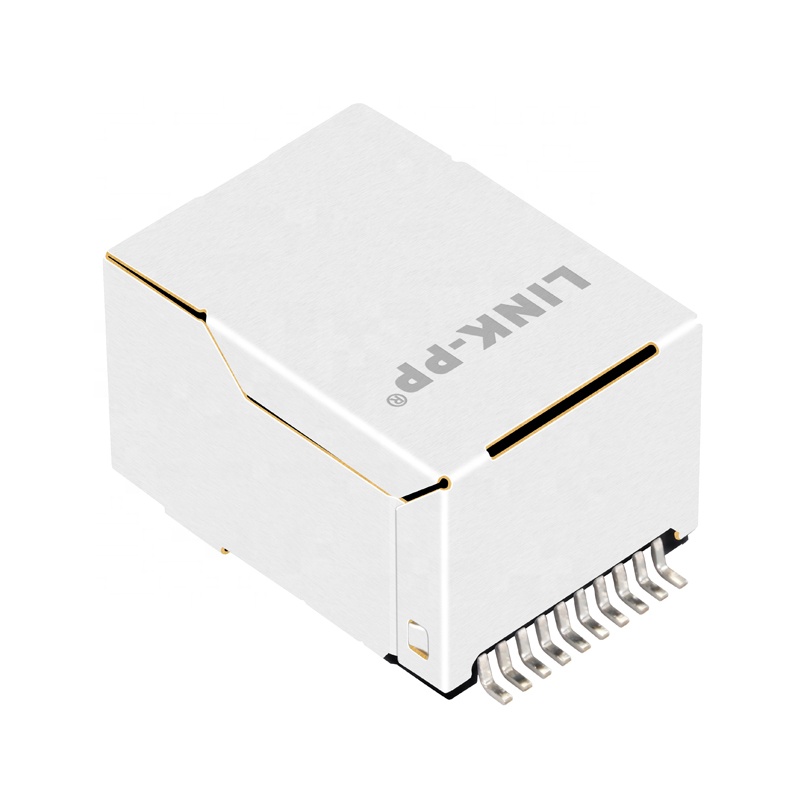

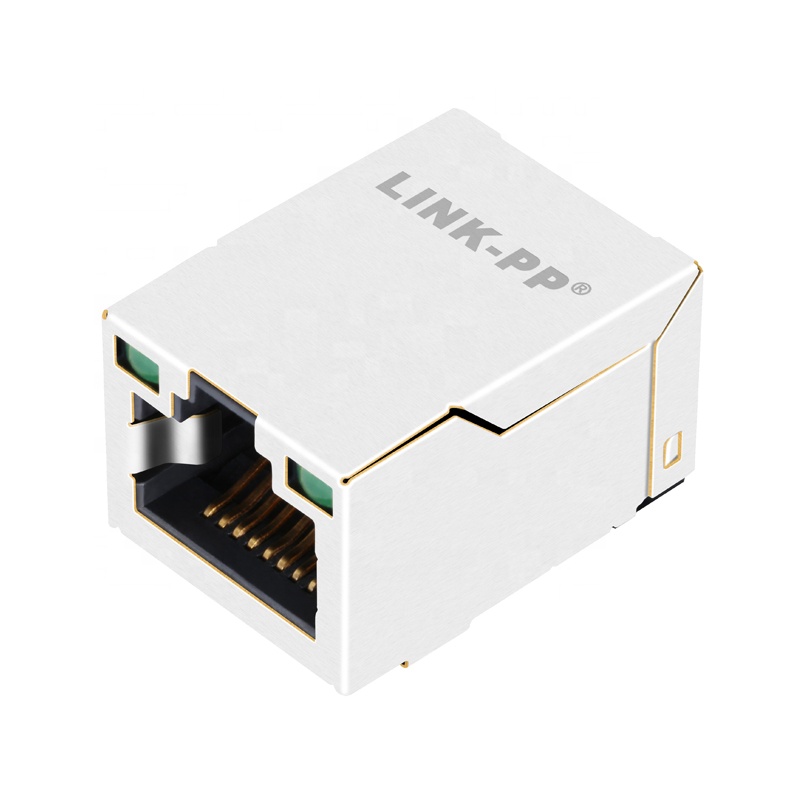

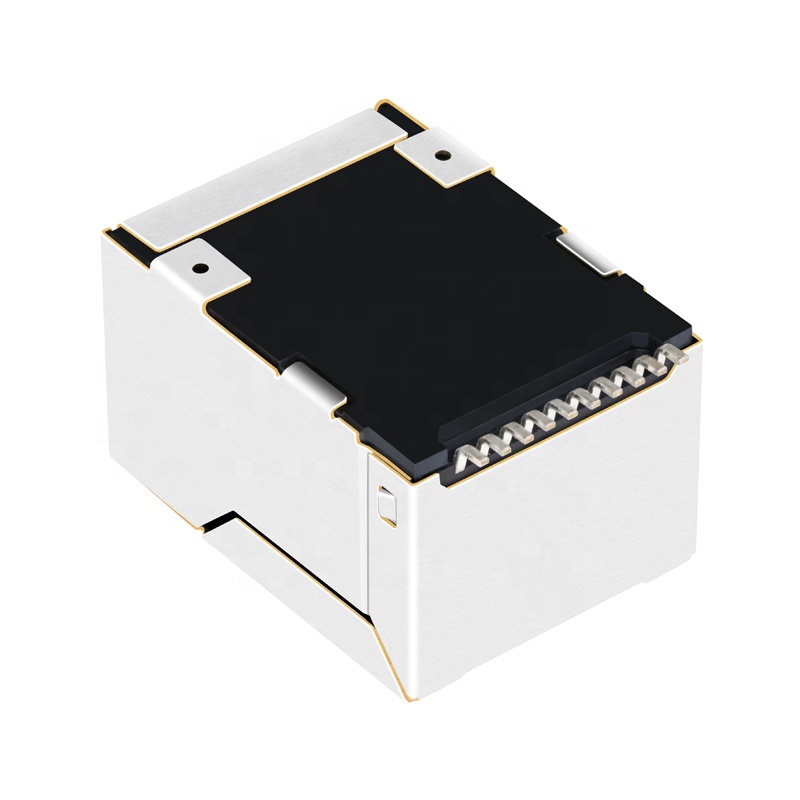

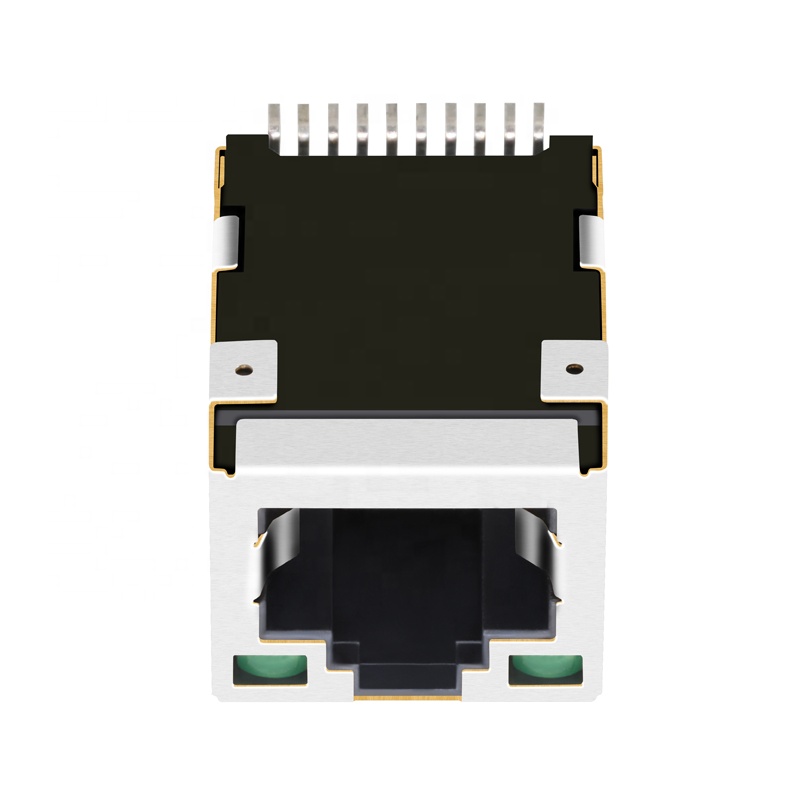

ARSM11-3652I JXD6-0002NL 49F-1201YGD2NL with Leds 100 Base-T Shielded SMT RJ45 8P8C Jack
ARSM11-3652I JXD6-0002NL 49F-1201YGD2NL with Leds 100 Base-T Shielded SMT RJ45 8P8C Jack
ARSM11-3652I JXD6-0002NL 49F-1201YGD2NL with Leds 100 Base-T Shielded SMT RJ45 8P8C Jack
ARSM11-3652I JXD6-0002NL 49F-1201YGD2NL with Leds 100 Base-T Shielded SMT RJ45 8P8C Jack
ARSM11-3652I JXD6-0002NL 49F-1201YGD2NL with Leds 100 Base-T Shielded SMT RJ45 8P8C Jack
1 / 5
ARSM11-3652I JXD6-0002NL 49F-1201YGD2NL with Leds 100 Base-T Shielded SMT RJ45 8P8C Jack
ARSM11-3652I JXD6-0002NL 49F-1201YGD2NL with Leds 100 Base-T Shielded SMT RJ45 8P8C Jack
ARSM11-3652I JXD6-0002NL 49F-1201YGD2NL with Leds 100 Base-T Shielded SMT RJ45 8P8C Jack
ARSM11-3652I JXD6-0002NL 49F-1201YGD2NL with Leds 100 Base-T Shielded SMT RJ45 8P8C Jack
ARSM11-3652I JXD6-0002NL 49F-1201YGD2NL with Leds 100 Base-T Shielded SMT RJ45 8P8C Jack

ARSM11-3652I JXD6-0002NL 49F-1201YGD2NL with Leds 100 Base-T Shielded SMT RJ45 8P8C Jack

Send Inquiry

Product Description

ARSM11-3652I JXD6-0002NL 49F-1201YGD2NL with Leds 100 Base-T Shielded SMT RJ45 8P8C Jack
Product Overview
📋 Products Description
ItemRJ45 Female Connector
Part NumberLPJ19201BGNL
Cross Part NumberARSM11-3652I JXD6-0002NL 49F-1201YGD2NL
Part StatusActive
Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet(NoN PoE)
Number of Ports1x1 Port
Speed10/100 Base-T
LatchUp
Cores per Port4
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithout
LED OptionGreen/Yellow
PCBFR4
PCB Retaining PostT POST
Temperature-40℃ TO 85℃
Bst CircuitYes
AutomDXYES
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C
🔍 Technical Specifications
🏭 Profile
Established in 1997, this professional designer and manufacturer specializes in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, the facility serves global suppliers of OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers across 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, the focus remains on being a world leader in Ethernet RJ45 connectors and LAN transformer technology.
❓ FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples to test quality, provided the shipping fee is covered.
What is your delivery time?
Stock items are ready to ship immediately; mass production typically takes 15-30 days.
What after-service can you offer?
We provide a one-year guarantee period and offer 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we welcome inquiries for OEM and ODM projects to discuss specific requirements.
What is your advantage?
We have over 19 years of production experience and maintain long-standing partnerships with major industry leaders.
