Product Description

Product Overview
◈

Product Gallery

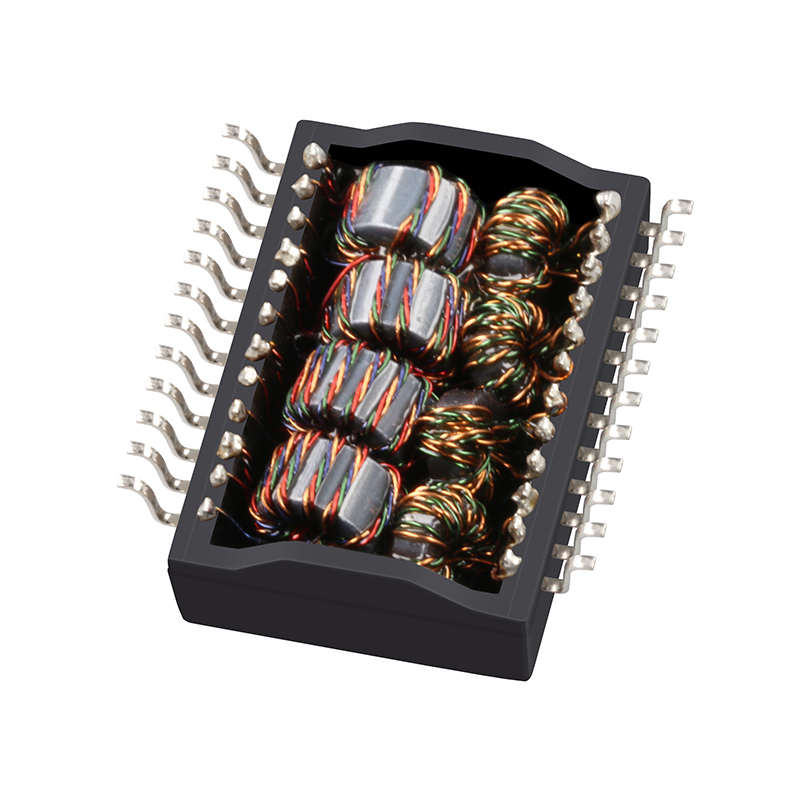

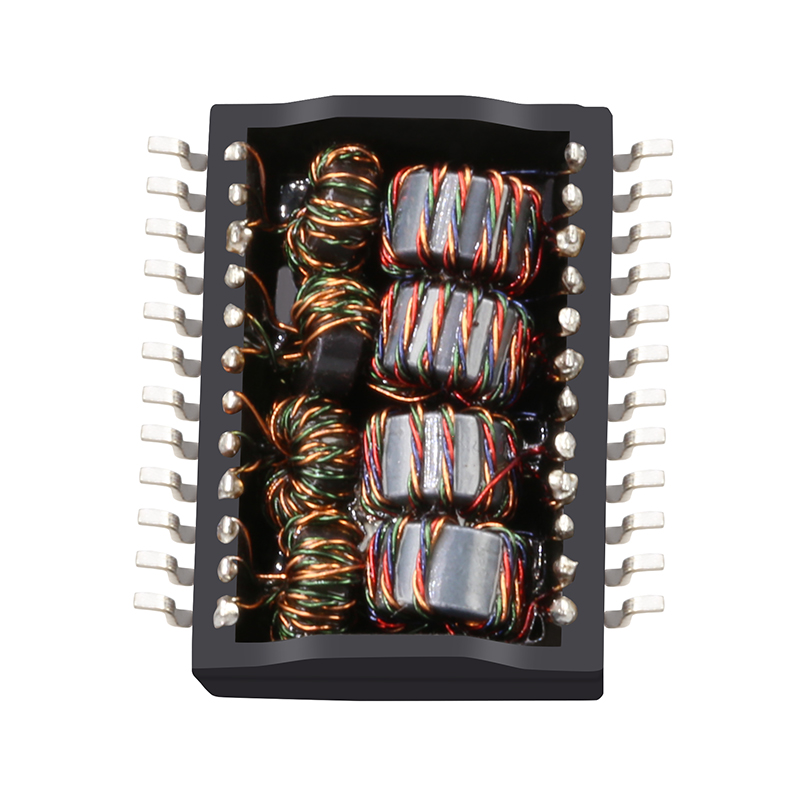

Product View 1

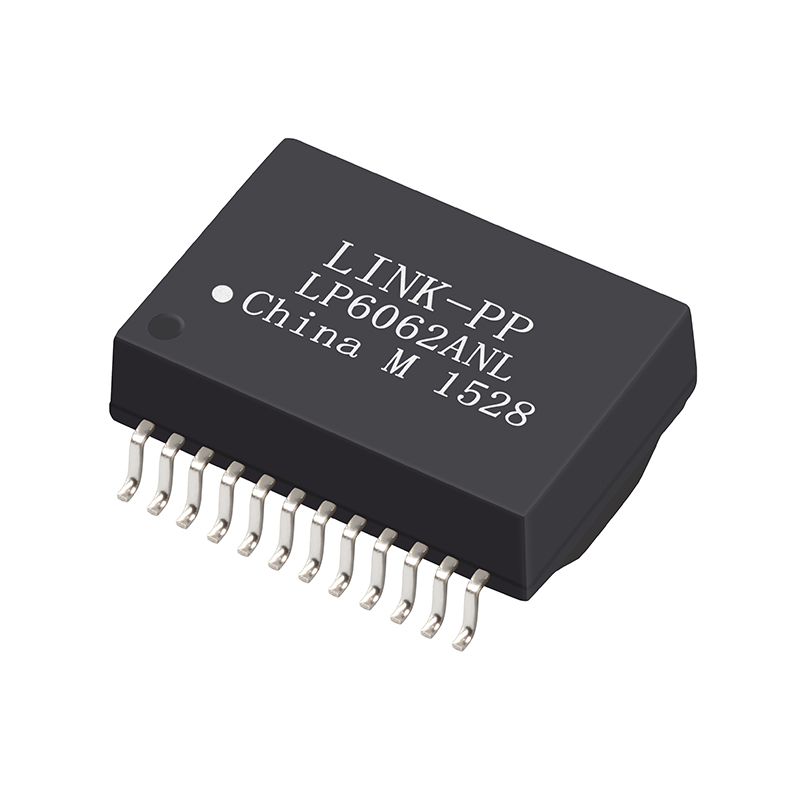

Product View 2
Product View 3
⚙

Technical Specifications

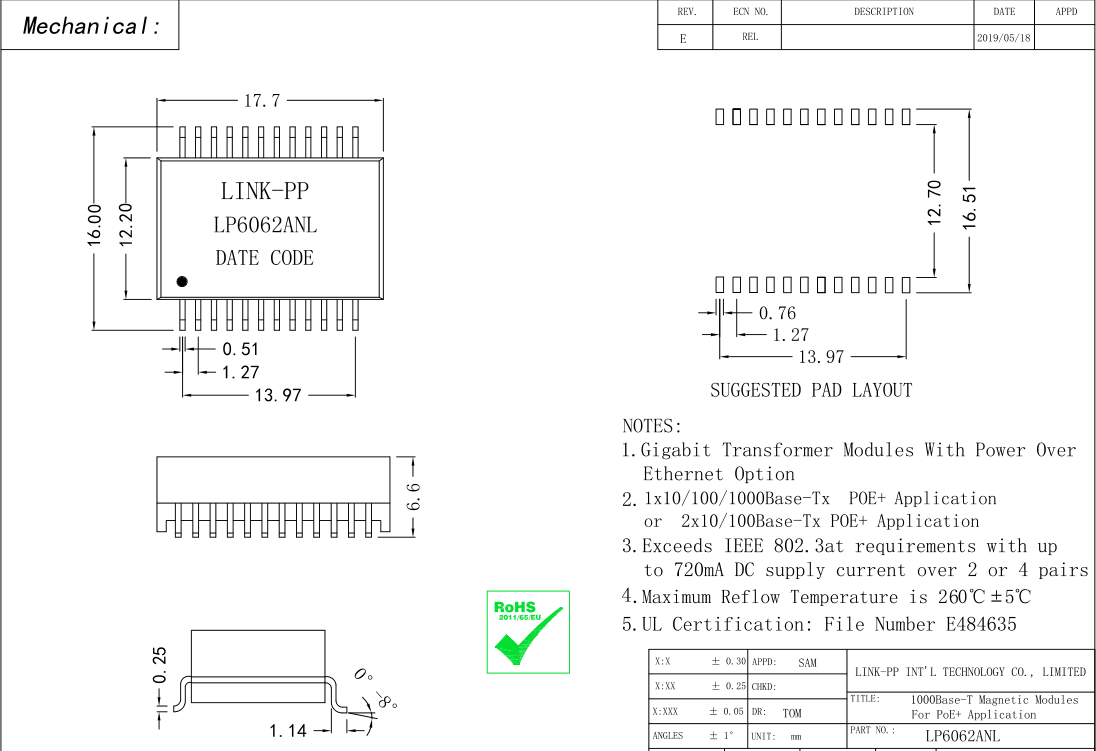

Technical Drawing
Place of OriginChina
Part NumberLP6062ANL / TG1G-S012NZRL
Transformer TypeLan Transformer
ApplicationEthernet (PoE+)
Number of PortsSingle Port
Speed10/100/1000 Base-T
PackageTape & Reel
Cores per Port8
PIN number24 Pin
Mounting TypeSurface Mount (SMD)
Temperature Range-40℃ TO +85℃
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT, C, S
📦

Packaging Information

Package Measurement
✔ N.W/pcs: 0.004kg
✔ Package Style: Reel
✔ Standard Pack Qty (SPQ): 400pcs
✔ Carton Quantity: 1600pcs
✔ Carton Size: 37 * 37 * 25cm
✔ G.W/carton: 5.8kg
🛡

Production & Quality Assurance

Production 1
Production 2
Production 3
Production 4
Production 5
Production 6
Quality Certificate
❓

Frequently Asked Questions

1. What is the main application for the LP6062ANL transformer?
It is primarily designed for 10/100/1000 Base-T Ethernet applications with PoE+ (Power over Ethernet) support, commonly used in networking equipment.
2. Is this product compatible with Halo TG1G-S012NZRL?
Yes, the LP6062ANL is a direct cross-reference and equivalent to the Halo TG1G-S012NZRL part number.
3. What is the operating temperature range?
This transformer is designed for industrial-grade environments, operating reliably between -40℃ and +85℃.
4. How is the product packaged for shipping?
The units are supplied in Tape & Reel packaging, with 400 pieces per reel and 1600 pieces per master carton to ensure safe transport.
5. What is the mounting style of this component?
This is a Surface Mount (SMD) component with 24 pins, suitable for automated pick-and-place assembly processes.
6. Does it support Gigabit speeds?
Yes, it fully supports 10/100/1000 Base-T transmission speeds for high-speed Gigabit Ethernet connectivity.
