Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
1 / 5
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT

Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT

Send Inquiry

Product Description

Product Description

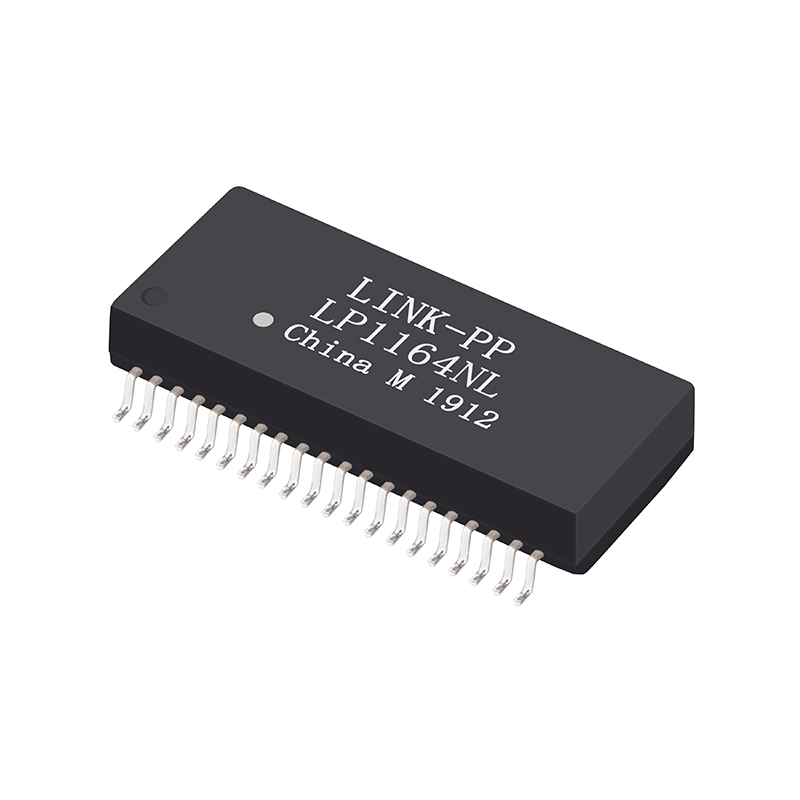

Product View 1

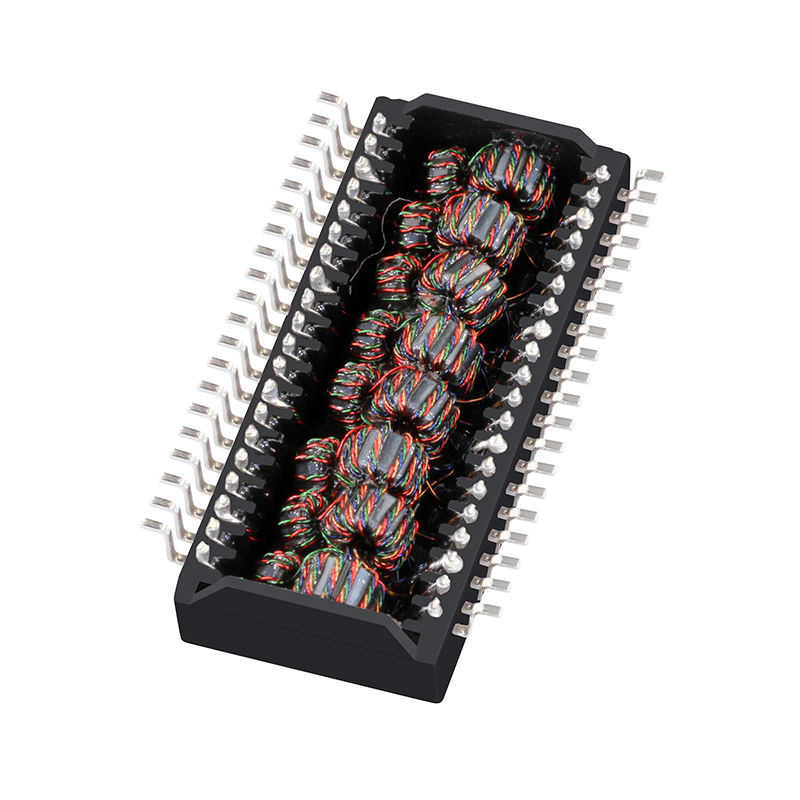

Product View 2
Technical Specification
ItemValue
Place of OriginChina
Part NumberLP1164NL
Cross ReferenceH1164NLT
Transformer TypeLan Transformer
Application-LanEthernet (Non-PoE)
Number of PortsQuad Port
Speed10/100 Base-T
PackageTape & Reel
Cores per Port16
PIN number40
Mounting TypeSurface Mount
Temperature Range0℃ TO +70℃
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT, C, S
Packing & Delivery
Packing Details
Package Information:
Net Weight: 0.005kg/pcs
Package Type: Reel (SPQ: 400pcs)
Quantity per Carton: 1600pcs
Carton Size: 36 * 35.5 * 23cm
Gross Weight: 7.5kg/carton
Facility & Quality Overview
Facility 1
Facility 2
Facility 3
Facility 4
Facility 5
Facility 6
Facility 7
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROSH, REACH, CE and UL. Our factory utilizes advanced manufacturing facilities and test equipment imported from abroad. With an abundant monthly productive capacity of 3000K, we ensure short delivery times and professional complete solutions for magnetic components alongside strong technical support.
Main Product Lines:
  • 10/100/1000M LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Frequently Asked Questions
What is the primary application for the LP1164NL?
It is a Quad Port Lan Transformer designed for 10/100 Base-T Ethernet applications, specifically for Non-PoE environments.
Is this component compatible with other industry standard parts?
Yes, it is compatible and serves as an equivalent to the Pulse part number H1164NLT.
What are the mounting and packaging specifications?
This is a Surface Mount (SMD) device provided in Tape & Reel packaging, with 400 pieces per reel.
What certifications do your products carry?
Our manufacturing processes and products are certified by ISO9001:2000, RoHS, REACH, CE, and UL.
What is the operating temperature range for this transformer?
The standard operating temperature range is 0℃ to +70℃, suitable for most commercial networking equipment.
Can you handle high-volume orders?
Yes, we have a production capacity of 3000K units per month, allowing us to support large-scale requirements with efficient lead times.
