10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
1 / 5
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002

10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002

Send Inquiry

Product Description

📦 Product Description

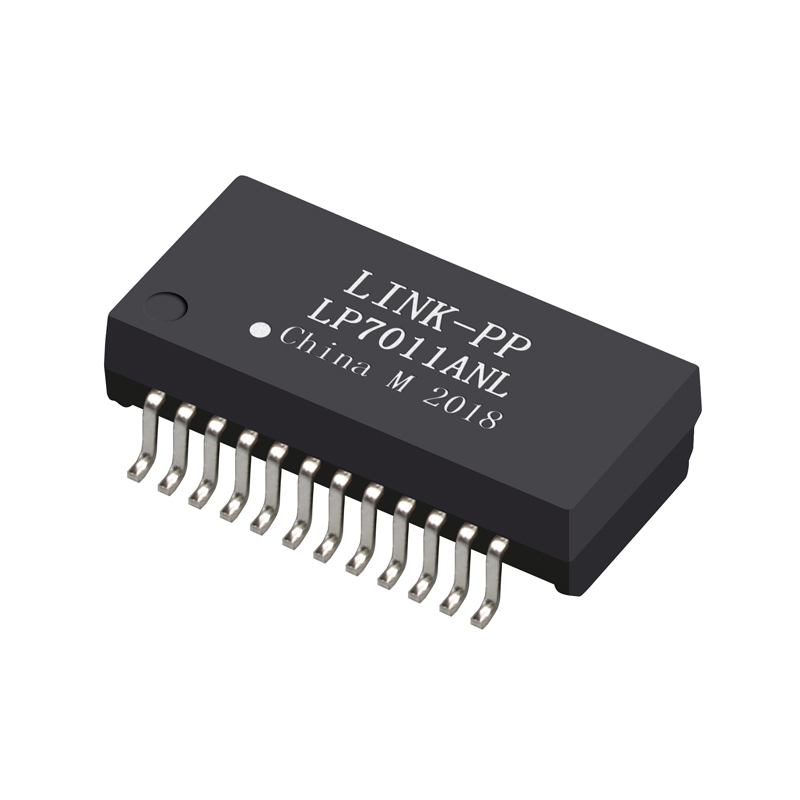

Product View 1

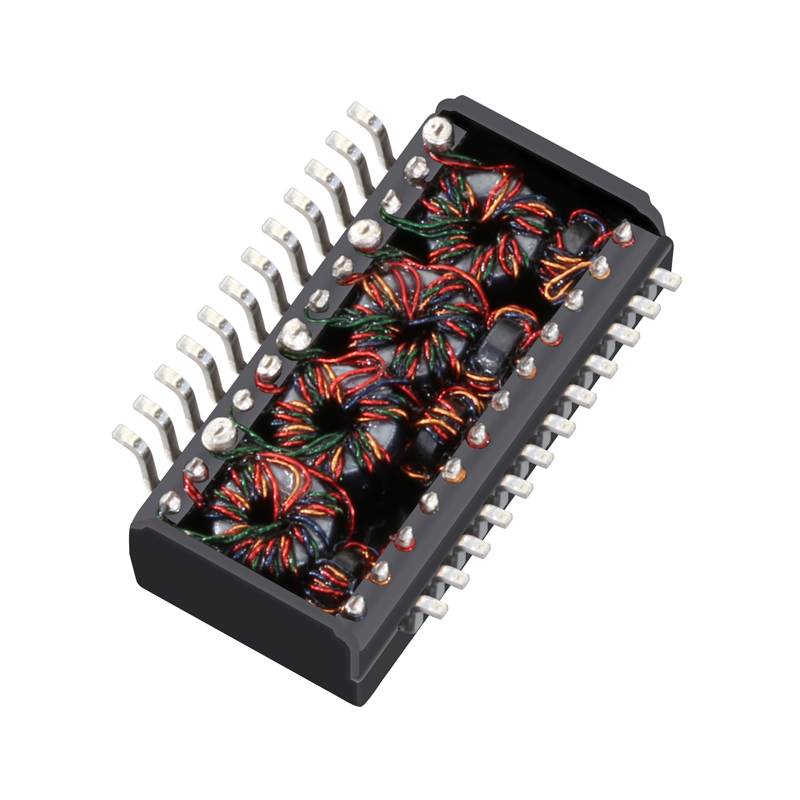

Product View 2
⚙️ Specification
itemvalue
Place of OriginChina
Part NumberLP7011ANL
Cross ReferenceXF-GH-002
Transformer TypeLan Transformer
Application-LanEthernet(PoE)
Number of PortsSingle Port
Speed10G Base-T

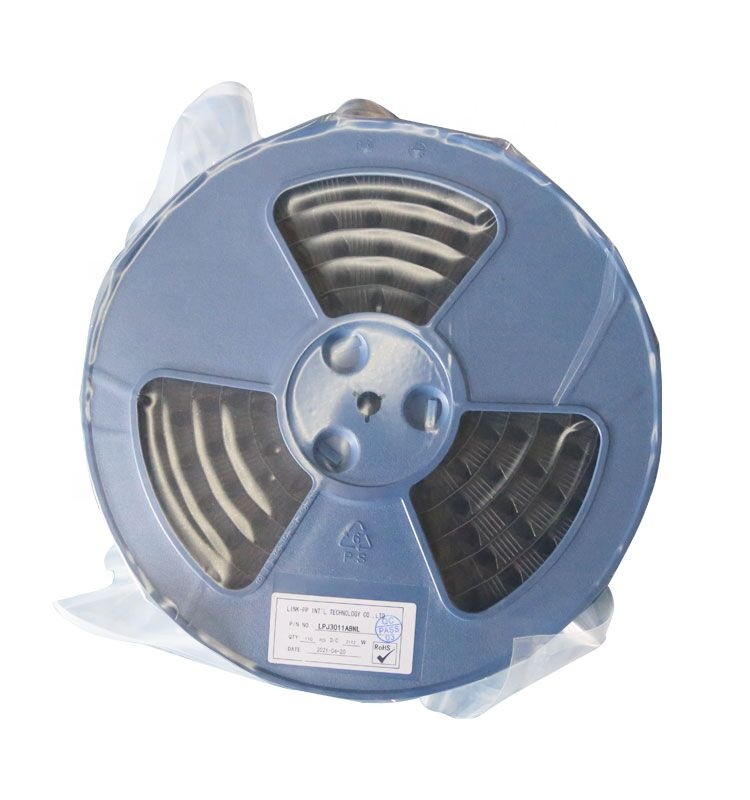

PackageTape & Reel
Cores per Port8
PIN number24
Mounting TypeSurface Mount
Temperature-40℃ TO +85℃
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C,S
🚚 Packing & Delivery
Packing Info
The package details:
N.W/pcs: 0.004kg | Package: Reel | SPQ: 400pcs | Qty/carton: 1600pcs | Carton size: 36*35.5*23cm | G.W/carton: 5.9kg

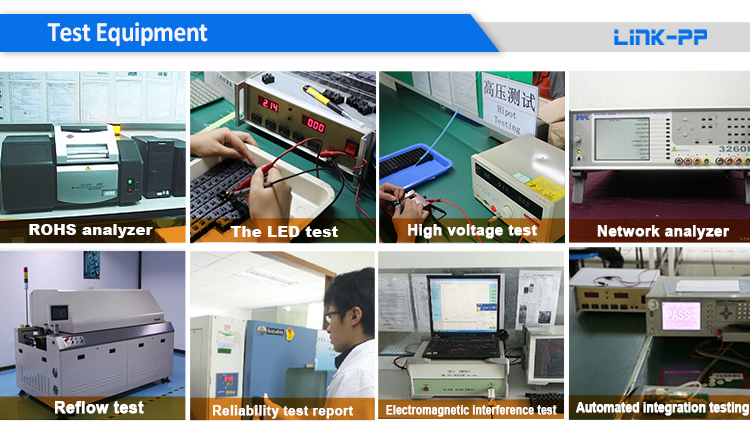

🏭 Production & Facilities
Facility 1
Facility 2
Facility 3
Facility 4
Facility 5
Facility 6
Facility 7
A specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001, ROSH, REACH, CE and UL. Our factory owns advanced manufacturing facilities and test equipments imported from abroad. With an abundant productive capacity of 3000K per month, we provide short delivery times and professional complete solutions for magnetic components with strong technical support.

Main Products:
  • 10/100/1000M/10G LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Our products are widely used in networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem. We have exported to more than 30 countries and regions worldwide.
❓ Frequently Asked Questions
Q1: What is the maximum transmission speed supported by this transformer?
A: This model is designed for 10G Base-T Ethernet applications, providing high-speed data transmission up to 10 Gigabits per second.
Q2: Does this product support Power over Ethernet (PoE)?
A: Yes, it is specifically designed for Ethernet (PoE) applications, allowing for both data and power transmission.
Q3: What is the operating temperature range for the LP7011ANL?
A: It is built for industrial durability with an operating temperature range of -40℃ to +85℃.
Q4: How is the product packaged for bulk shipping?
A: The products are packaged in Tape & Reel format, with 400pcs per reel and 1600pcs per standard carton.
Q5: Is this transformer compatible with automated SMT assembly?
A: Yes, it is a Surface Mount (SMD) type component, making it suitable for standard pick-and-place automated assembly processes.
Q6: What certifications do your components hold?
A: Our products are manufactured under ISO9001 standards and comply with RoHS, REACH, CE, and UL requirements.
