| Item | Value |
|---|---|

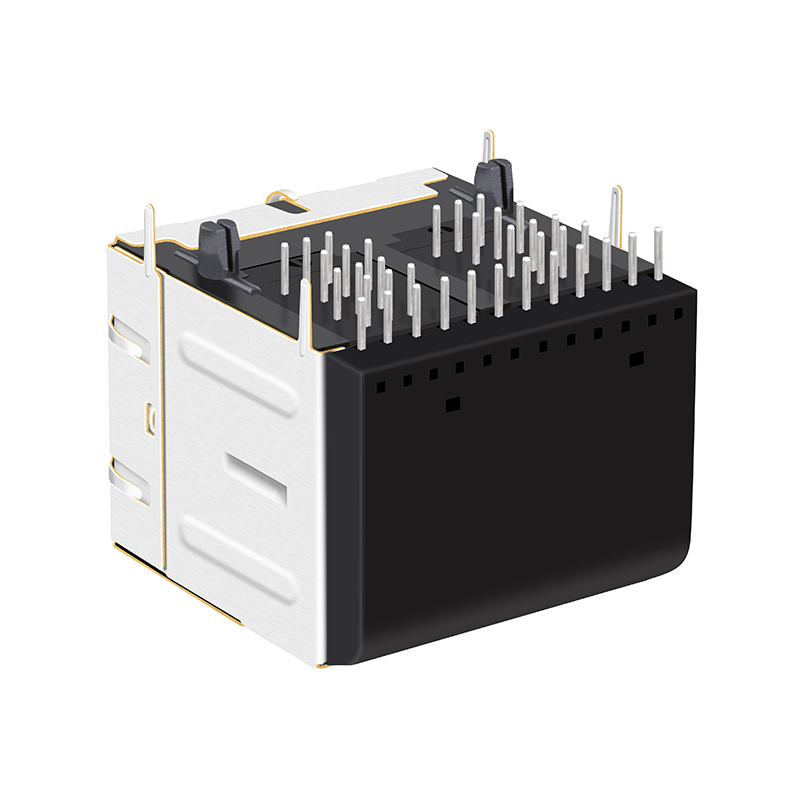

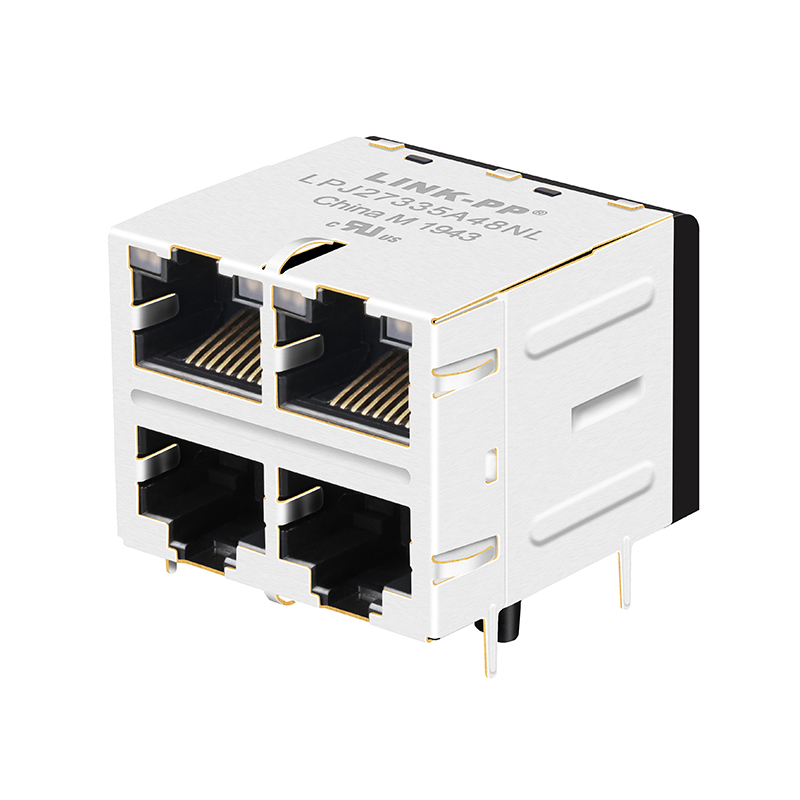

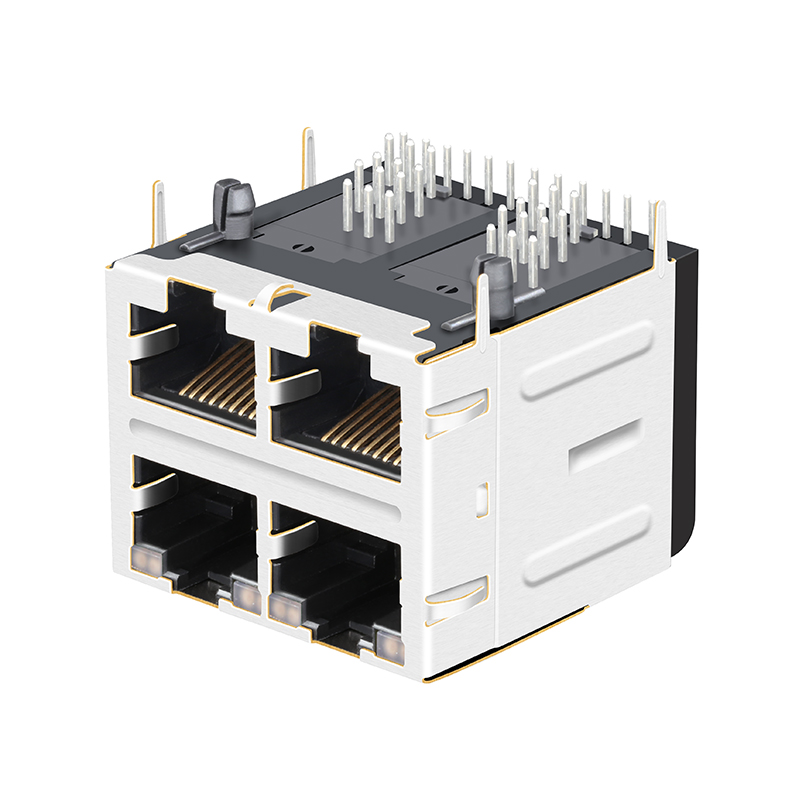

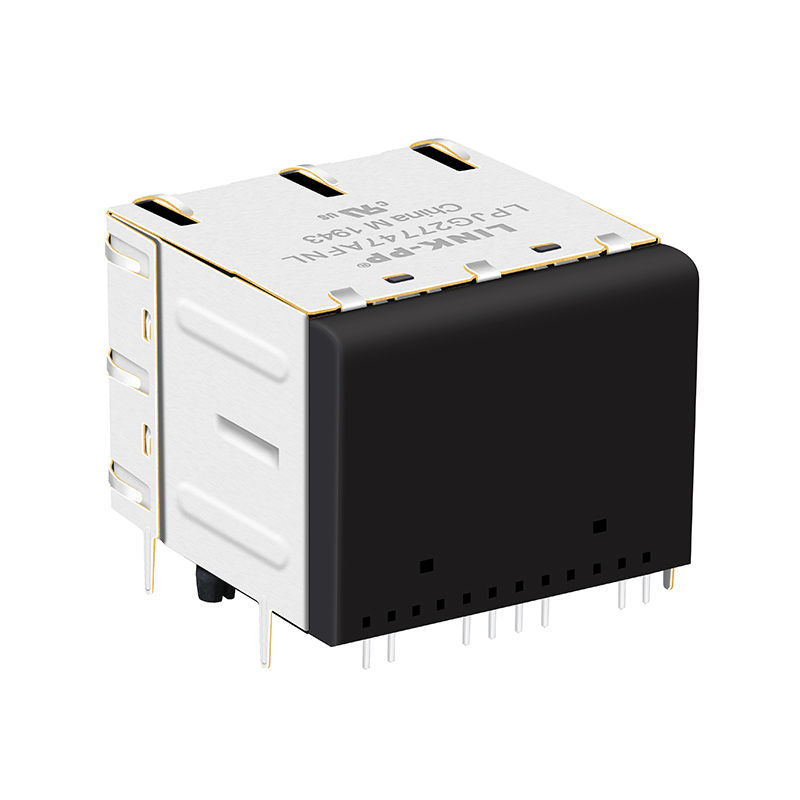

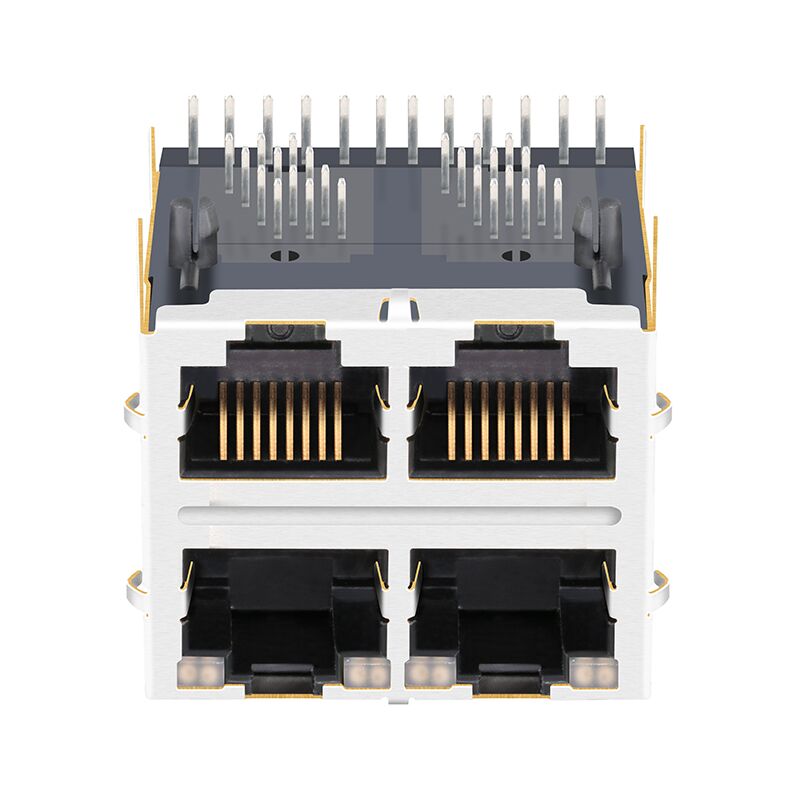

| Part Number | LPJ27335A48NL |
| Cross Reference | JX20-0252NL |
| Part Status | Active |
| Connector Type | RJ45 |
| Applications-Lan | Ethernet(Non_PoE) |
| Speed | 10/100 Base-T, AutoMDIX |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Contact Finish Thickness | 6.00µin (0.152µm) |
| LED Color | Green&Orange/Green&Orange Led |
| Number of Cores per Jack | 4 |
| Shielding | Shielded, Emi Finger |
| Number of Ports | 2x2 Port |
| Features | Board Guide |
| Tab Direction | Both |
| Contact Finish | Gold |
| Configuration RX/TX | T,C |
| Turns Ratio RX/TX | 1CT:1CT |
| Operating Temperature | -40°C ~ 85°C |
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. Our facility owns advanced manufacturing facilities and test equipments imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to delivery the goods within the short time. Moreover, we can provide the professional complete solution for magnetic components and strong technical support as well.
Our products are widely used in networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem.
