IEEE 802.3 1000BASE-T LAN Magnetic Transformer HST-24002SAR / HST-24002SXAR

Product Description

LAN Magnetic Transformer Overview

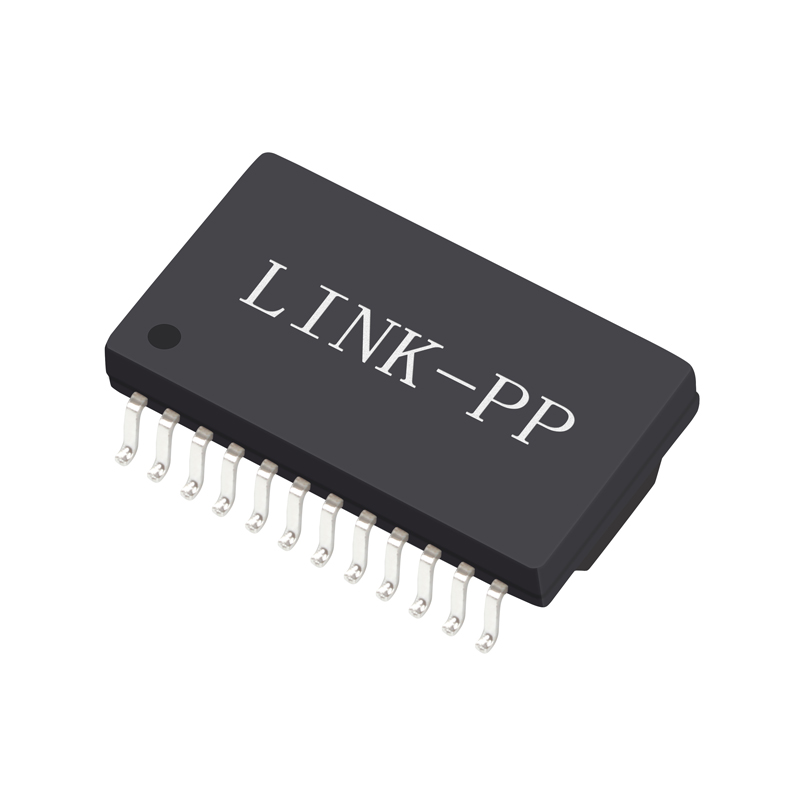

IEEE 802.3 1000BASE-T LAN Magnetic Transformer HST-24002SAR / HST-24002SXAR
📋 Products Description
ItemLan Transformer
Replaceable ModelHST-24002SAR / HST-24002SXAR
Part StatusActive
ConstructionOpen Frame
Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet (Non-PoE)
Number of Ports1 Port
Speed1000 Base-T
Cores per Port8
Pin Number24 Pin
Mounting TypeSMT
Temperature0℃ TO 70℃
Auto-MDIXYES
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT, C, S
PackageTape & Reel
Transformer Detail 1
Transformer Detail 2
Transformer Detail 3
Transformer Detail 4
Transformer Detail 5
Technical Specification Drawing 1
Technical Specification Drawing 2
Why Choose Us
Quality Assurance
Production Power
Testing Equipment
Professional Support
🏢 Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. Our facility owns advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have a large dedicated staff and abundant productive capacity to ensure short delivery times. We provide professional complete solutions for magnetic components and strong technical support. Our main products include 10/100/1000M LAN pulse transformers, filters, and RJ45 connectors with integrated magnetics. These products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, Mainboards, SDH, PDH, IP Phones, and xDSL modems. We have exported our solutions to more than 30 countries and regions worldwide, serving global requirements with high standards and technical excellence.
Factory View 1
Factory View 2
Factory View 3
Factory View 4
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, though shipping fees are typically covered by the customer.
What is your delivery time?
We have items ready to ship for stock orders, and mass production typically takes 15-30 days.
What after-service do you offer?
We provide a one-year guarantee period and offer 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we welcome OEM and ODM inquiries for detailed discussion to meet your unique requirements.
What is your advantage in this industry?
We have over 19 years of professional production experience and maintain long-term partnerships with major global technology leaders.
Product Certificate/Final View
