Product Description

LAN Magnetic Transformer

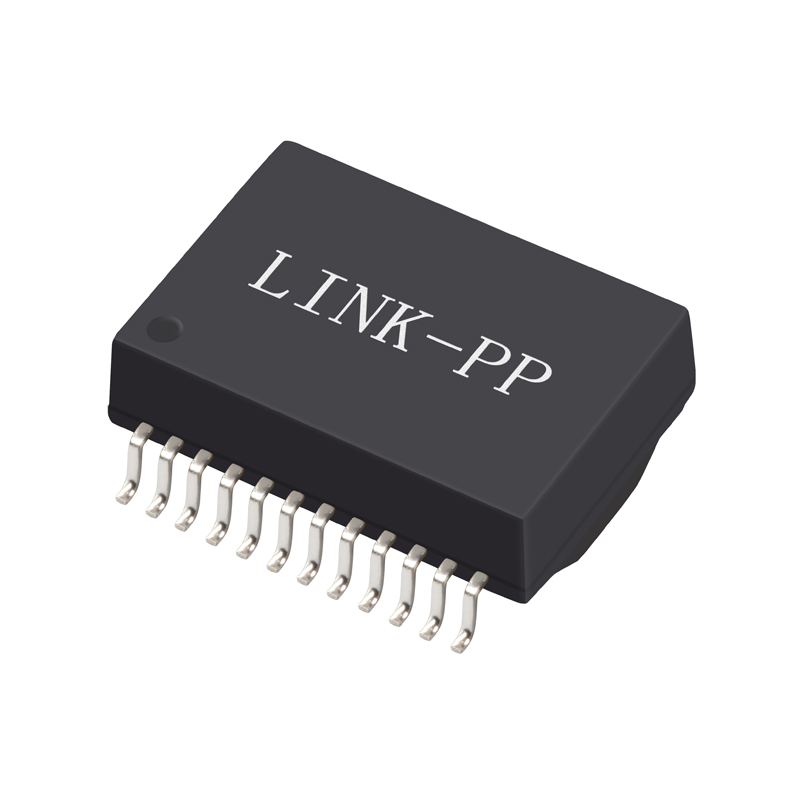

IEEE 802.3 standard 1000 BASE-T LAN Magnetic Transformer HST-24056SXCR / HST-24076SCR
Products Description
Item Lan Transformer
Replaceable Brand Model HST-24056SXCR / HST-24076SCR
Part Status Active
Construction Open Frame
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1 Port
Speed 1000 Base-t
Pin Number 24 Pin
Mounting Type SMT
Temperature 0℃ TO 70℃
AutomDX YES
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C,S
Package Tape & Reel
Why Choose Us
✔
Advanced manufacturing facilities and imported test equipment for superior quality control.
✔
Abundant productive capacity ensuring short delivery lead times for large orders.
✔
Comprehensive professional solutions for magnetic components and robust technical support.
Company Profile

We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. Established in 1997, our team consists of approximately 2000 staff members. With a monthly productive capacity of 3000K, we ensure timely delivery and professional technical support.

Main Products include 10/100/1000M LAN pulse transformers and filters, RJ45 connectors with integrated magnetics, T1/E1, T3/DS3/E3/STS-1 interface transformers, and ISDN, HDSL, ADSL, VDSL splitters. Our products are widely used in HUBs, PC cards, Switches, Routers, Mainboards, and IP Phones across more than 30 countries.

Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples for quality testing, though shipping fees apply.
What is your typical delivery time?
Stock items are ready to ship immediately; mass production typically takes 15-30 days.
What kind of after-service do you provide?
We provide a one-year guarantee period along with 24-hour online technical support.
Do you accept OEM/ODM orders?
Yes, we welcome OEM/ODM requirements. Please contact us to discuss your specific needs.
What are your main advantages?
With over 19 years of production experience, we have established long-term partnerships with major global industry leaders.
