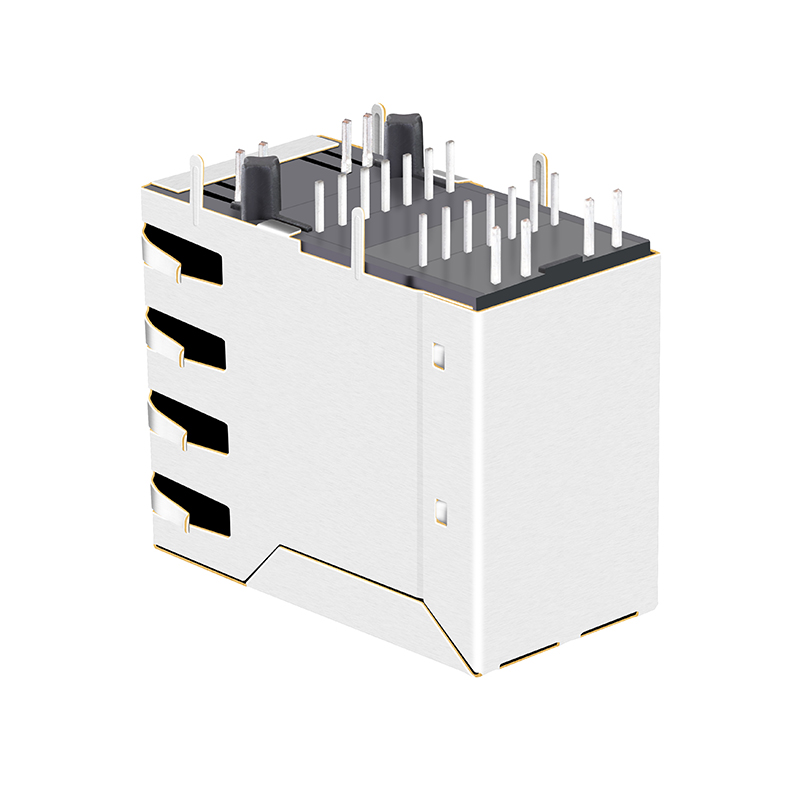

| Part Number | 0845-2D1T-H5 / 0845-2D1T-S4 / RM3-ZZ-0020 |
| Application-LAN | ETHERNET (NON PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX / TX | T, C / T, C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores Per Port | 4 |
| Diodes | NO DIODES |
| LED Option | Yellow/Green LEDS |
| Latch | UP/Down |
| Number of Ports | 2x1 Port |
| PCB / Mount Angle | FR4 / SIDE ENTRY |
| PCB Retaining Post | T POST |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Speed | 10/100 Base-T Magnetics |
| Temperature Range | -40 TO 85°C / 0 TO 70°C |
| Turns Ratio RX / TX | 1CT:1 / 1CT:1 |
Leading Supplier Of Integrated RJ45 Connectors And Discrete Magnetic Transformers
A1: These modular jacks are designed for 10/100 Base-T Ethernet applications (Non-PoE), providing stable connectivity for networking hardware, industrial controllers, and embedded systems.
A2: Yes, it is available in configurations supporting temperatures from -40°C to +85°C, making it suitable for both commercial and harsh industrial environments.
A3: This specific model features Yellow and Green LED indicators to show link activity and network status clearly.
A4: Yes, the component is RoHS compliant, meeting international environmental standards for lead and other hazardous substances (with applicable solder exemptions).
A5: The contacts feature gold plating available in 6u", 15u", or 30u" thicknesses to ensure high conductivity and durability over multiple mating cycles.
A6: Absolutely. We provide new design solutions based on specific customer requirements, including different pin configurations or mounting angles.
