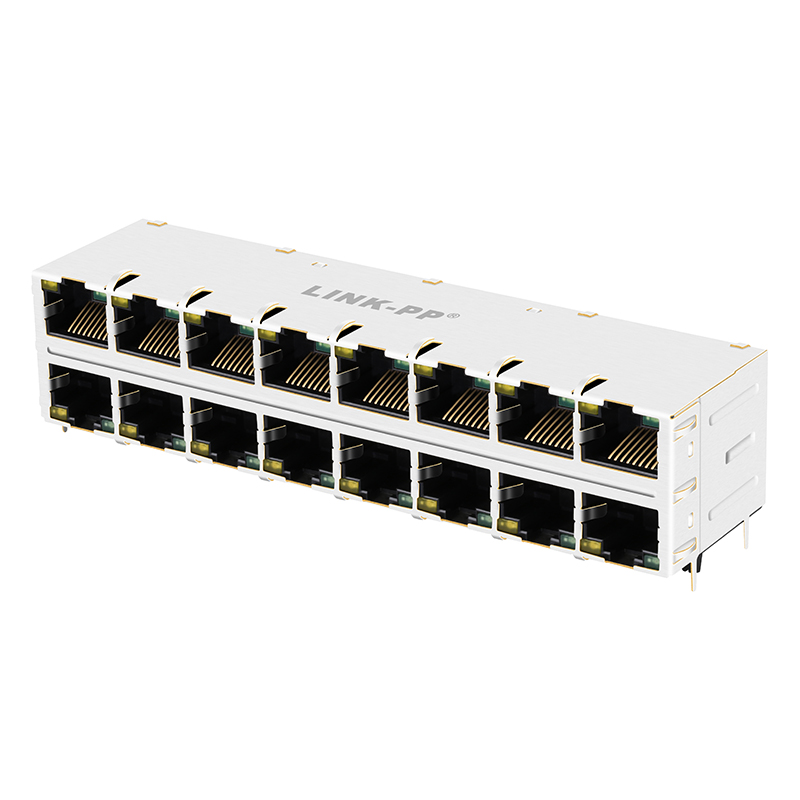

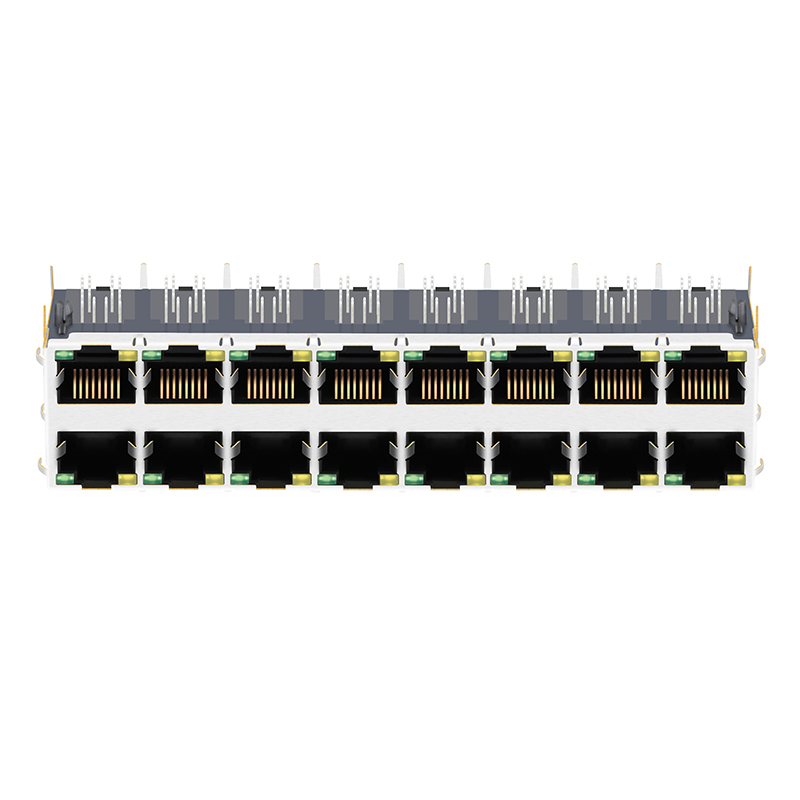

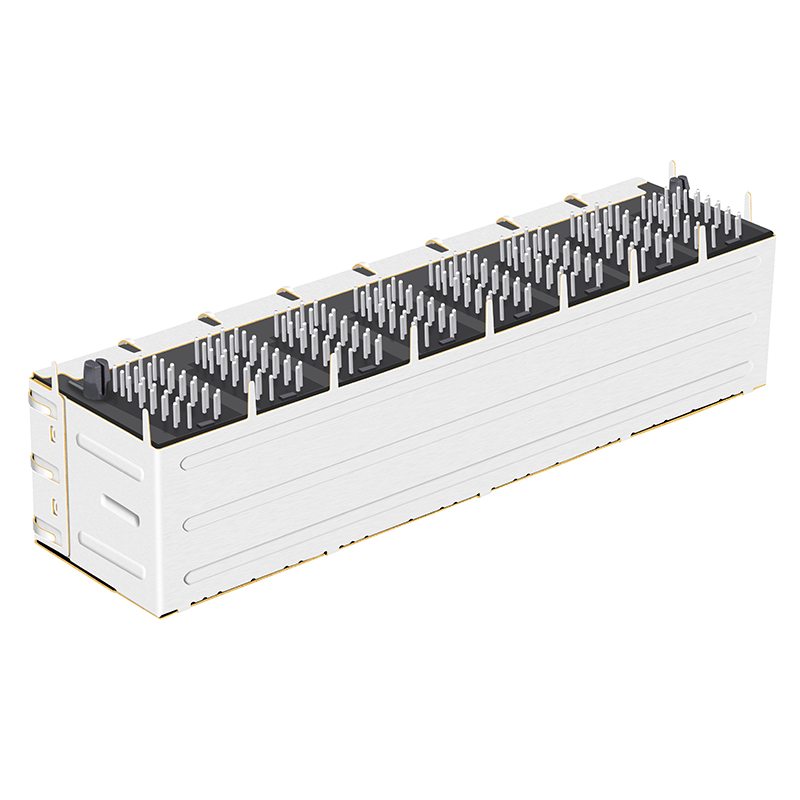

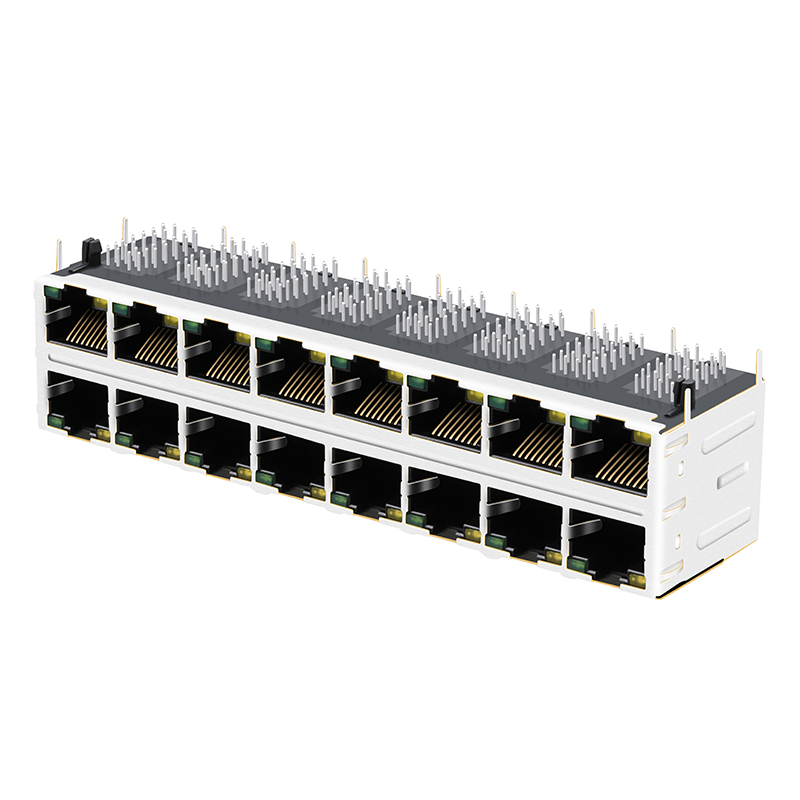

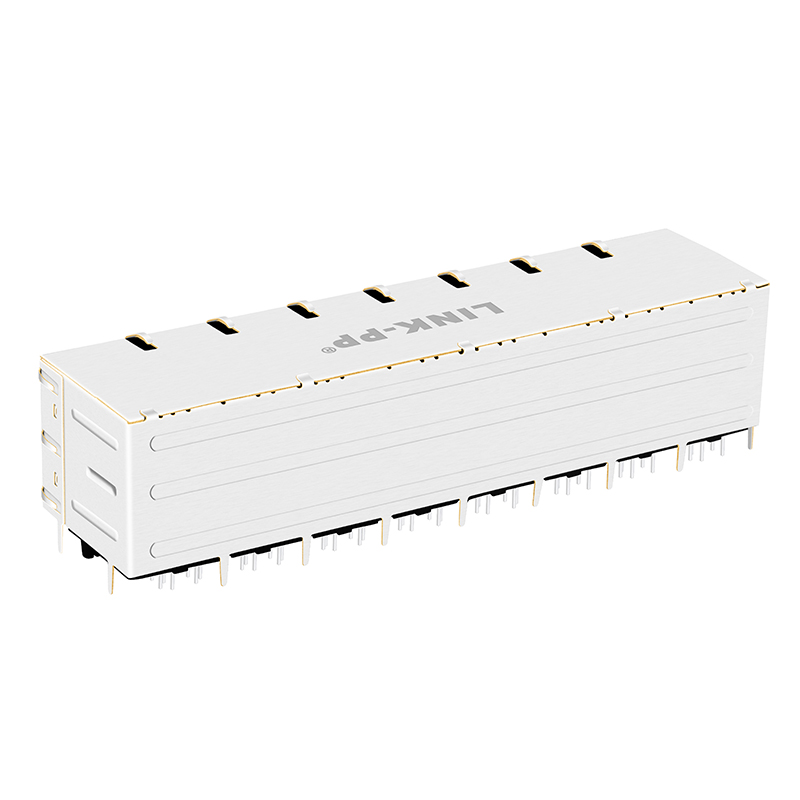

2 * 8 Port RJ 45 Jack , Shielded 16port RJ45 Connector J2042H3B J2045H3C J2039H3C 0853-2X8R-69

Send Inquiry

Product Description

Part Number	RJ45 connector
Application-LAN	ETHERNET (NON POE)
AutoMDIX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores Per Port	8
Diodes	NO DIODES
LED Option	WITH LEDS
Latch	Up/Down
Number of Ports	2x8 (16 Ports)
PCB Material	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Shield EMI Tabs	Shield, EMI Finger
Speed	10/100/1000 Base-T
Temperature	-40°C ~ 85°C
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1

🏆 World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

📜 Professional Certification

🛡️ 100% Guarantee Quality

💰 Competitive Price And Service

Frequently Asked Questions

1. What is the maximum data speed supported by this 16-port RJ45 connector?

This connector supports high-speed networking with 10/100/1000 Base-T Gigabit Ethernet performance.

2. Does this RJ45 jack support Power over Ethernet (POE)?

No, this specific model (J2042H3B / 0853-2X8R-69) is designed for non-POE Ethernet applications.

3. What are the environmental operating conditions for this part?

The connector is designed for industrial-grade durability, operating within a temperature range of -40°C to +85°C.

4. What type of plating is used on the contact mating area?

The contacts feature high-quality gold plating, available in options of 6u", 15u", or 30u" to ensure reliable connectivity and corrosion resistance.

5. Is the product compliant with international standards?

Yes, it is fully compliant with RoHS and REACH regulations and is manufactured under an ISO 9001:2008 certified quality system.

6. What mounting style does this RJ45 jack use?

This is a Through-Hole Technology (THT) solder type with a side-entry (Right Angle) PCB mount angle.
