100 Base-T Single Port Through Hole Magnetics Transformer BD16A01
Product Specifications
| Item | Lan Transformer |
| Replaceable Model | BD16A01 |
| Part Status | Active |
| Construction | Open Frame |
| Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application | Ethernet (Non-PoE) |
| Number of Ports | 1 Port |
| Speed | 100 Base-T |
| Cores per Port | 4 |
| Pin Number | 12 Pin |
| Mounting Type | DIP (Through Hole) |
| Operating Temperature | 0℃ TO 70℃ |
| Auto-MDIX | YES |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T, C, S |
| Package | Tape & Reel |

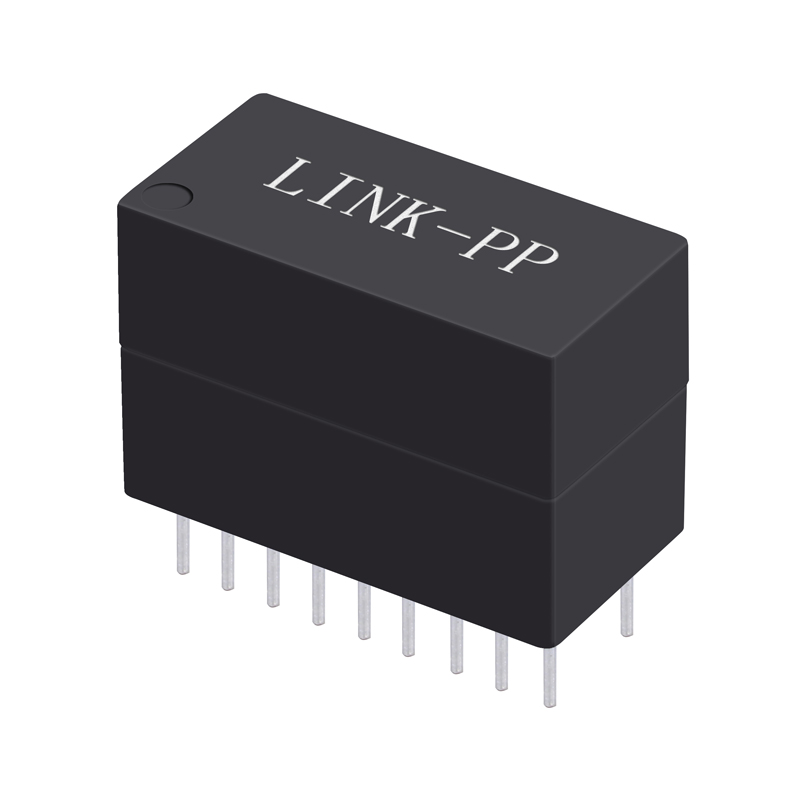

Product Display
Why Choose Our Solutions
Professional Capabilities
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. Our facility owns advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With an abundant productive capacity of 3000K per month, we are able to deliver goods within short lead times. We provide professional complete solutions for magnetic components and strong technical support.
Main Product Range:

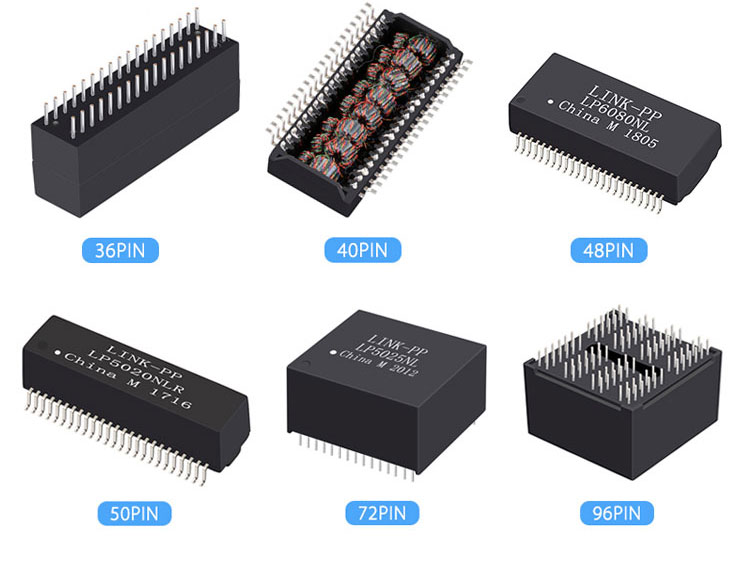

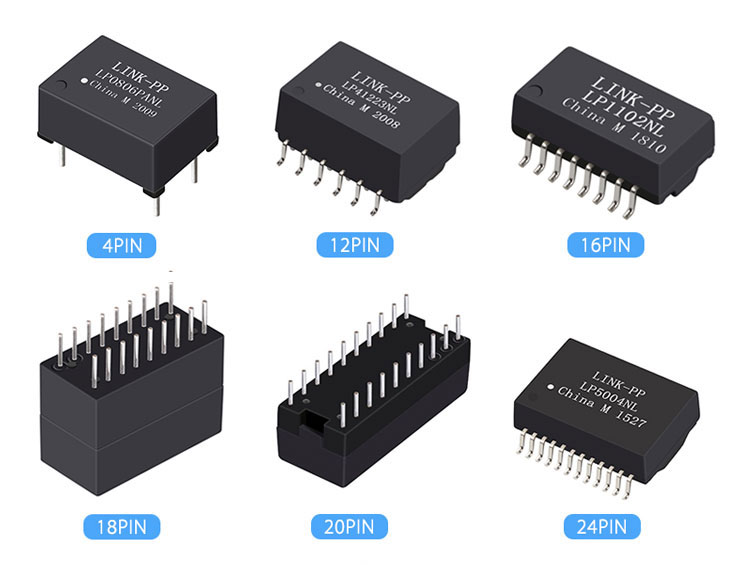

- 10/100/1000M LAN pulse transformer and filter
- RJ45 connector with 10/100/1000M magnetic
- T1/E1, T3/DS3/E3/STS-1 interface line transformer
- ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems. We have exported to more than 30 countries and regions globally.
Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples to test quality, though shipping fees are typically covered by the customer.
What is your typical delivery time?
Items in stock are ready to ship immediately; mass production typically takes 15-30 days.
What after-sales service do you provide?
We offer a one-year guarantee period and provide 24-hour online technical support.
Do you accept OEM/ODM orders?
Yes, we welcome OEM and ODM requirements. Please contact us for a detailed discussion.
What are your main advantages?
We have over 19 years of specialized production experience and maintain long-term partnerships with leading global technology firms.
