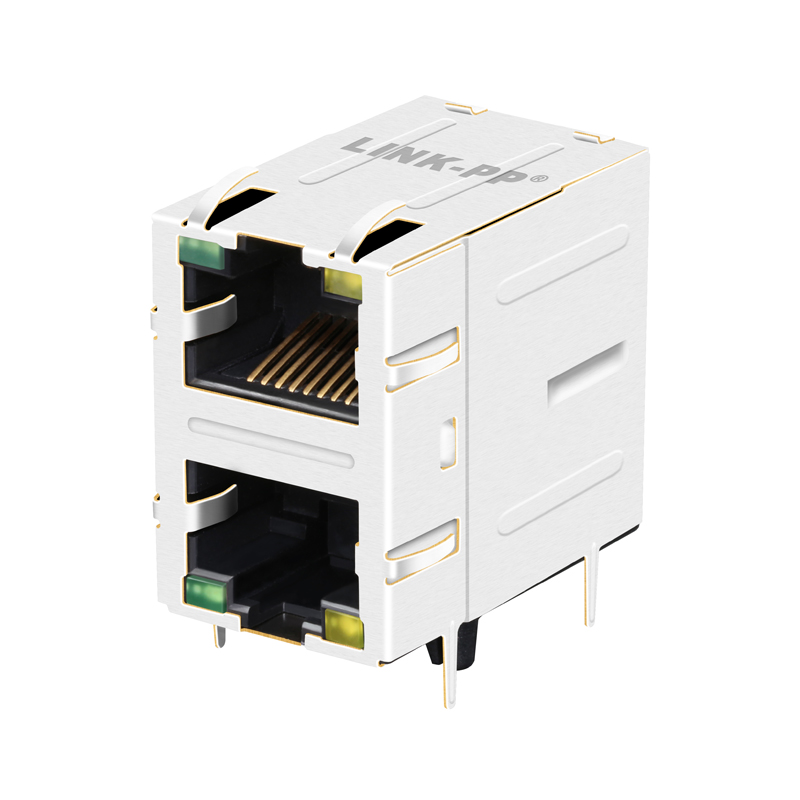

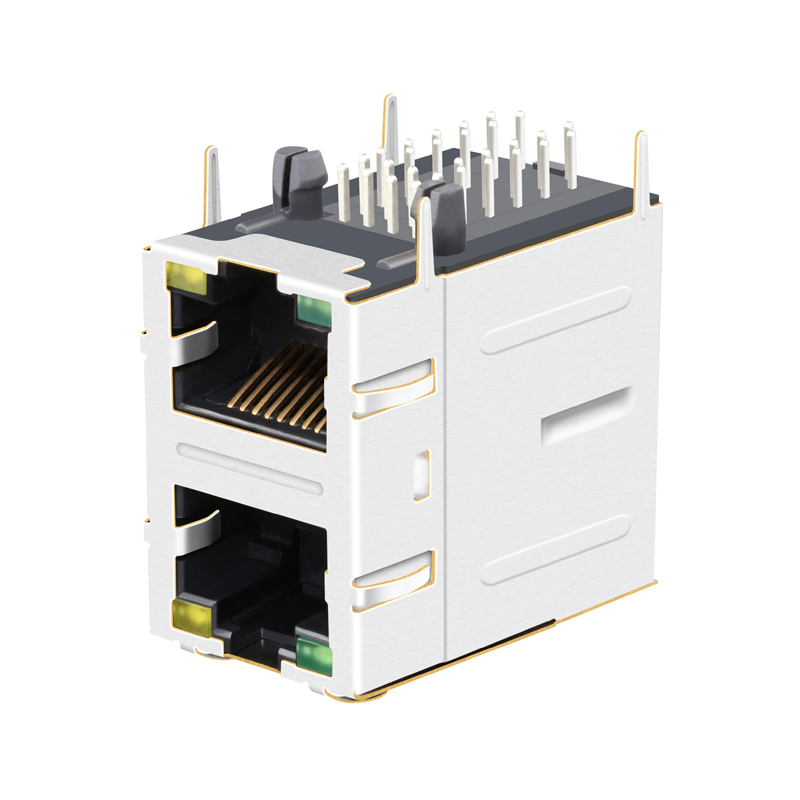

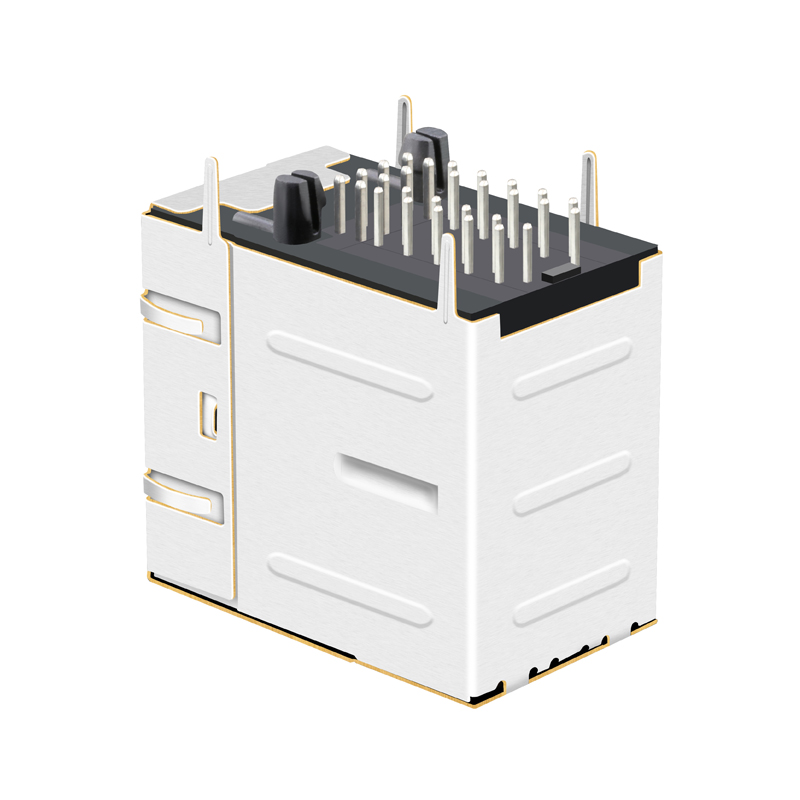

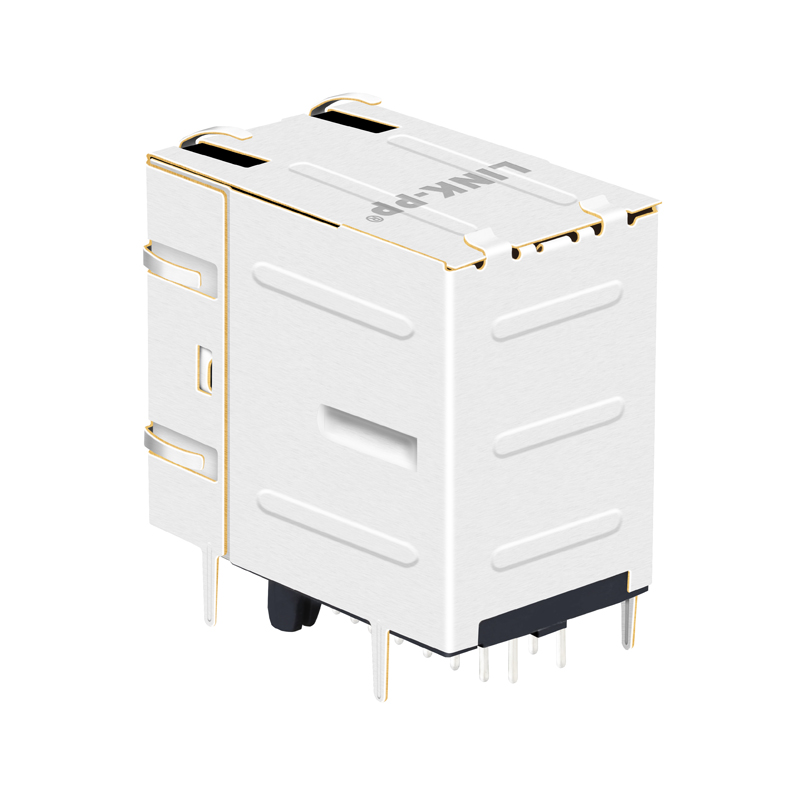

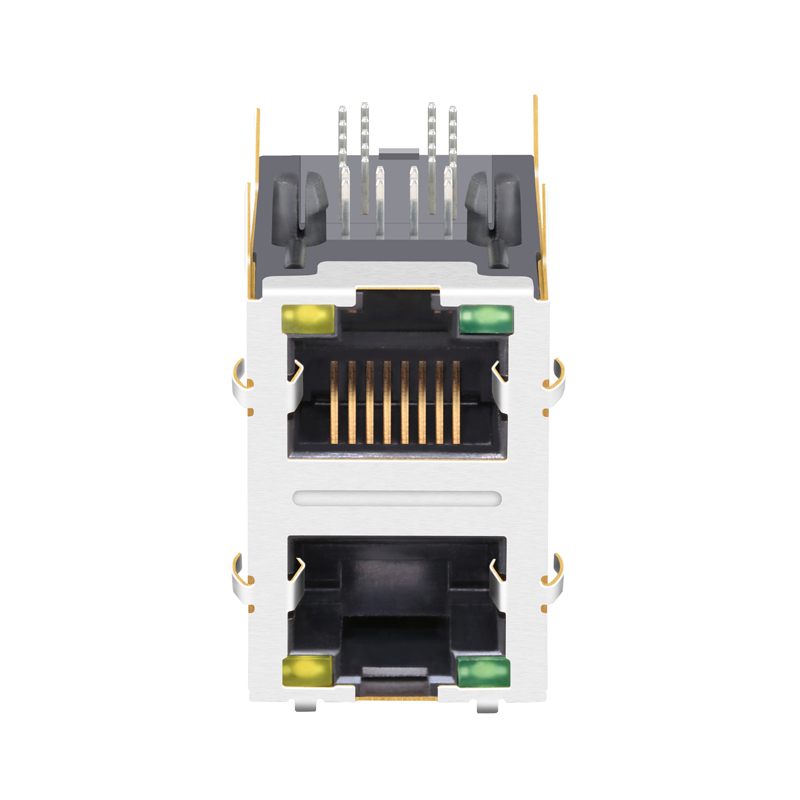

RM3-138A9V1F / RM3-138A9V1Q 1000 Base-T 2X1 Port Ethernet RJ-45 Connector

Product Description

RJ45 Connector Overview
RM3-138A9V1F / RM3-138A9V1Q 1000 Base-T 2X1 Port Ethernet RJ-45 Connector
📋 Products Description
ItemRJ45 Female Connector
Part NumberLPJG17512A8NL
Compatible WithRM3-138A9V1F
Part StatusActive
Connector TypeJack
Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet(NoN PoE)
Number of Ports1x1 Port
Speed10/100/1000 Base-T
LatchDown/Up
Cores per Port4
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithout/With
LED OptionGreen/Yellow
PCBFR4
PCB Retaining PostT POST
Temperature0℃ TO 70℃ / -40℃ TO 85℃
Bst CircuitYes
AutoMDXYES
PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C
Product Detail View
Product Range
🏭 Manufacturing & Quality Control
Process Warehouse
Quality Control Testing
📜 Certification & Standards
Certificate 1 Certificate 2
🏢 Profile
Established in 1997, the professional designer and manufacturer specializes in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.

As a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, serving more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, the commitment remains to be a leading provider of Ethernet RJ45 connectors and LAN transformers.
Factory Facility Production Line Professional Team
Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, free samples are available to test quality, though shipping fees are covered by the customer.
What is your delivery time?
Stock items are ready to ship immediately; mass production typically takes 15-30 days.
What after-service do you offer?
We provide a one-year guarantee period and 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we welcome OEM and ODM inquiries for detailed discussion on custom requirements.
What are your production advantages?
With over 19 years of production experience, we have established long-term partnerships with major global technology leaders.
