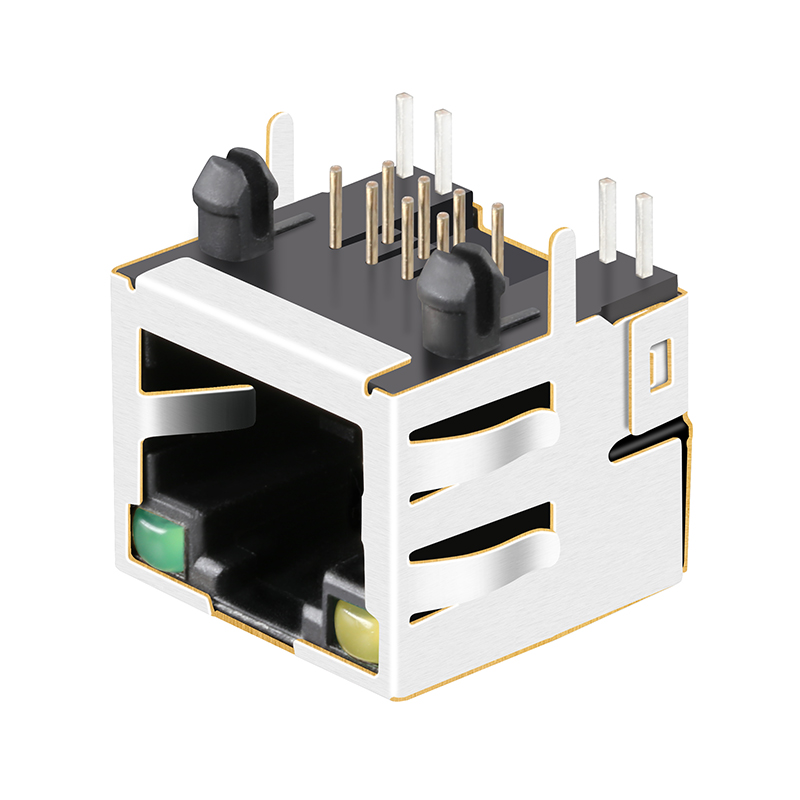

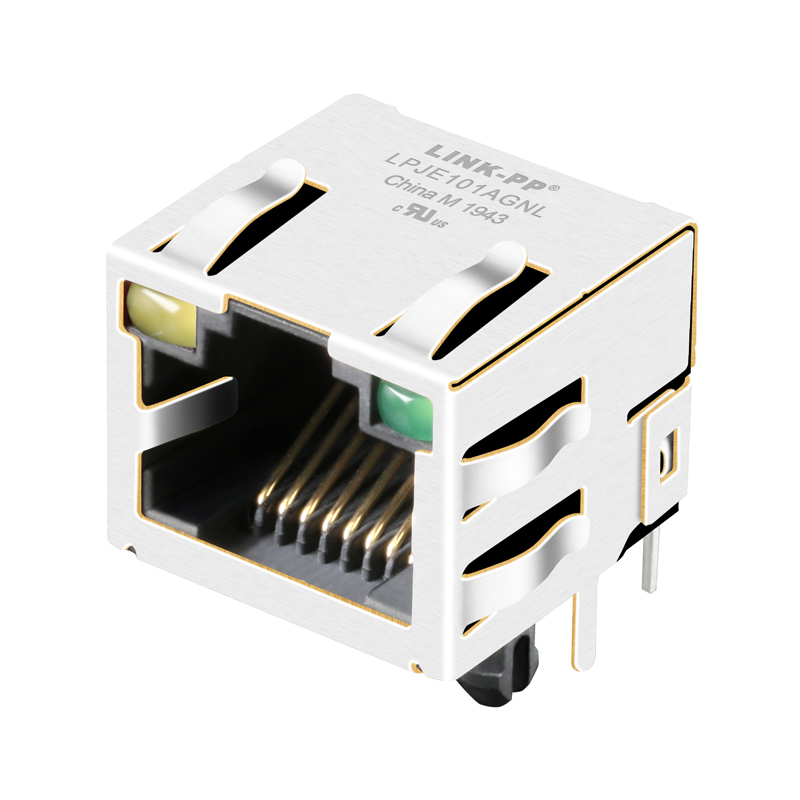

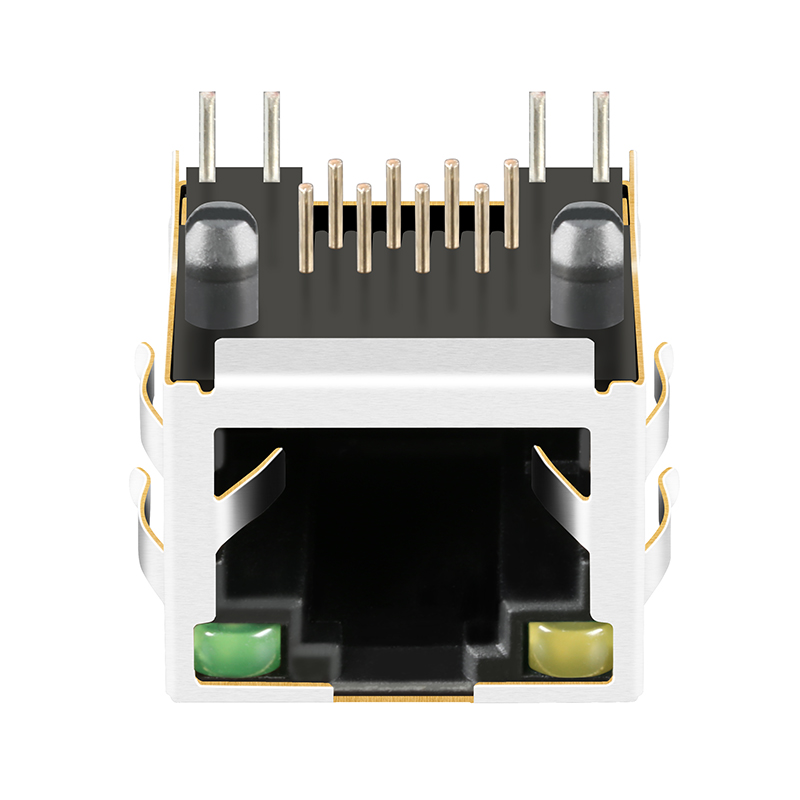

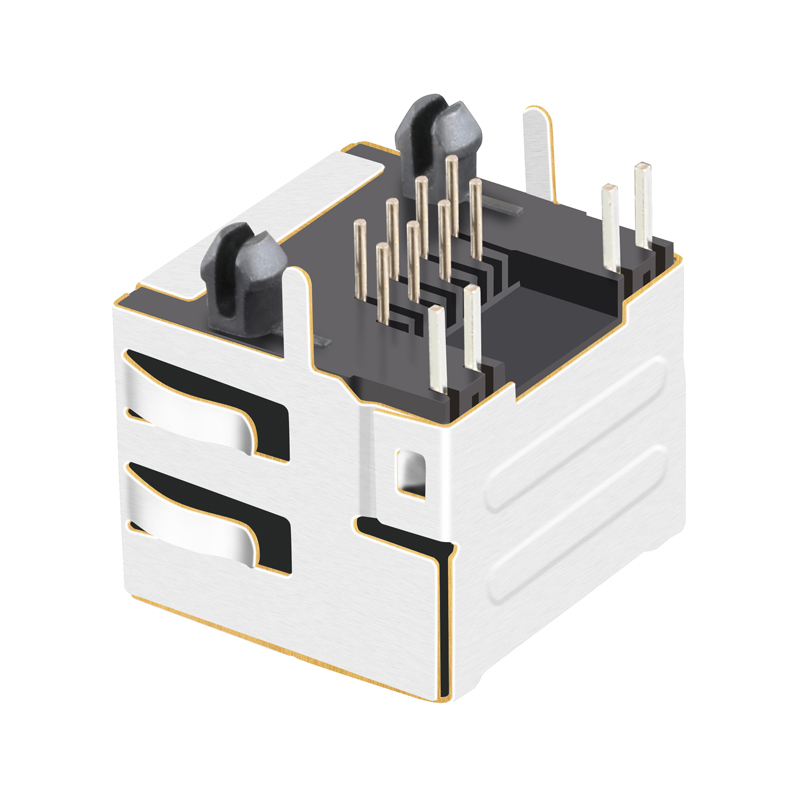

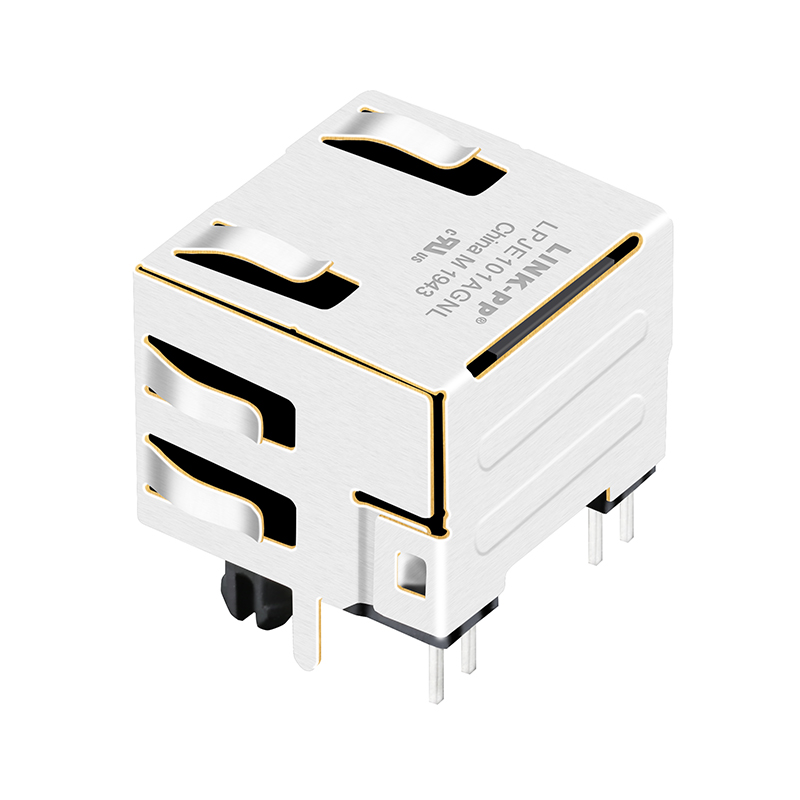

2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector

Product Description

Specification

Item	Value
Model Number	LPJE101AGNL
Part Status	Active
Connector Type	RJ45
Applications-Lan	-
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Contact Finish Thickness	6.00µin (0.152µm)
LED Color	Yellow/Green
Number of Cores per Jack	-
Shielding	Shielded
Number of Ports	Single Port
Features	Board Guide
Tab Direction	Up
Contact Finish	Gold
Configuration RX/TX	T,C
Turns Ratio RX/TX	1CT:1CT
Operating Temperature	-40°C ~ 85°C

Packing & Delivery

The Part Number package: 100 pcs in 1 tray, 3000 tray in 1 carton, which is 54.5*28.5*27cm, 13.1KGS (3000pcs) of each carton.

Production Overview

Characteristics

RJ45 Connector with integrated transformer / common mode choke Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s Available in SMT, THT and THT with USB Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt HPLE products: Improved Common Mode Rejection due to additional NiZn cores.

FAQ

1. Who are we?

We started in 2012, and sell to North America (21.00%), South America (17.00%), Southeast Asia (16.00%), Eastern Europe (16.00%), Africa (9.00%), Oceania (6.00%), Eastern Asia (3.00%), Mid East (3.00%), Western Europe (2.00%), South Asia (1.00%), Northern Europe (1.00%), and Central America (1.00%). There are a total of about 1000+ people in our office.

2. How can we guarantee quality?

Always a pre-production sample before mass production; Always a final inspection before shipment.

3. What can you buy from us?

RJ45 Magnetic, Lan transformer, RJ11 Connector, RJ45 Connector, and SFP modules.

4. Why should you buy from us instead of other suppliers?

1. Specialized manufacturer of RJ45 connectors and LAN transformers.
2. Certified by SGS, ISO9001:2008, UL, REACH, and CE.
3. Over 2600 staff with a productive capacity of 30,000K per week.

5. What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian.
