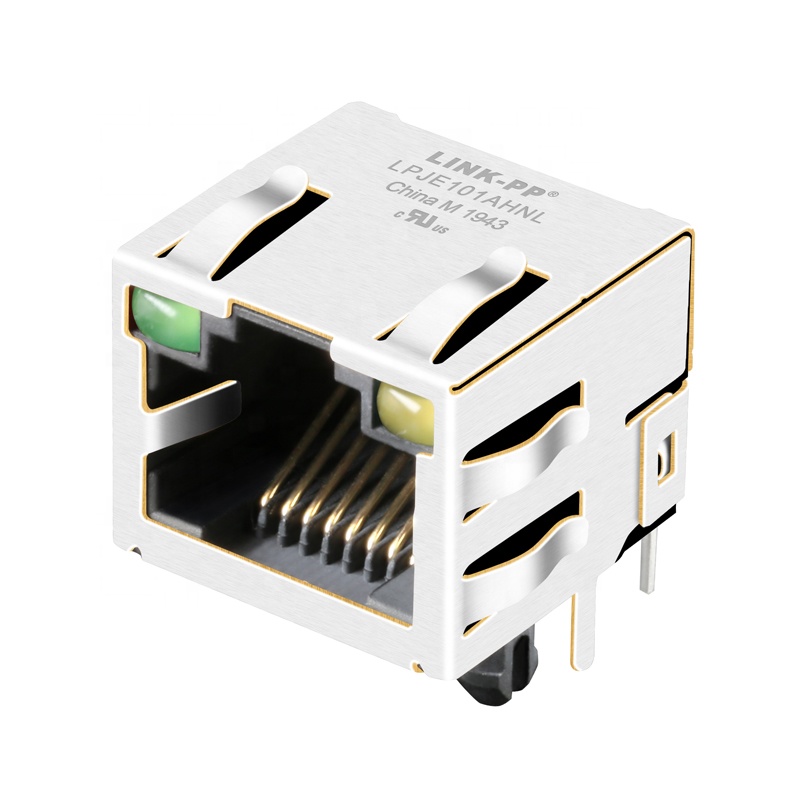

Through Hole Networking Plastic RJ45 Modular Jack W/Y LED 1116173-4
| Original Part Number | 1116173-4 |
|---|
| Alternative Part Number | LPJE101AHNL |
|---|
| Application-LAN | ETHERNET(NON POE) |
|---|
| AutoMDIX | YES |
|---|
| Package Height (Inches/mm) | 0.516/13.10 |
|---|
| Package Length (Inches/mm) | 0.620/15.75 |
|---|
| Package Width (Inches/mm) | 0.640/16.26 |
|---|
| Configuration TX/RX | T,C |
|---|
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
|---|
| Cores Per Port | - |
|---|
| Diodes | No |
|---|
| Latch | Up |
|---|
| LED Option | Green/Yellow LEDS |
|---|
| Number of Ports | 1X1 |
|---|
| PCB Mount Angle | SIDE ENTRY |
|---|
| PCB Retaining Post | T POST |
|---|
| Pin Type | THT SOLDER |
|---|
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
|---|
| Shield EMI Tabs | WITH |
|---|
| Temperature Range | -40 TO 85°C |
|---|
| Turns Ratio RX | 1CT:1 |
|---|
| Turns Ratio TX | 1CT:1 |
|---|
