LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
1 / 5
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector

LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector

Send Inquiry

Product Description

📦 Product Description

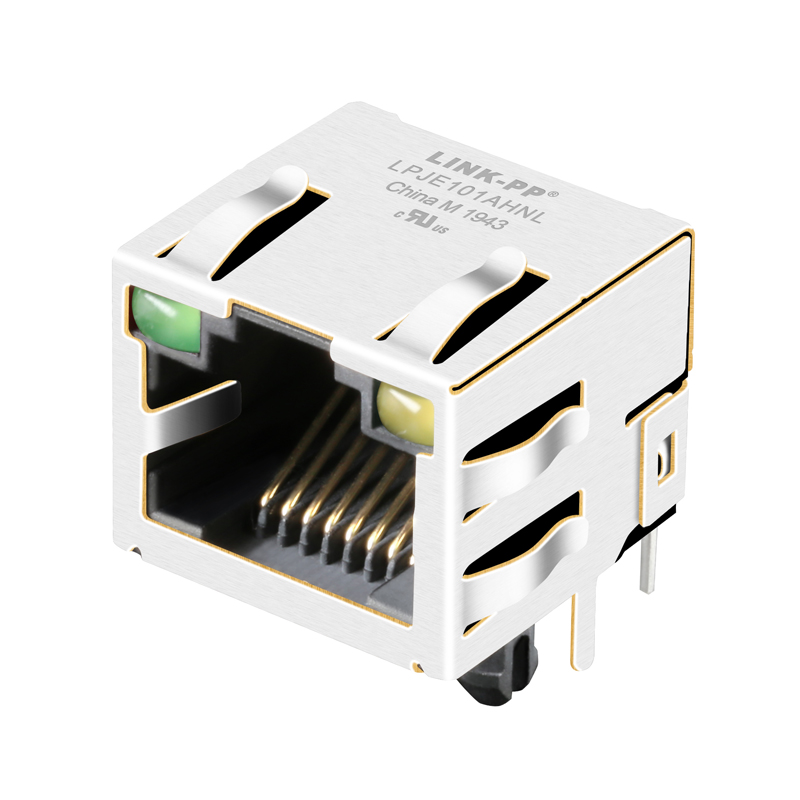

Product View 1

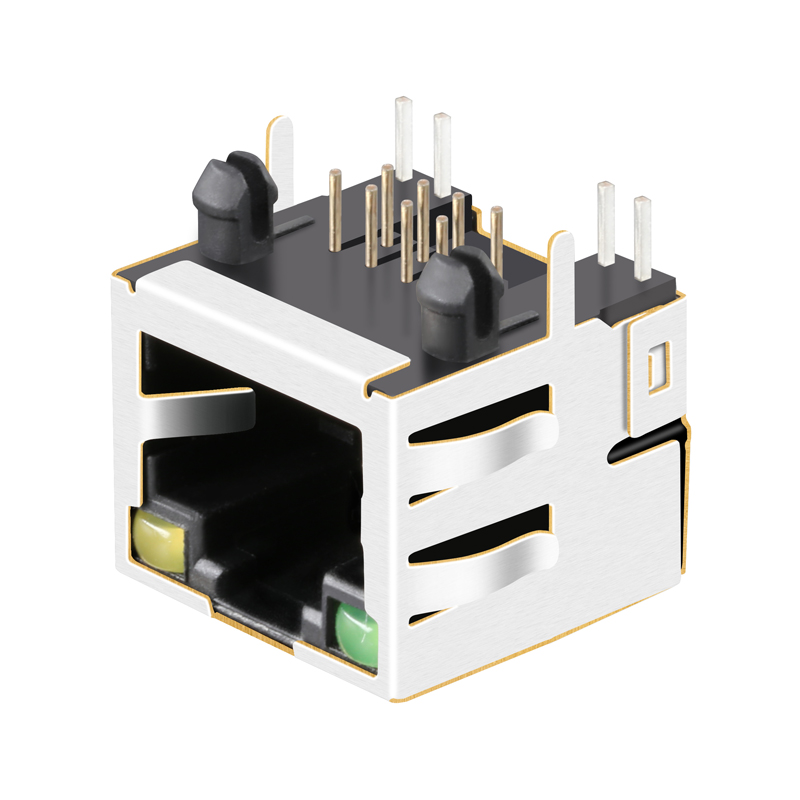

Product View 2
📋 Specification
Item Value
Model NumberLPJE101AHNL
Part StatusActive
Connector TypeRJ45
ApplicationsWithout Magnetics
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorYellow/Green
ShieldingShielded, EMI Finger
Number of PortsSingle Port
FeaturesBoard Guide
Tab DirectionUp
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature-40°C ~ 85°C
🚚 Packing & Delivery
📦
Package Details: Tray packing for safe transportation.
📏
Carton Size: 54.5*28.5*27cm
⚖️
Weight Info: G.W/carton: 13.1kg | N.W/pcs: 0.004kg
🔢
Quantity: 3000pcs/carton (SPQ: 100pcs)
Packing Details
🏢 Company Profile
Facility 1
Facility 2
Facility 3
Facility 4
Facility 5
Certifications
❓ Frequently Asked Questions
1. What is the specific application for the LPJE101AHNL connector?
The LPJE101AHNL is an RJ45 connector designed for applications "Without Magnetics," making it suitable for specific circuit designs where external magnetics are used or not required.
2. Does this RJ45 connector support LED indicators?
Yes, this model features integrated Yellow and Green LEDs to provide clear visual status indicators for network activity.
3. What is the operating temperature range for this component?
The LPJE101AHNL is designed to operate reliably in harsh environments, with a temperature range from -40°C to +85°C.
4. How is the product shielded against interference?
The connector is fully shielded and includes EMI fingers to ensure superior electromagnetic interference protection and grounding.
5. What is the standard packaging quantity for bulk orders?
The standard packaging is in trays, with 3,000 pieces per carton. The Minimum Standard Package Quantity (SPQ) is 100 pieces.
6. What type of mounting and termination does it use?
It features a Through Hole mounting type with a 90-degree (Right Angle) orientation and uses solder termination for secure PCB attachment.
