Home > Low Profile RJ45 Connector > L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds

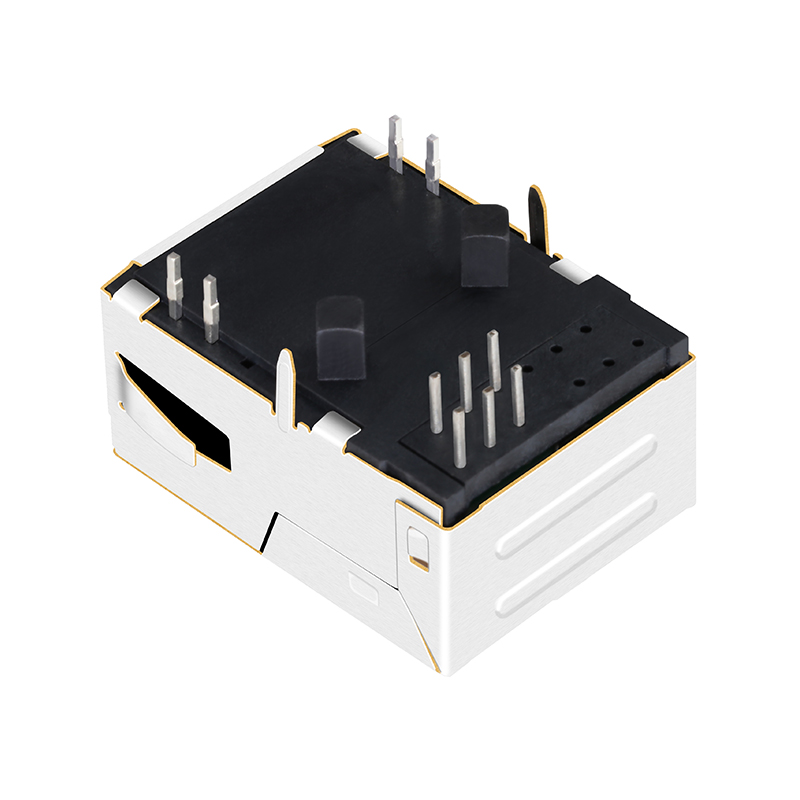

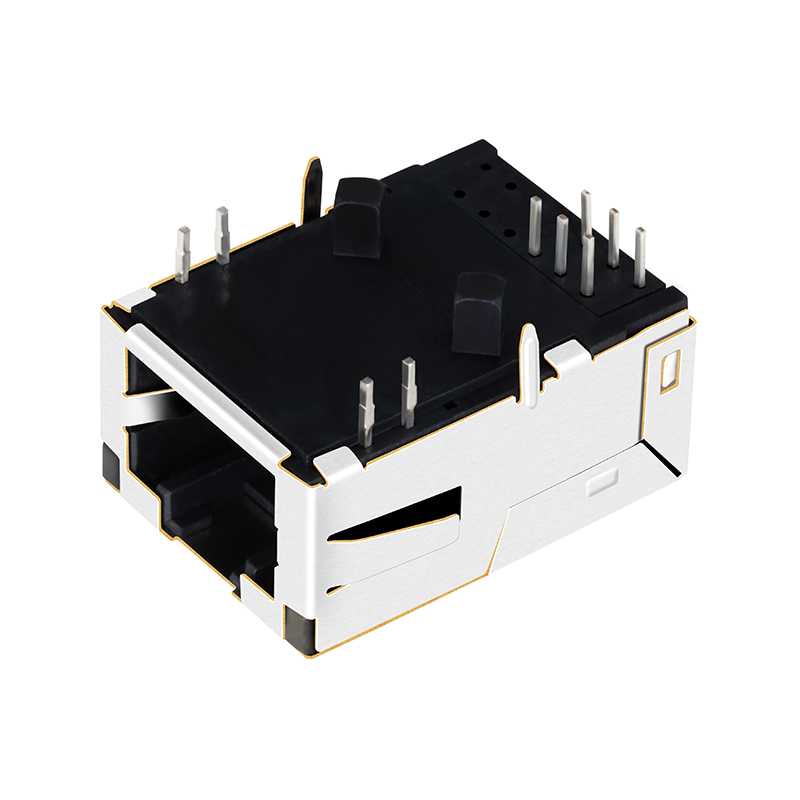

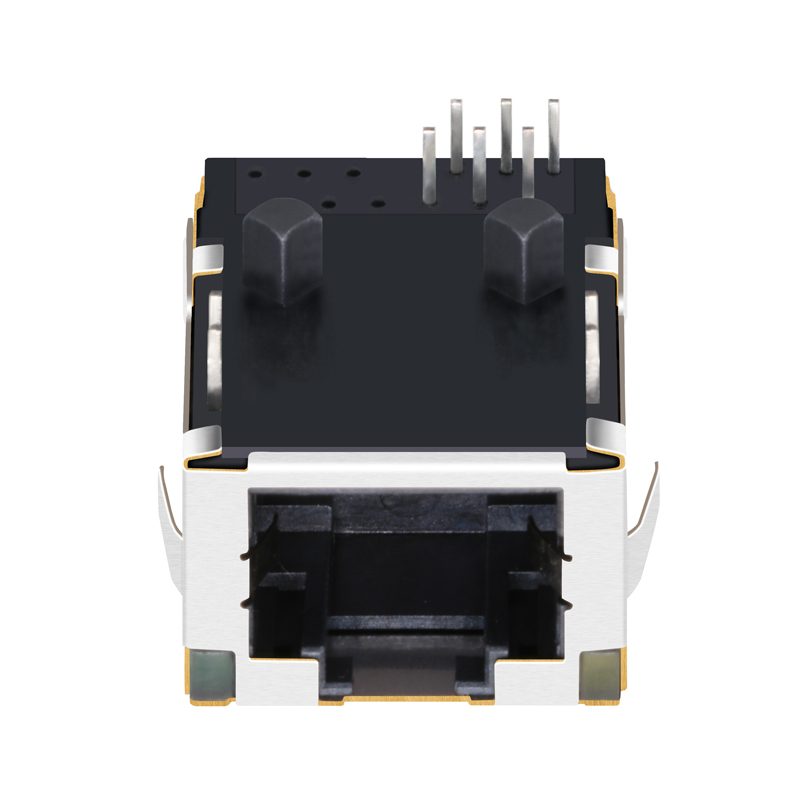

L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds
L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds
L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds
L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds
L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds
1 / 5
L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds
L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds
L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds
L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds
L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds

L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds

Send Inquiry

Product Description

L829-1X1T-91 Tab Up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds
RJ45 Connector Overview
Products Description
ItemRJ45 Female Connector
Part NumberLPJK7001AONL
Compatible WithL829-1X1T-91
Part StatusActive
Connector TypeJack
Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet(NoN PoE)
Number of Ports1x1 Port
Speed10/100 Base-T
LatchUp
Cores per Port4
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWith
LED OptionWith
PCB MaterialFR4
PCB Retaining PostT POST
Temperature0℃ TO 70℃
Bst CircuitYes
AutoMDXYES
PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C
Detail Image 1
Detail Image 2
Technical Drawing
Product View 1
Product View 2
Packaging
Certification
Factory Scene 1
Factory Scene 2
Production Line 1
Production Line 2
Production Line 3
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I request a sample before mass production?
Yes, we can provide free samples for quality testing purposes, though shipping costs are typically covered by the customer.
What is the standard delivery time?
Items in stock are ready to ship immediately. For mass production orders, the lead time is generally between 15 to 30 days.
What kind of after-sales service do you provide?
We offer a one-year guarantee period and provide 24-hour online technical support to assist with any product-related inquiries.
Do you accept OEM or ODM orders?
Yes, we accept both OEM and ODM orders. Please contact us with your specific requirements for a detailed discussion.
What are your core production advantages?
With nearly two decades of production experience, we maintain high standards of quality and have established long-term partnerships with major global technology leaders.
