100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
1 / 5
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector

100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector

Send Inquiry

Product Description

✓
Characteristics
• RJ45 Connector with integrated transformer / common mode choke
• Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s
• Available in SMT, THT and THT with USB
• Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEEE 802.3bt
• HPLE products: Improved Common Mode Rejection due to additional NiZn cores

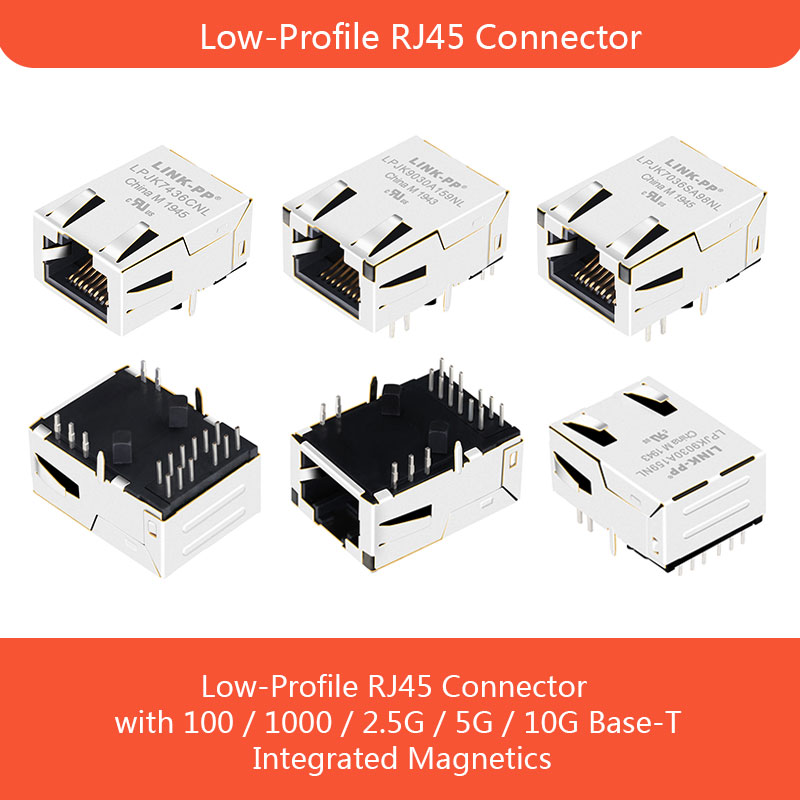

RJ45 Connector Characteristics
⚙
Product Specifications
Model Number Low profile rj45 jack
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet(PoE/Non_PoE)
Speed 10/100/1000/2.5G/5G/10G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores 4/6/8/12
Shielding Shielded, Emi Finger
Number of Ports Single Port
Features Board Guide
Tab Direction Down/Up
Contact Finish Gold
Configuration RX/TX T, C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C / -40°C ~ +85°C
📦
Packing & Delivery
Packaging Details: Tray
Carton Size: 40*32*33cm
G.W./Carton: 12.3kg
Quantity: 1200pcs/carton (SPQ: 50pcs)
Unit Weight: 0.01kg/pcs
Packing details
🖼
Product Gallery

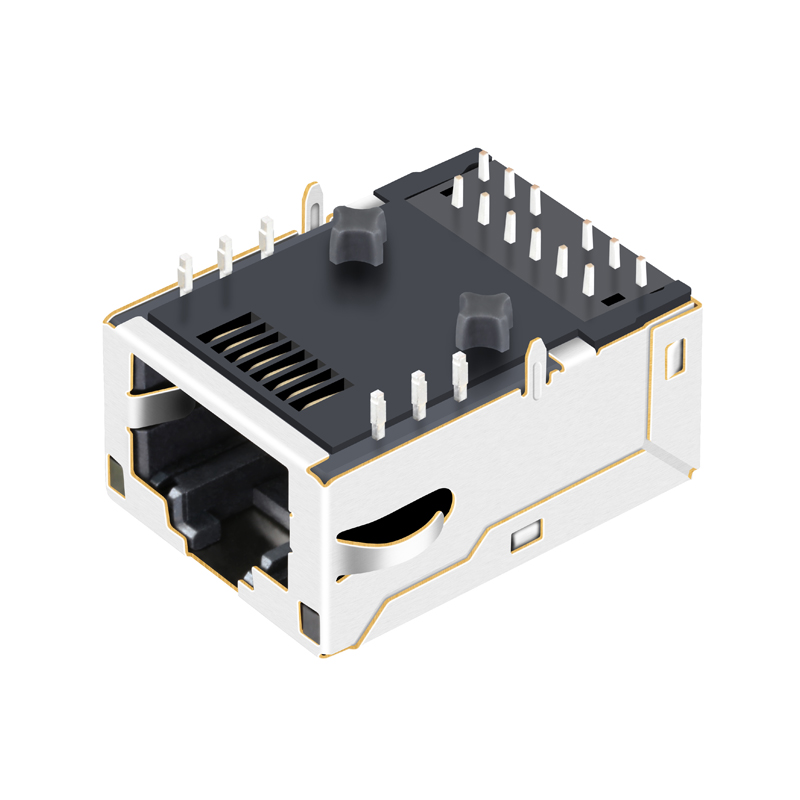

Production View 1

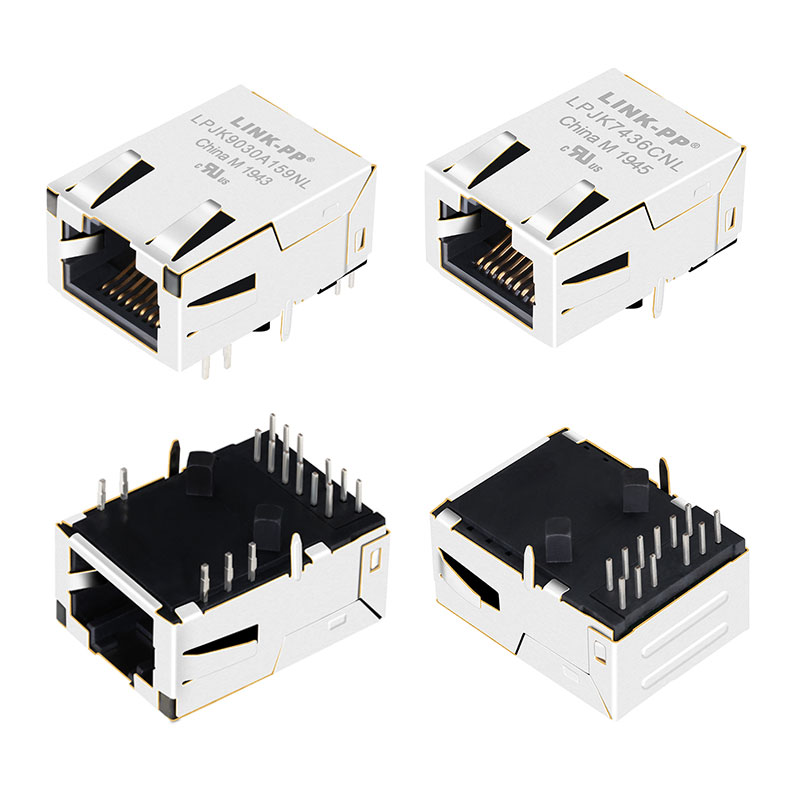

Production View 2

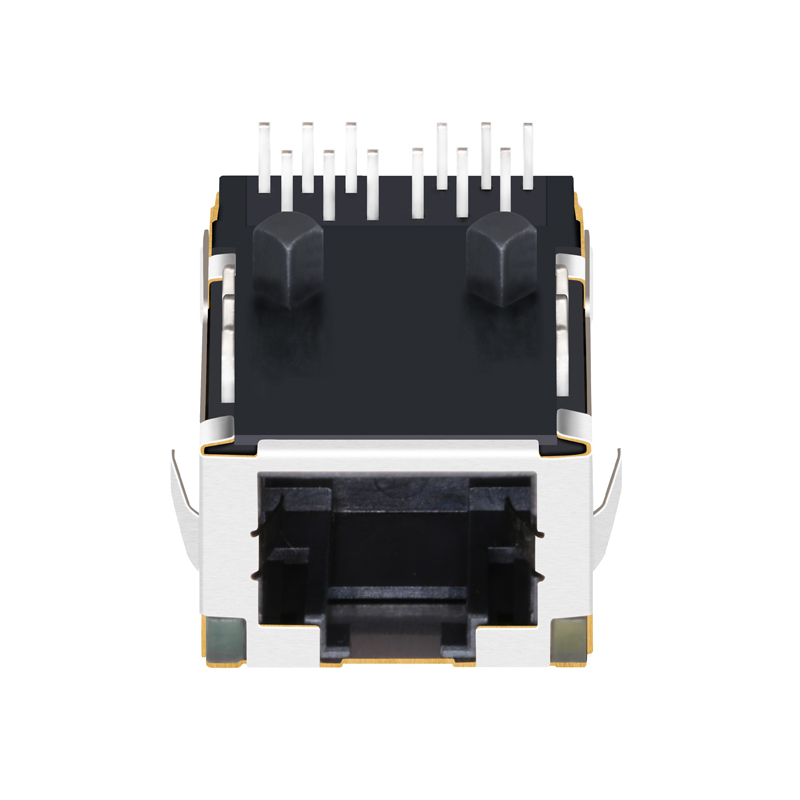

Production View 3

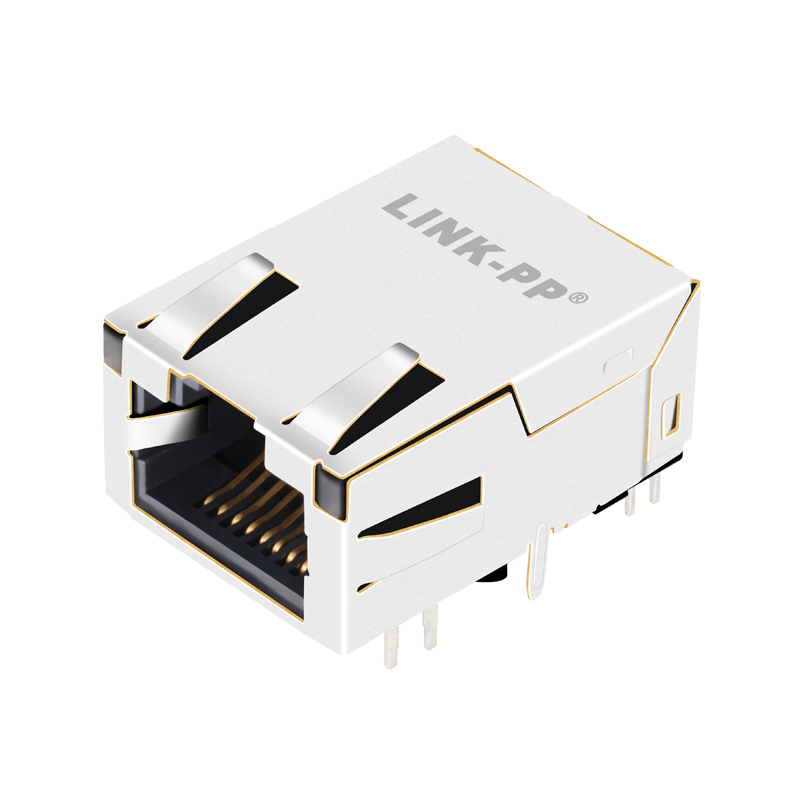

Production View 4

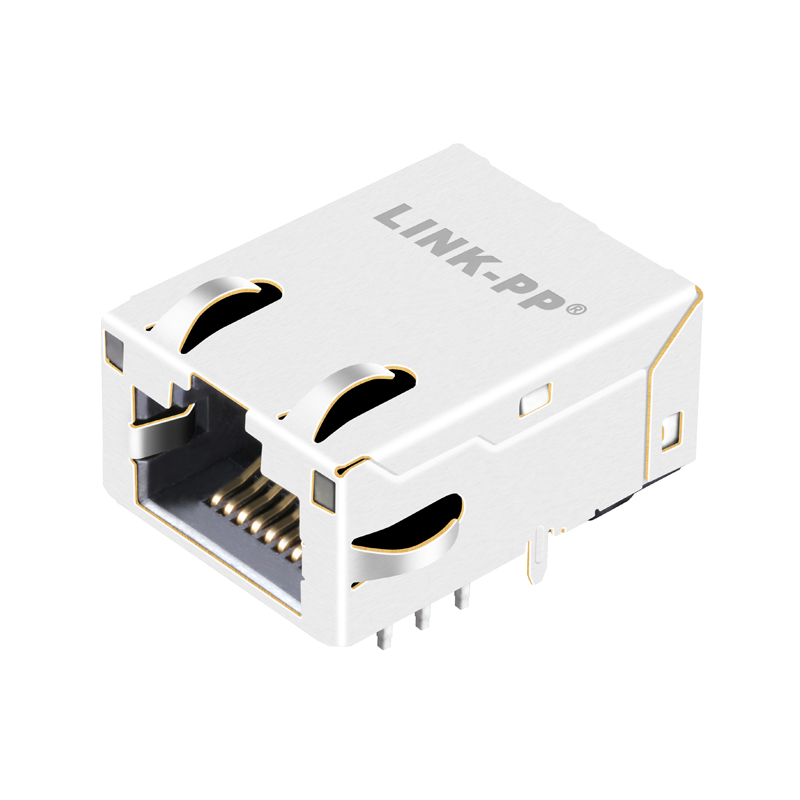

Production View 5
Production View 6
Quality Standard
?
Frequently Asked Questions
What are the main applications for these RJ45 connectors?
These connectors are designed for Ethernet applications, supporting both PoE (Power over Ethernet) and Non-PoE environments. They are suitable for speeds ranging from 10/100 Mbps up to 10 Gbit/s.
How do you ensure the quality of the products?
We maintain strict quality control by always providing a pre-production sample before mass production and conducting a final inspection before every shipment to ensure compliance with standards like ISO9001, UL, and CE.
What specific standards are these connectors compliant with?
Our connectors are compliant with IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, and the upcoming IEEE 802.3bt standards.
What are the technical advantages of the HPLE products?
HPLE (High Performance) products feature additional NiZn cores, which provide significantly improved Common Mode Rejection for better signal integrity.
What is the production capacity and manufacturing experience?
We have 19 years of specialized experience in manufacturing RJ45 connectors and LAN transformers. Our facility maintains a productive capacity of 30,000K units per week.
What payment and delivery terms are accepted?
We accept various delivery terms including FOB, CFR, CIF, EXW, and DDP. Accepted payment methods include T/T, L/C, PayPal, and Western Union in multiple currencies like USD, EUR, and JPY.
