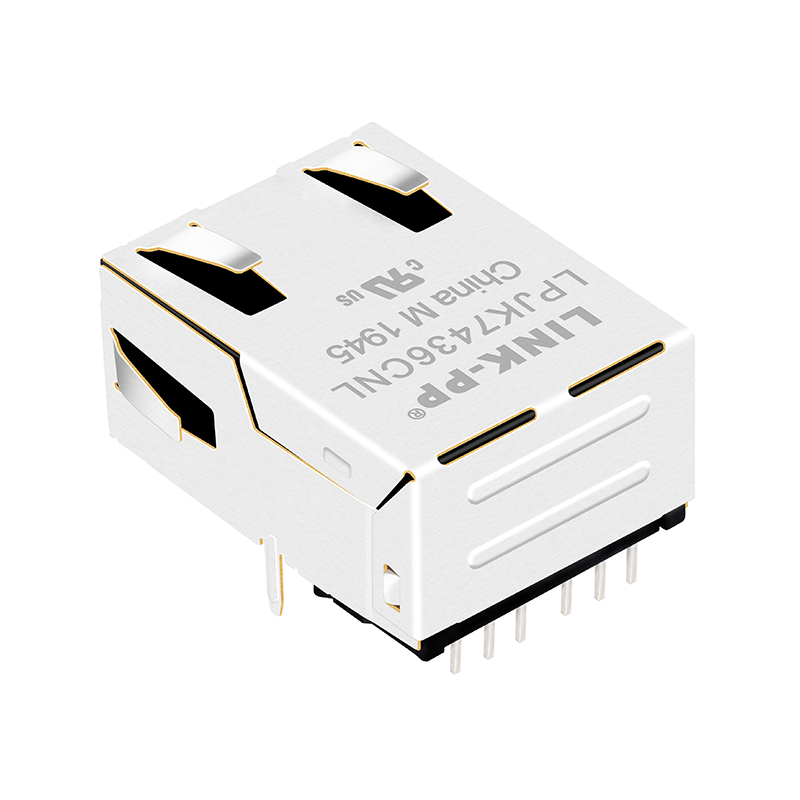

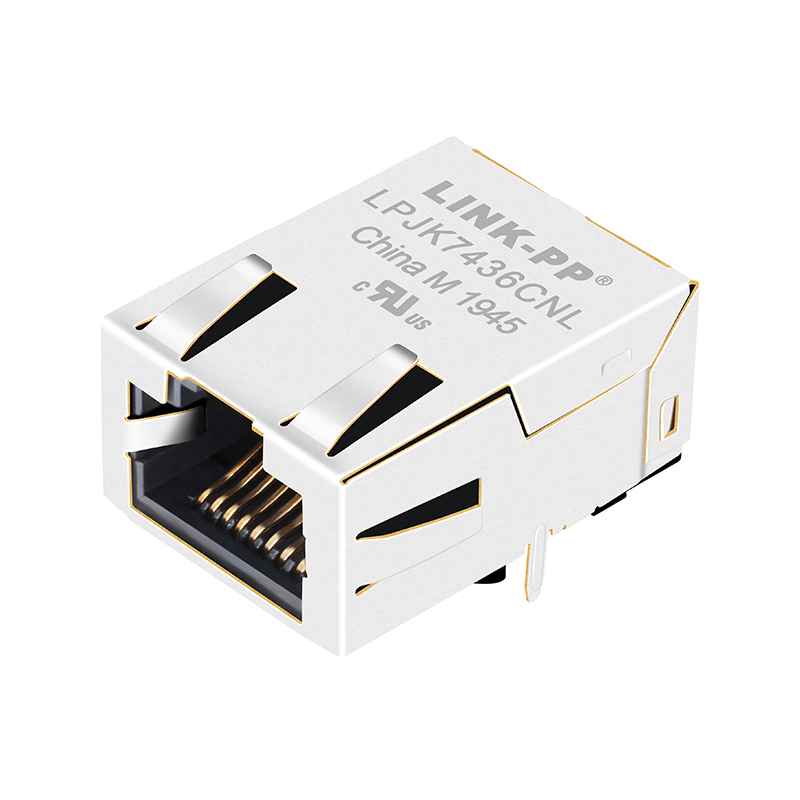

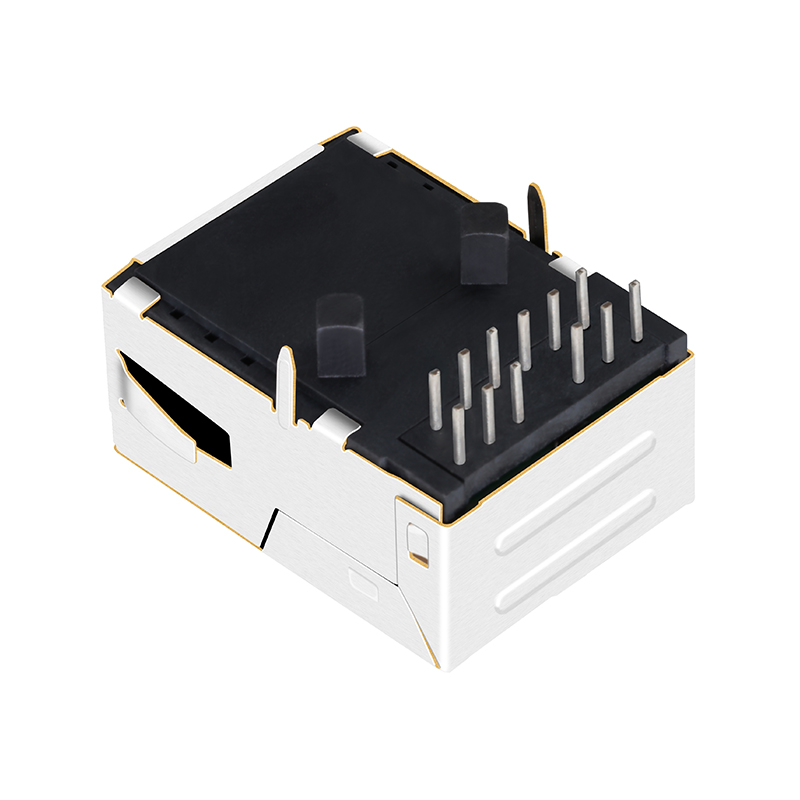

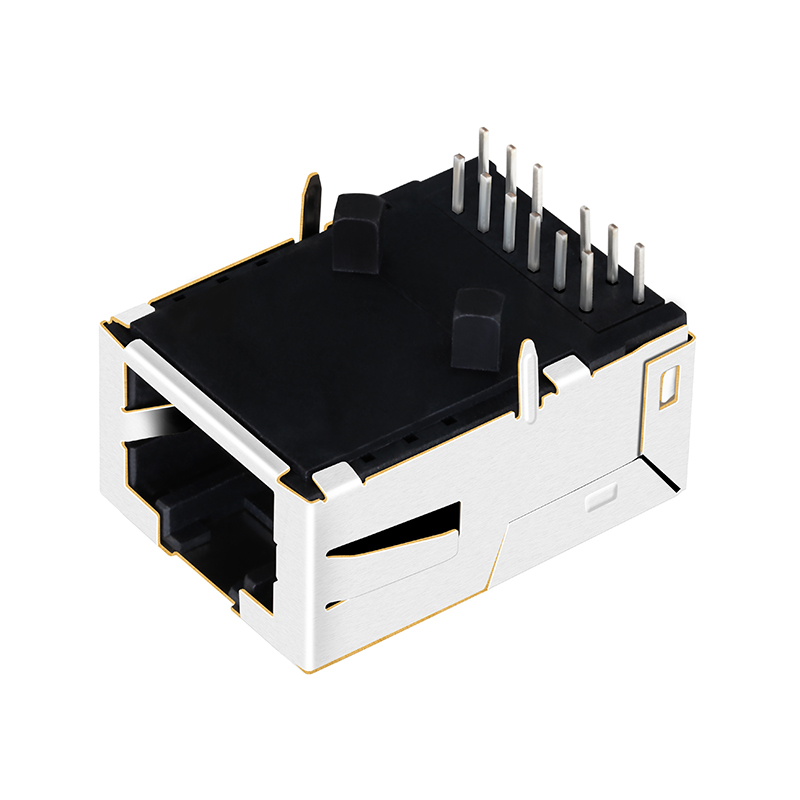

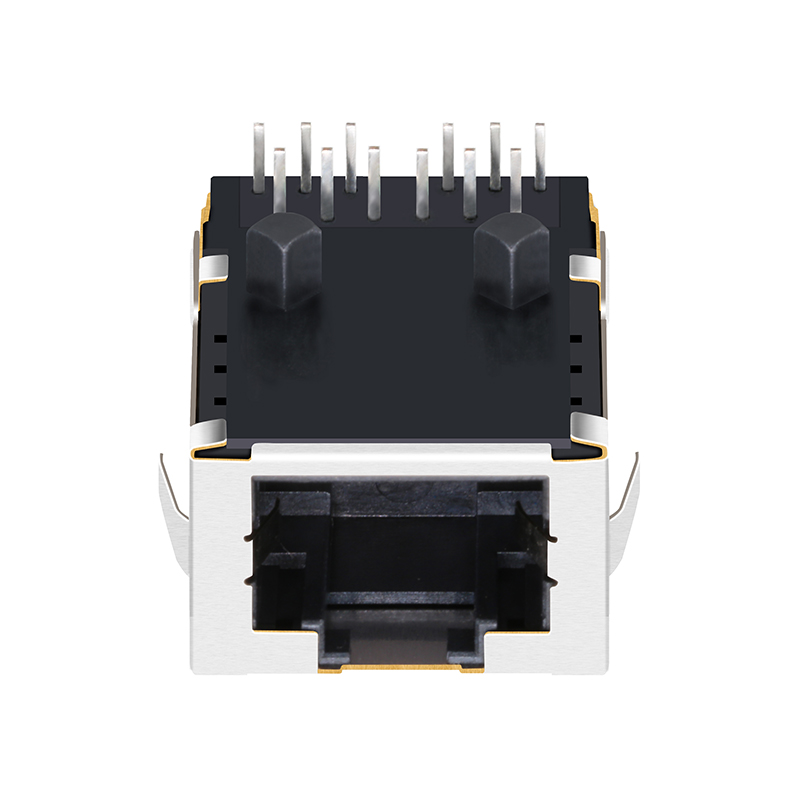

The L8AL-1X1T-32A is a high-performance 10/100/1000 Base-T Magnetic Ethernet Female RJ45 Connector. Designed with a low-profile form factor and without LEDs, it is optimized for space-constrained networking applications requiring reliable data transmission.
| Item | RJ45 Female Connector |
| Part Number | LPJK7436CNL |
| Compatible With | L8AL-1X1T-32A |
| Status | Active |
| Connector Type | Jack |
| Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application | Ethernet (Non-PoE) |
| Port Configuration | 1x1 Port |
| Speed | 10/100/1000 Base-T |
| Latch Direction | Up |
| Cores per Port | 8 |
| Orientation | 90° Angle (Right) |
| Mounting Type | Side Entry / PCB Mount |
| Shielding | EMI Tabs Included |
| LED Option | Without LED |
| Material | FR4 PCB |
| Operating Temperature | -40℃ TO 85℃ |
| BST Circuit | Yes |
| AutoMDIX | Yes |
| Plating | Gold 6u"/15u"/30u" |
| Turns Ratio | 1CT:1CT |
Our facility, established in 1997, is a professional designer and manufacturer of magnetic telecom and networking components. We provide an extensive line of catalog products alongside custom development capabilities to meet global OEM and CEM requirements.
