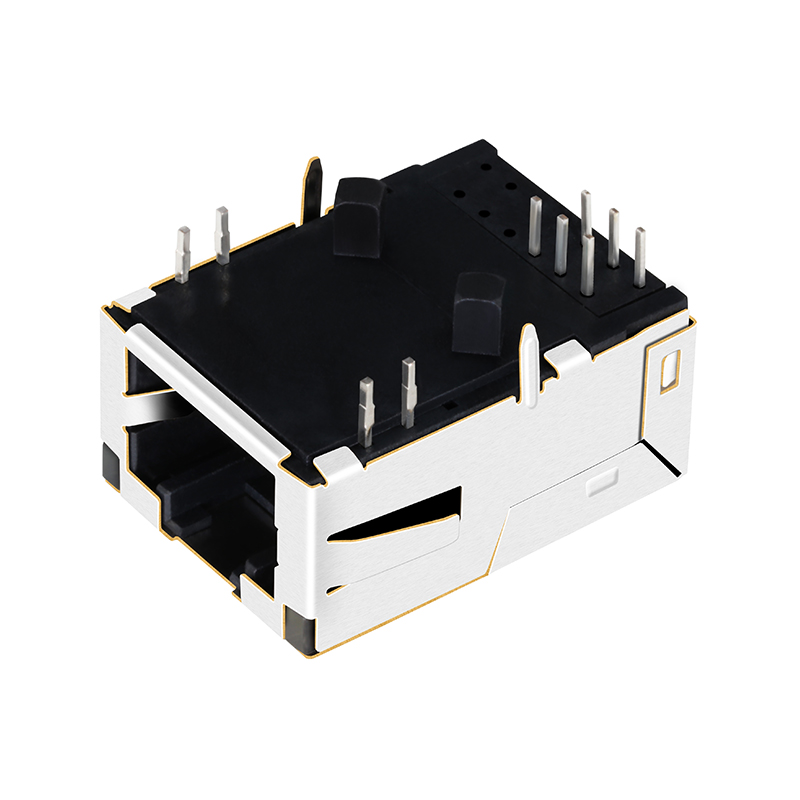

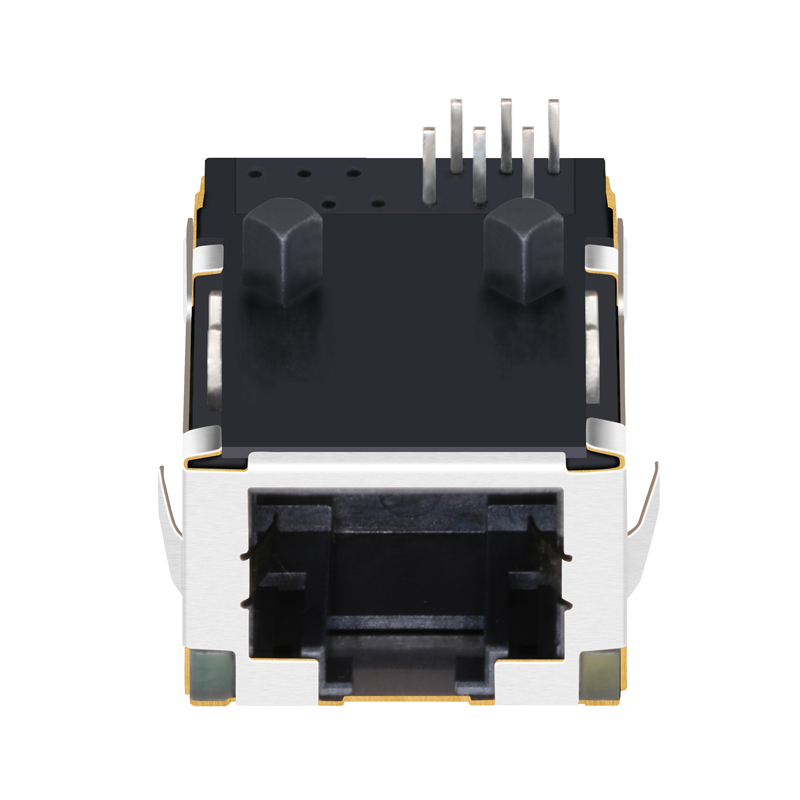

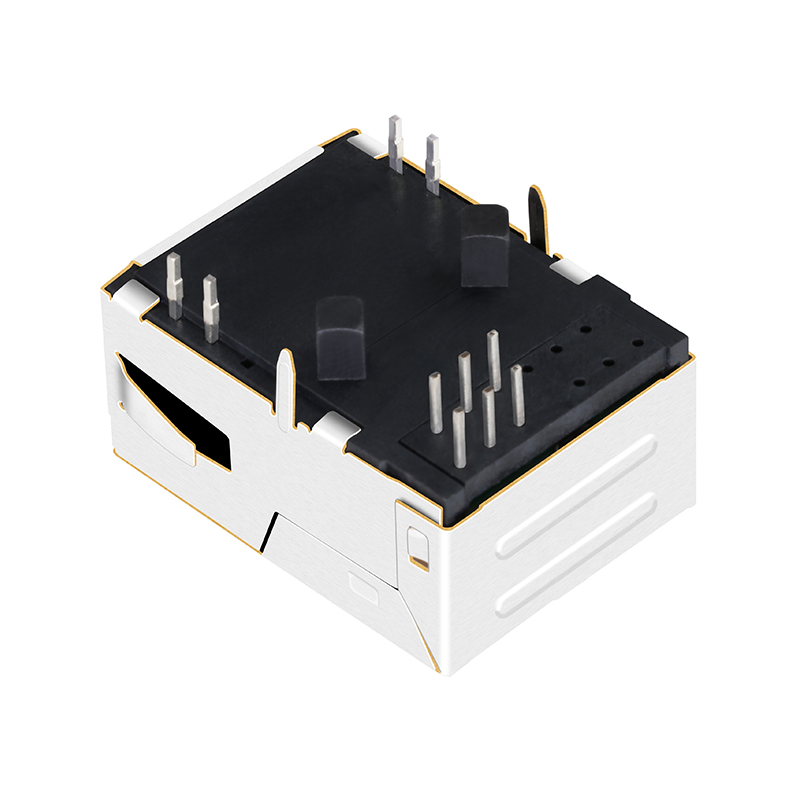

L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led

Product Description

Product Categories
L829-1D1T-91 Tab Up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led
📦 Products Description
ItemRJ45 Female Connector
Part NumberLPJK7001AGNL
Compatible WithL829-1D1T-91
Part StatusActive
Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet(NoN PoE)
Number of Ports1x1 Port
Speed10/100 Base-T
LatchUp
Cores per Port4
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWith
LED OptionWith
PCBFR4
PCB Retaining PostT POST
Temperature0℃ TO 70℃
Bst CircuitYes
AutomDXYES
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C
Product View
RJ45 Series
Specifications
Dimensions
Circuitry
Technical Drawing
🏭 Manufacturing & Quality
Manufacturing Center
Production Line
Testing Equipment
Certification
🏢 Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we serve as a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers across 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a world-leading provider of Ethernet RJ45 connectors and LAN transformer solutions.
Production Facility
Warehouse
Professional Team
❓ Frequently Asked Questions
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we offer free samples for quality testing. Customers are responsible for the shipping fees.
3. What is your delivery time?
Products in stock are ready to ship. For mass production, the typical lead time is 15 to 30 days.
4. What after-service do you offer?
We provide a one-year guarantee period and offer 24-hour online technical support.
5. Do you accept OEM/ODM orders?
Yes, we accept both OEM and ODM orders. Please contact us for a detailed discussion regarding your requirements.
6. What are your primary advantages?
With over 19 years of production experience, we have established long-term partnerships with major global industry leaders.
