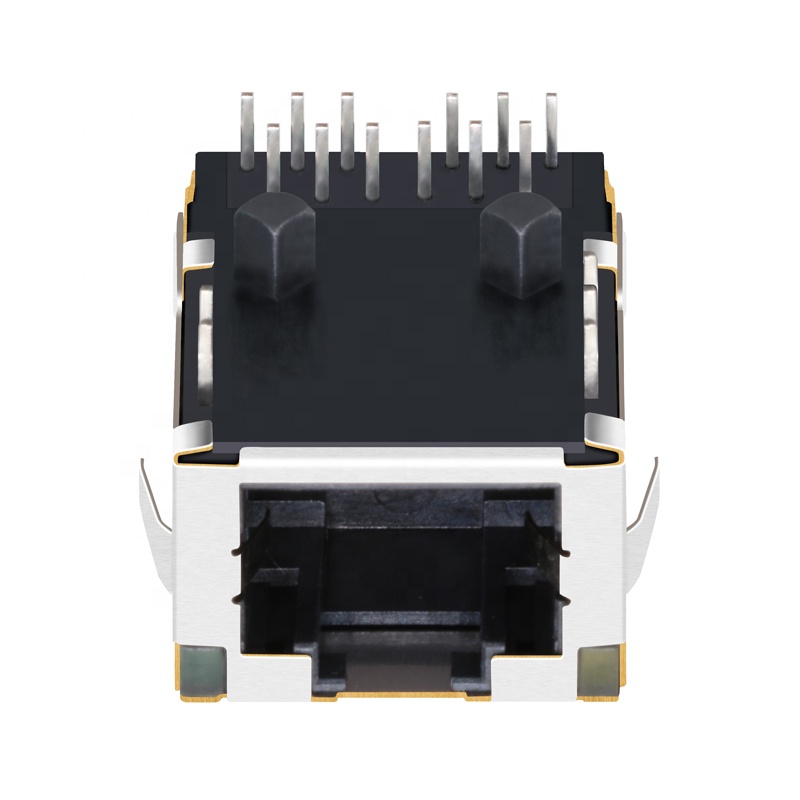

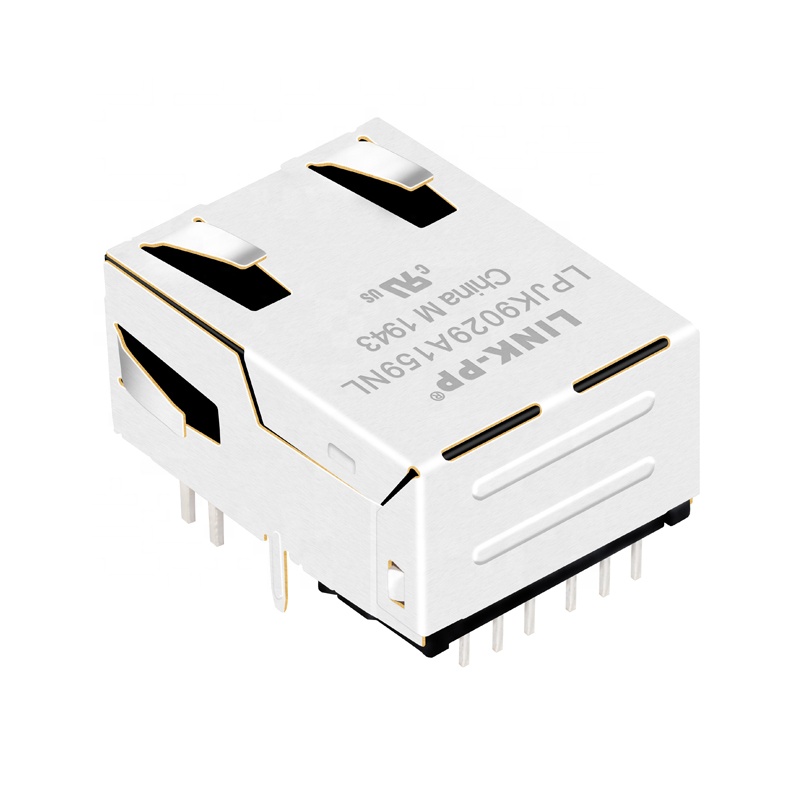

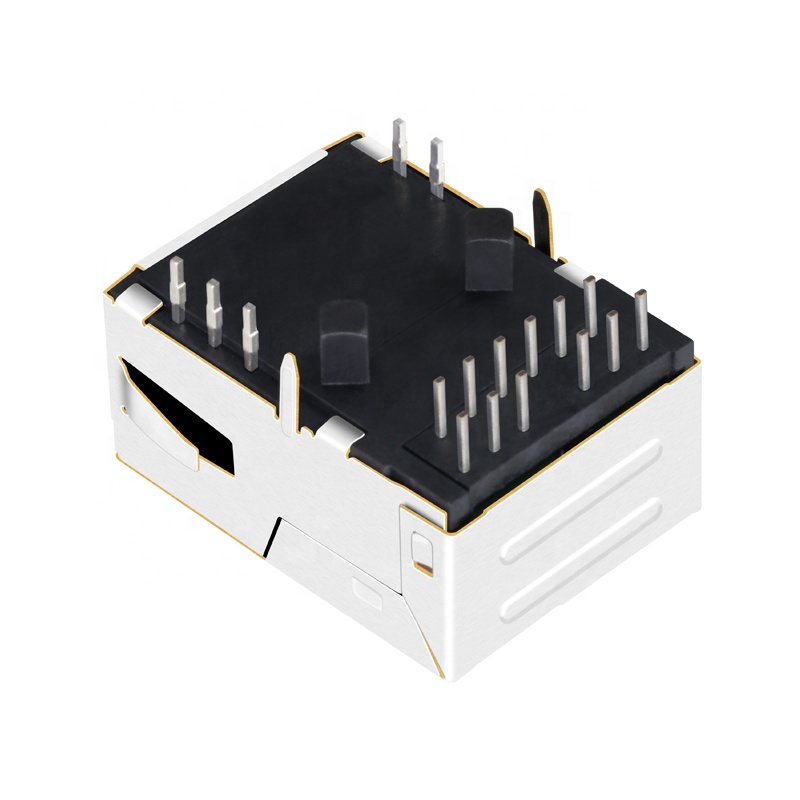

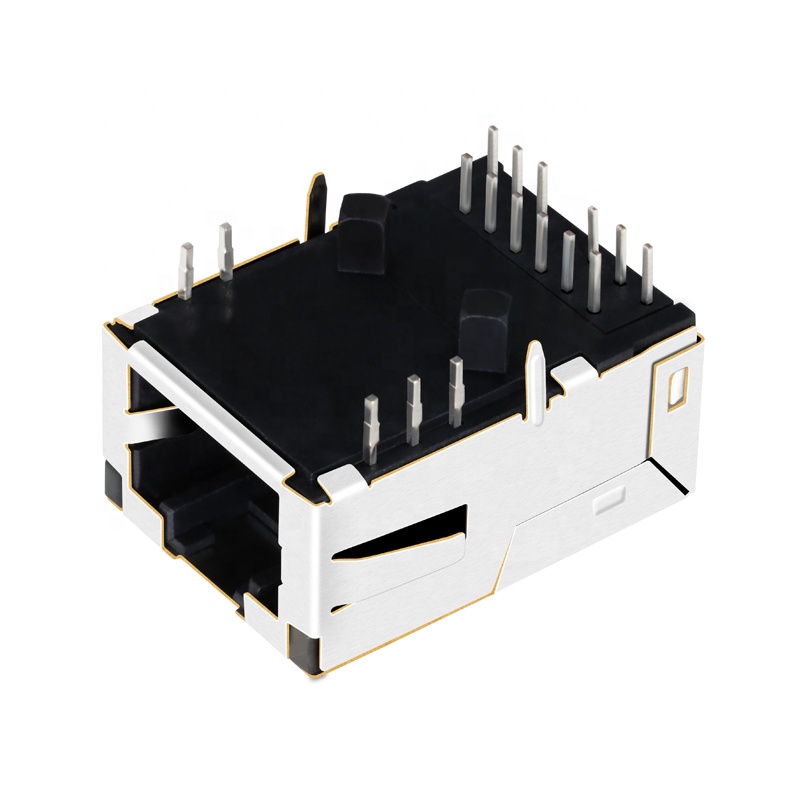

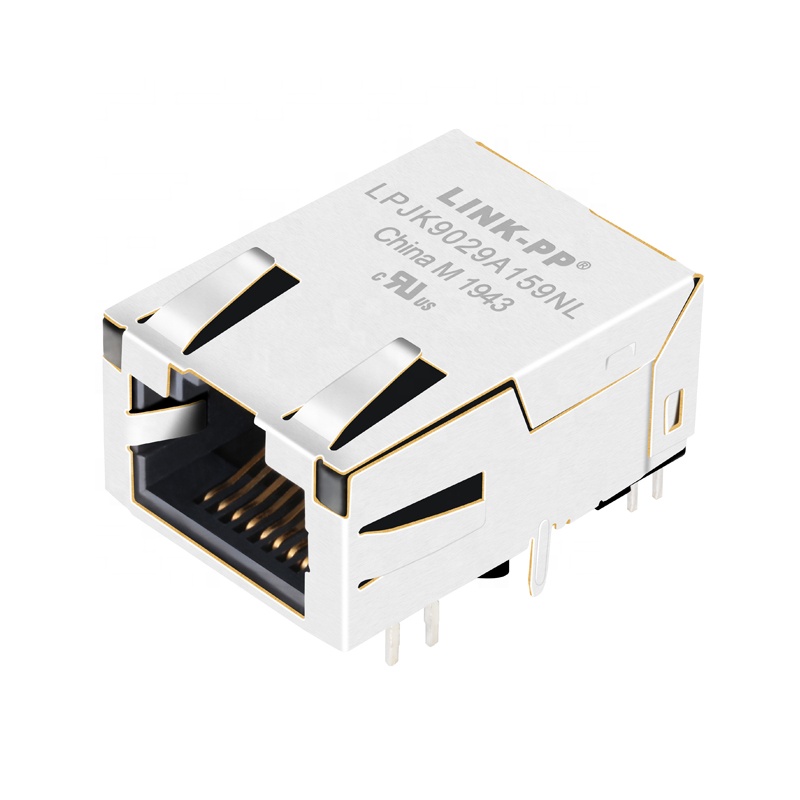

5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
1 / 5
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector

5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector

Send Inquiry

Product Description

📦 Product Overview
Product View 1
Product View 2
⚙️ Technical Specifications
Model NumberLPJK9029A159NL
Part StatusActive
Connector TypeRJ45
Applications-Lan5G Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorYellow&Green - Yellow
Number of Cores per Jack8
ShieldingShielded
Number of PortsSingle Port
FeaturesBoard Guide
Tab DirectionDown
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature0°C ~ 70°C
✨ Key Characteristics
Characteristics
  • 🔹 RJ45 Connector with integrated transformer / common mode choke
  • 🔹 Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s
  • 🔹 Available in SMT, THT and THT with USB
  • 🔹 Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt
  • 🔹 HPLE products: Improved Common Mode Rejection due to additional NiZn cores
🚚 Packing & Delivery

Standard Packaging: 110 pcs in 1 tray (34.5*34.5*27cm)

Carton Details: 5.5KGS (550pcs) per carton

Packaging
🛡️ Manufacturing Excellence
Facility 1
Facility 2
Facility 3

As a specialized manufacturer of magnetic telecom and networking components, we are certificated by ISO9001:2000, ROSH, REACH, CE and UL. Our facility owns advanced manufacturing and test equipments imported from abroad. Established in 1997, we have around 2000 staff at present. With a productive capacity of 3000K per month, we ensure short delivery times and professional complete solutions for magnetic components with strong technical support.

Main Product Ranges:
  • 10/100/1000M LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Quality 1
Quality 2
Cert 1
Cert 2
❓ Frequently Asked Questions
1. What is the maximum data speed supported by this RJ45 connector?
This connector is designed to support high-speed networking, including 5G Base-T and speeds up to 10 Gbit/s.
2. Does this product support Power over Ethernet (PoE)?
Yes, it supports Power over Ethernet (PoE) up to 50 Watts and is compliant with IEEE 802.3af/at/bt standards.
3. What are the operating temperature limits?
The standard operating temperature range for this model is 0°C to 70°C.
4. What certifications does the manufacturing facility hold?
Our manufacturing processes are certified by ISO9001:2000, and products comply with ROSH, REACH, CE, and UL standards.
5. Is the connector shielded for interference protection?
Yes, the connector is fully shielded to provide excellent electromagnetic interference (EMI) protection.
6. What is the packaging quantity for bulk orders?
The standard packaging is 110 pieces per tray, with a full carton containing 550 pieces.
