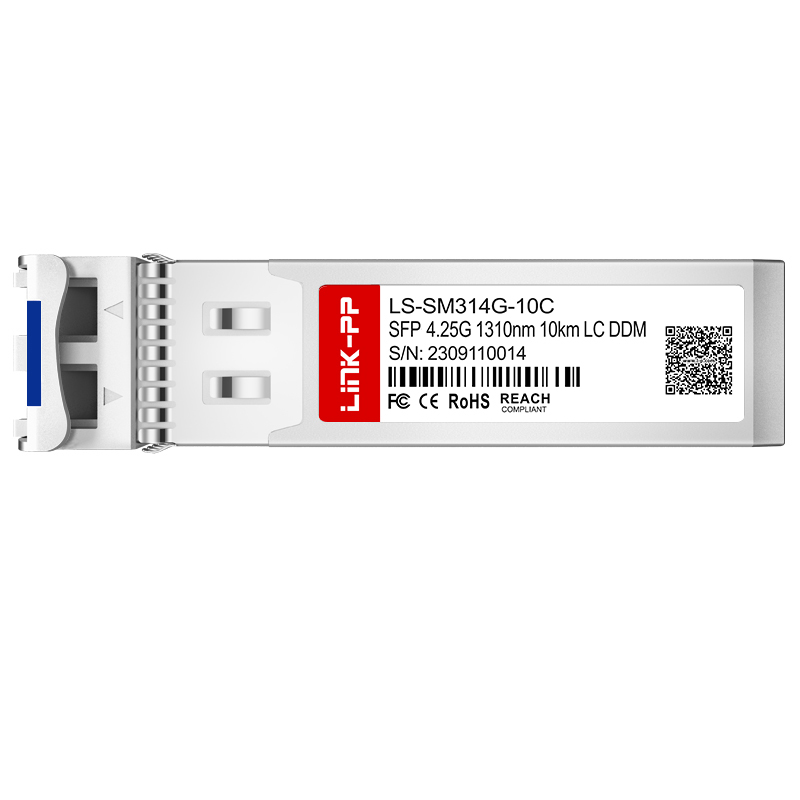

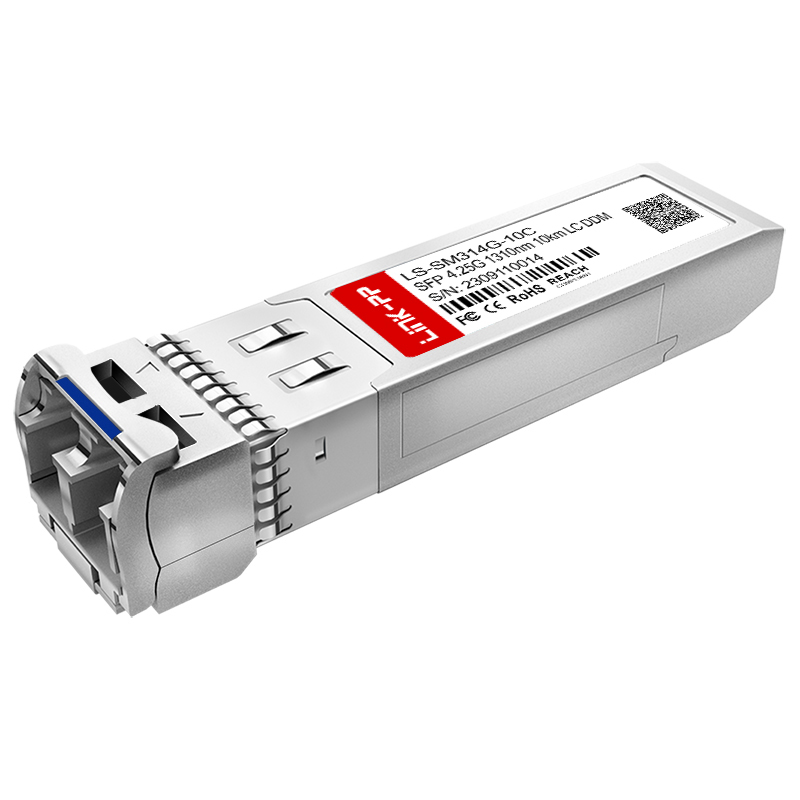

| Vendor Name | Professional Solutions |
| Part No. | LS-SM314G-10C |
| Form Factor | SFP |
| Max Data Rate | 4.25Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 10km |
| Connector | Duplex LC |
| Media | SMF |
| Transmitter Type | DFB |
| Receiver Type | PIN |
| TX Power | -8 ~ -1dBm |
| Receiver Sensitivity | < -18dBm |
| EMC Supported | Yes |
| DDM/DOM | Supported |
| Protocols | MSA Compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
| Sample | Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
Our solutions provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
| Part Number | Data Rate | Wavelength | Distance | Media | DDM |
|---|---|---|---|---|---|
| LS-MM854G-S1C | 4.25Gbps | 850nm | 150m | Multi-mode | Yes |
| LS-MM852G-S3C | 4.25Gbps | 850nm | 300m | Multi-mode | Yes |
| LS-MM854G-S5C | 4.25Gbps | 850nm | 500m | Multi-mode | Yes |
| LS-SM314G-02C | 4.25Gbps | 1310nm | 2km | Single Mode | Yes |
| LS-SM314G-04C | 4.25Gbps | 1310nm | 4km | Single Mode | Yes |
| LS-SM314G-10C | 4.25Gbps | 1310nm | 10km | Single Mode | Yes |
| LS-SM314G-40C | 4.25Gbps | 1310nm | 40km | Single Mode | Yes |
| LS-SM554G-40C | 4.25Gbps | 1550nm | 40km | Single Mode | Yes |
We provide end-to-end DWDM devices including active modules and optical passive devices, such as optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR.
To meet the demand of mass data transmission, a series of high-speed optical modules ranging from 10G to 800G have been developed, providing high-quality interconnection for data centers.
High reliability products with mature lasers and chip solutions. The range includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul for 4G/5G systems.
For global communication network constructers, total fiber access solutions are provided, covering all-optical or optical copper combined products.
To ensure normal operation of communication lines, O&M solutions integrate optical line protection systems (OLP) and optical line monitoring systems (OLM).
Our facility is a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROSH, REACH, CE and UL. We utilize advanced manufacturing and testing equipment imported from abroad.
Established in 1997, we currently employ approximately 2000 professionals. With a production capacity of 3000K per month, we ensure short delivery times. We offer a complete series of optical modules and high-speed interconnect solutions globally using the latest optoelectronic technologies.
