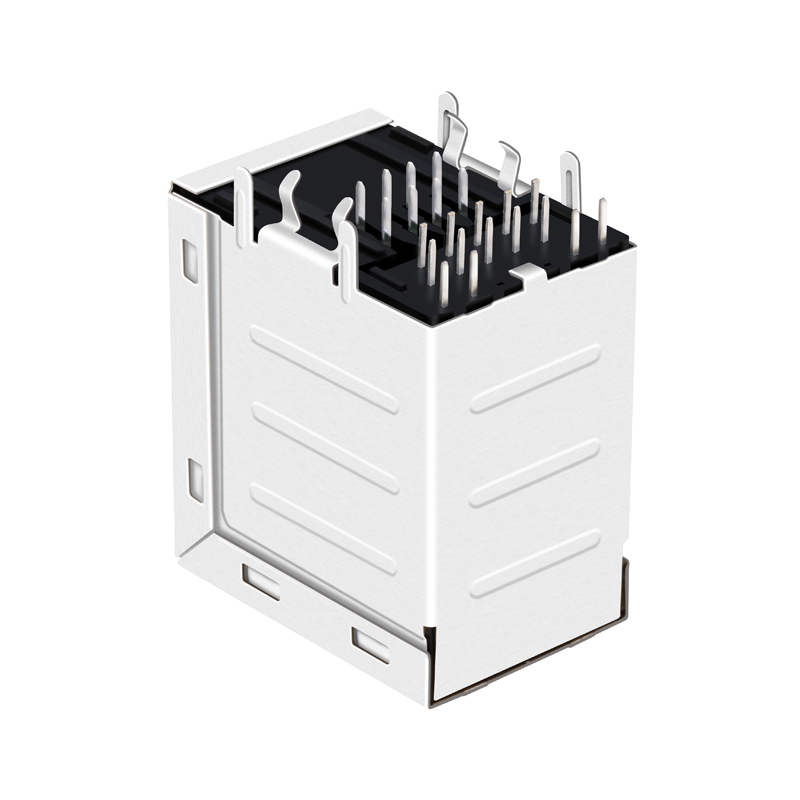

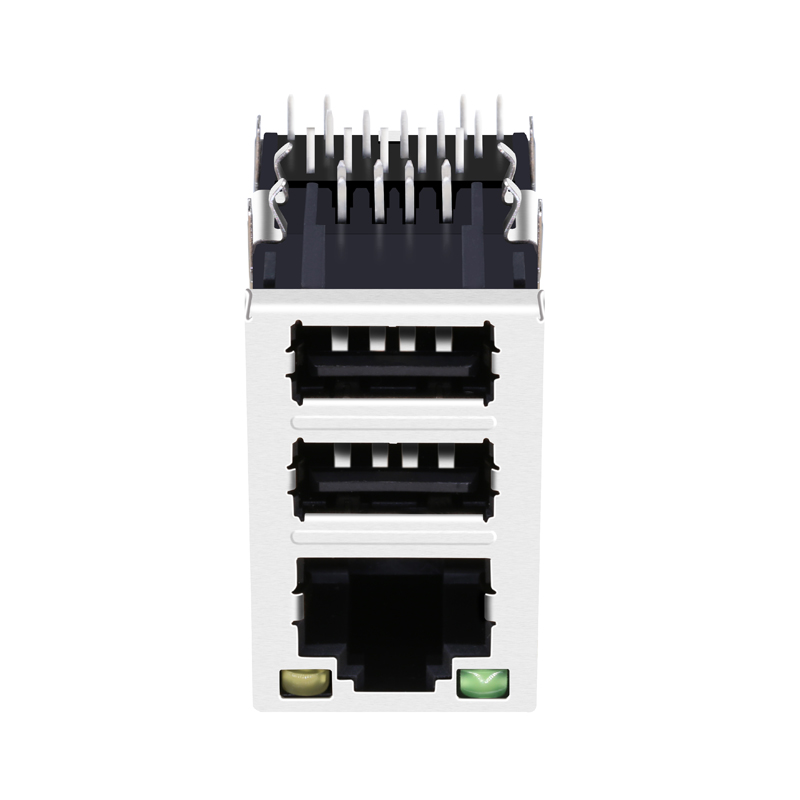

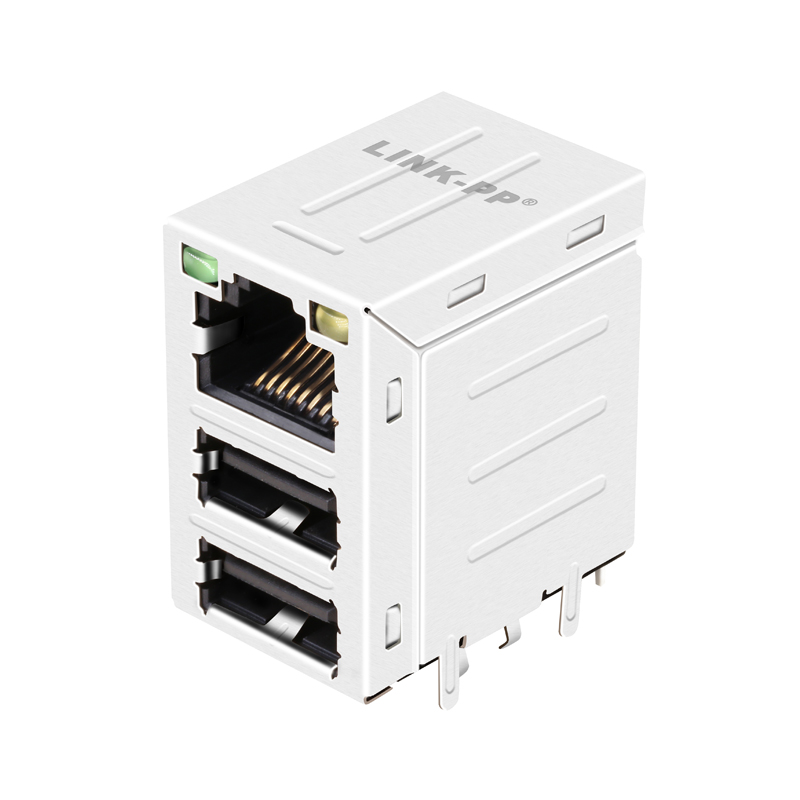

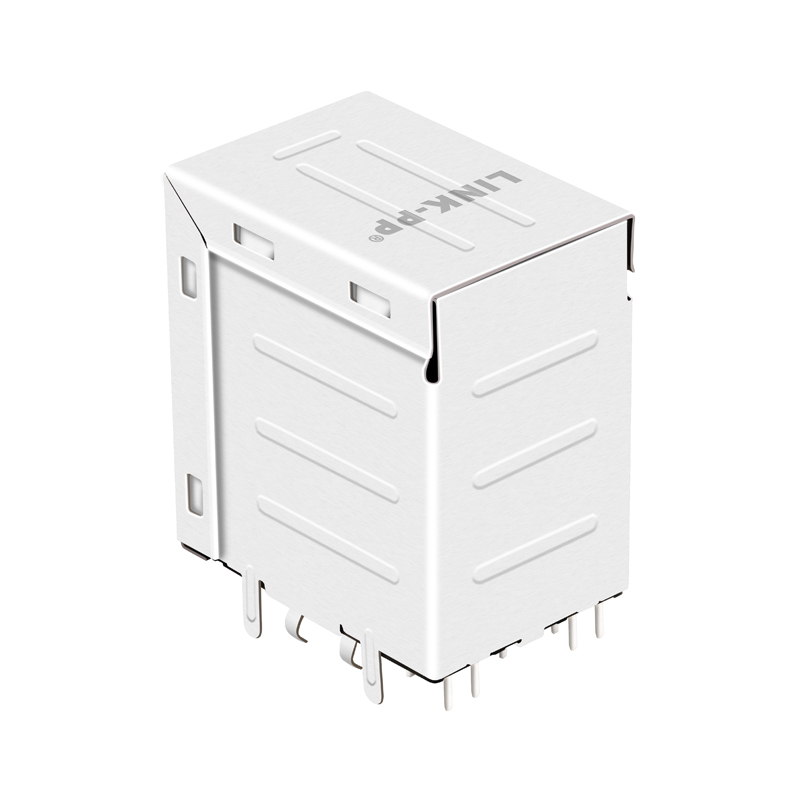

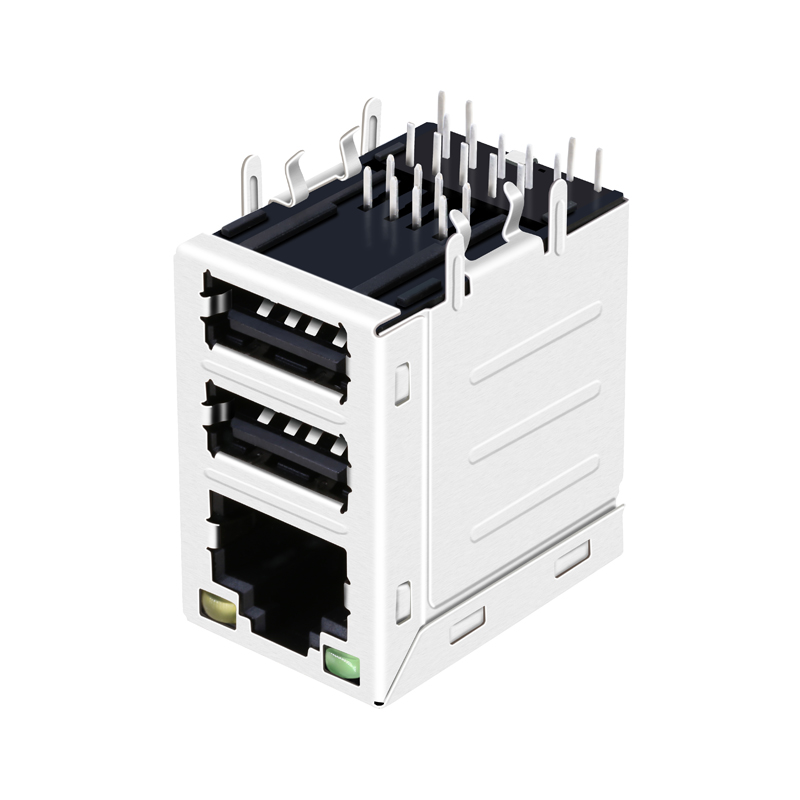

45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector with LEDs
■ Products Description
| Item | RJ45 Female Connector |
| Compatible With | 45F-10201DYD2NL 45F-10201DYDXNL |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | Single Port With USB |
| Speed | 10/100/1000 Base-T |
| Latch | Down/Up |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without/With |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0℃ TO 70℃ / -40℃ TO 85℃ |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
■ Technical Specifications & Drawings
■ Company Profile
Established in 1997, our company is a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
■ Frequently Asked Questions (FAQ)
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I obtain a sample before placing a mass production order?
Yes, we provide free samples for quality testing. Customers are only responsible for the shipping fees.
What is your typical delivery time?
Stock items are ready for immediate shipment. For mass production, the delivery time typically ranges between 15 to 30 days.
What kind of after-sales service do you provide?
We offer a one-year guarantee period along with 24-hour online technical support to ensure your operations run smoothly.
Do you accept OEM or ODM orders?
Yes, we welcome OEM and ODM inquiries. Please contact us to discuss your specific requirements in detail.
What are your main advantages in this industry?
With over 19 years of professional production experience, we have established long-term partnerships with leading global technology firms.
