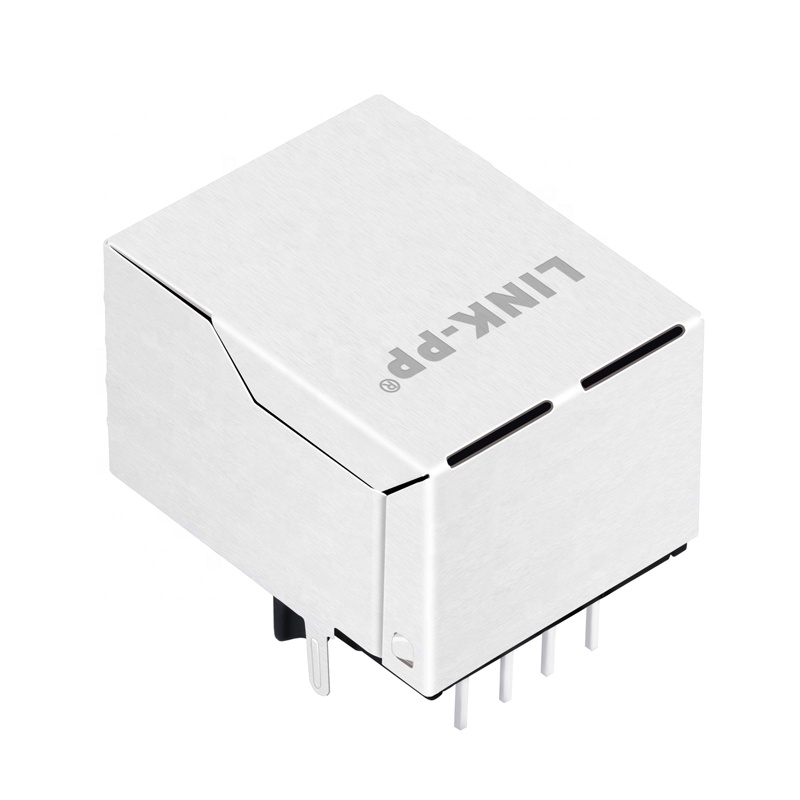

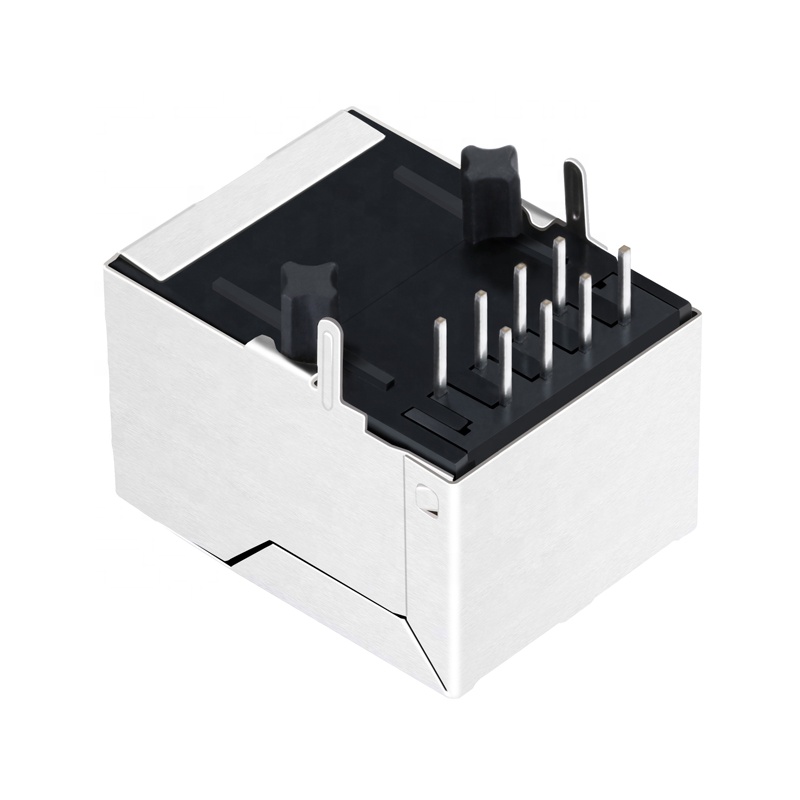

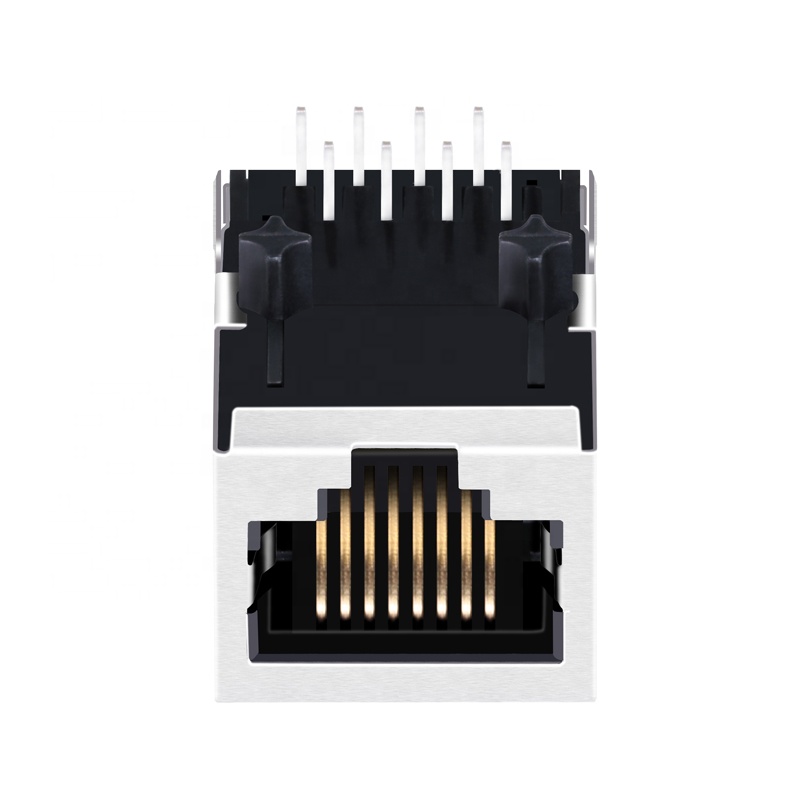

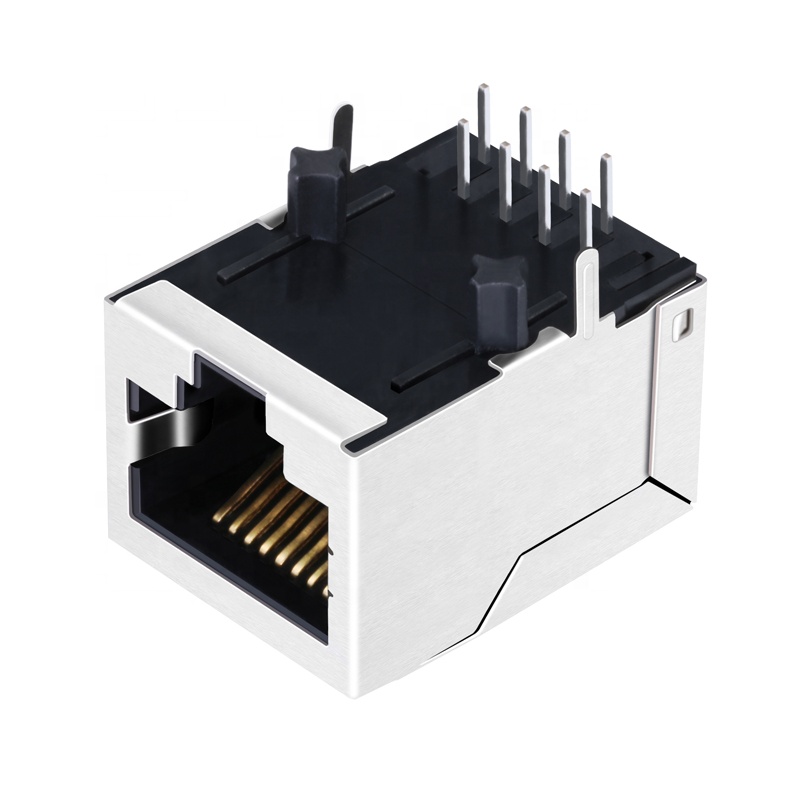

1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1 / 5
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector

1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector

Send Inquiry

Product Description

⚙️
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
RJ45 Connector Overview
📊 Products Description
ItemRJ45 Female Connector
Part Number1470648-1
Part StatusActive
Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet(NoN PoE)
Number of Ports1x1 Port
Speed10/100 Base-T
LatchDown
Cores per Port4
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithout
LED OptionWithout
PCBFR4
PCB Retaining PostT POST
Temperature0℃ TO 70℃
Bst CircuitYes
AutomDXYES
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C
❓
Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples to test quality, though shipping fees are typically covered by the customer.
What is your delivery time?
Items in stock are ready to ship immediately; mass production typically takes 15-30 days.
What after-sales service do you offer?
We provide a one-year guarantee period and offer 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we welcome OEM and ODM inquiries. Please contact us to discuss your specific requirements.
What are your manufacturing advantages?
With over 19 years of production experience, we have established long-term partnerships with major global technology leaders.
