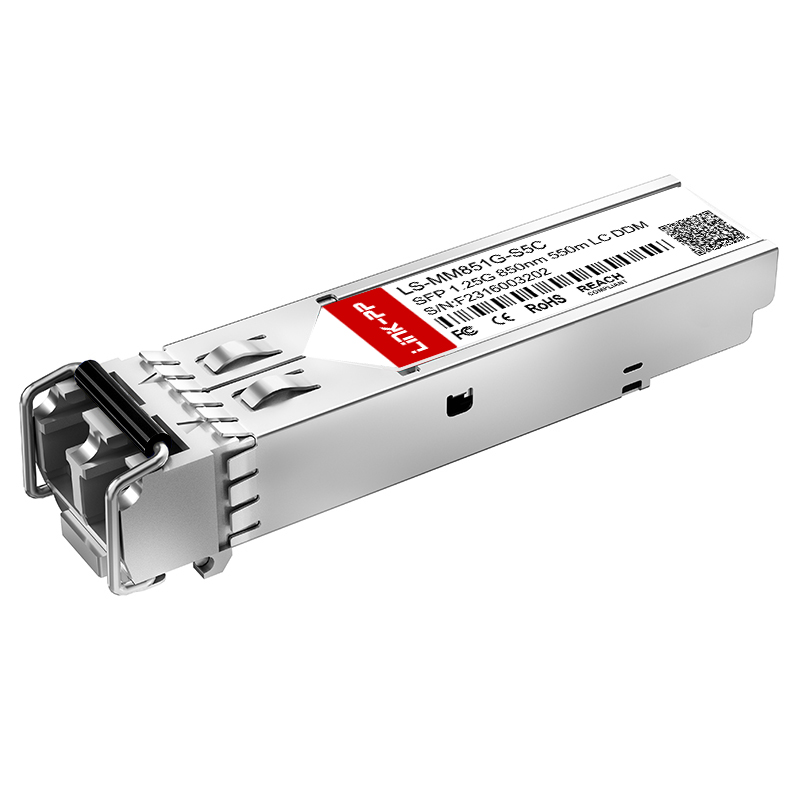

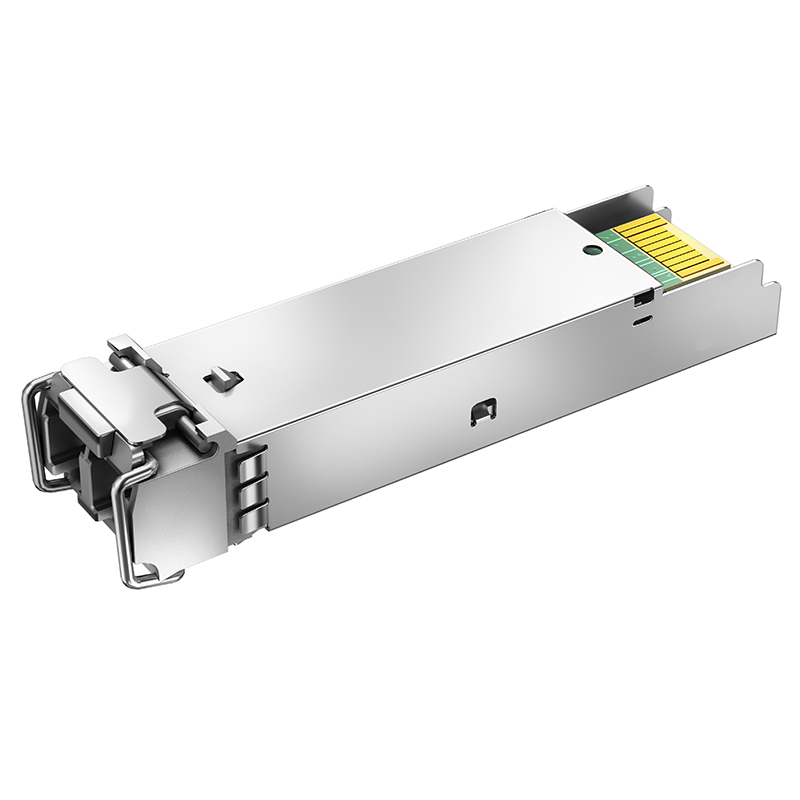

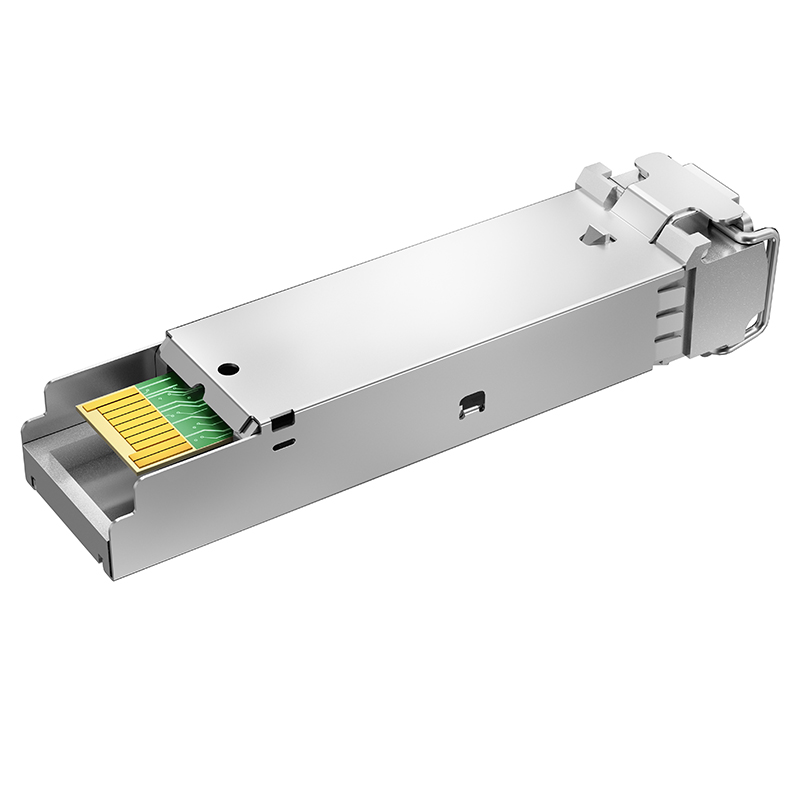

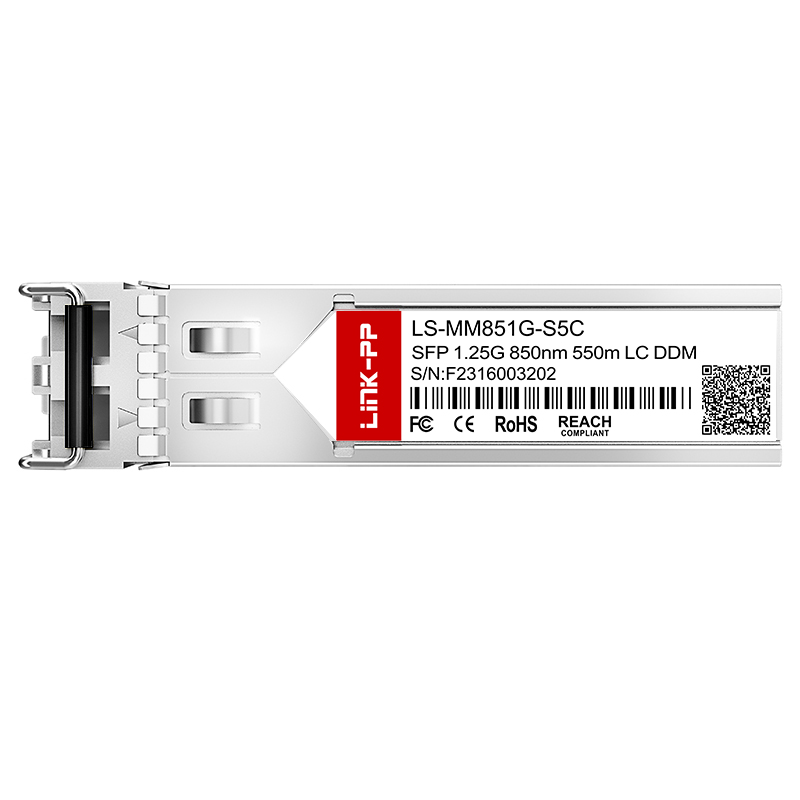

| Item | 1.25G SFP Module |
| Part Status | Active |
| Form Factor | SFP |
| Max Data Rate | 1.25Gbps |
| Max Cable Distance | 550m |
| Wavelength | 850nm |

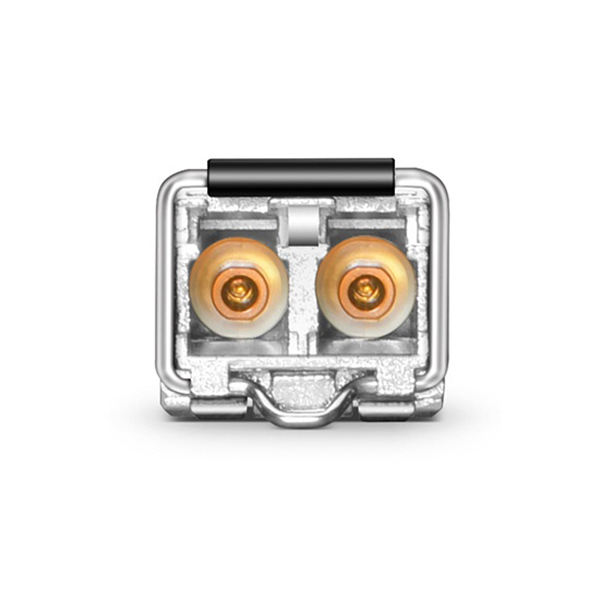

| Connector | Duplex LC |
| Media | MMF |
| Optical Component | VCSEL/PIN |
| TX Power | -9.5 ~ - 3dBm |
| Receiver Sensitivity | < -17dBm |
| Receiver Overload | -3dBm |
| Power Consumption | ≤0.8W |
| DDM/DOM | DDM Supported |
| Commercial Temp Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3z, SFF-8472, SFP MSA Compliant |
| Warranty | 5 Years |
| Sample | Available |
Drawing on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
End-to-end DWDM solutions with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR.
Meeting the demand of mass data transmission in data centers with high-speed optical modules ranging from 10G to 800G, providing high-quality interconnection solutions.
High reliability products with mature lasers and mainstream chip solutions. Includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul for 4G/5G systems.
Total optical fiber access solutions covering all-optical or optical copper combined access products for global communication network constructors.
Optical cable O&M solutions integrating optical line protection systems (OLP) and optical line monitoring systems (OLM) to ensure normal communication line operation.
As a specialized manufacturer of magnetic telecom and networking components, we are certificated by ISO9001:2000, ROSH, REACH, CE and UL. We own advanced manufacturing facilities and test equipment imported from abroad.
Established in 1997, the facility currently employs around 2,000 staff. With a productive capacity of 3,000K per month, we ensure product delivery within short lead times. We offer a full series of optical modules for fixed access, wireless access, carrier Ethernet, WDM, and data communication networks, alongside high-speed interconnection solutions for cloud computing and ultra-broadband networks.
