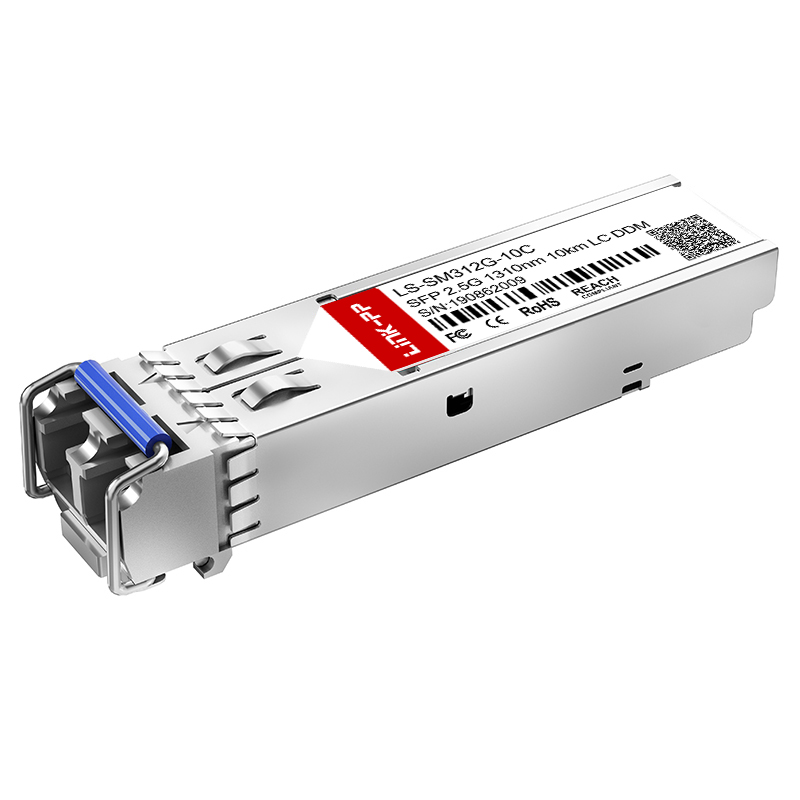

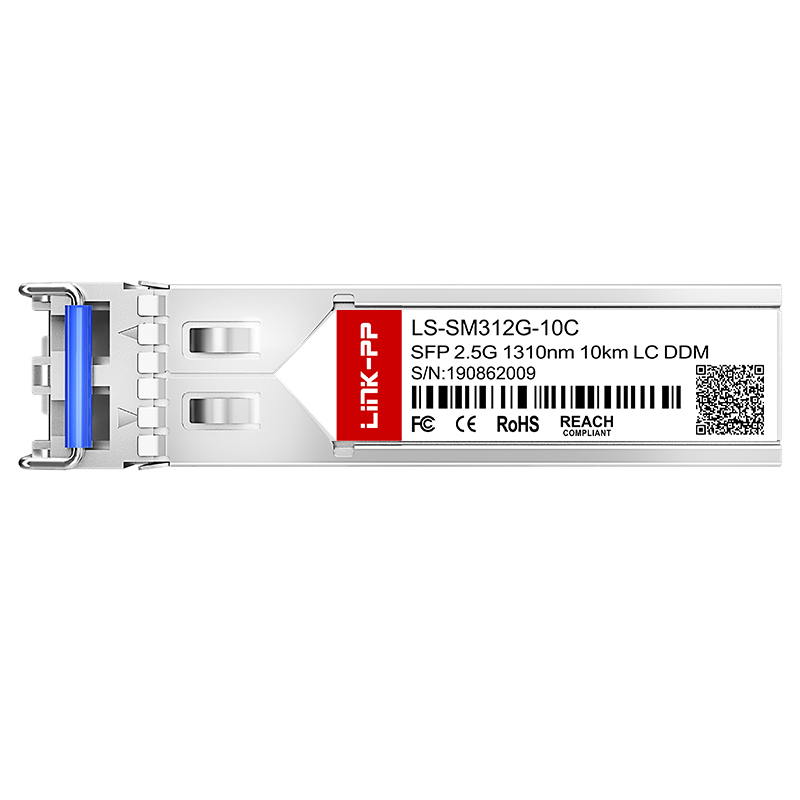

Single Mode 2.5G SFP 1310nm 10km DDM Duplex LC Optical Transceiver Module

1 / 5

Single Mode 2.5G SFP 1310nm 10km DDM Duplex LC Optical Transceiver Module

Send Inquiry

Product Description

📡 Single Mode 2.5G SFP 1310nm 10km DDM Duplex LC Optical Transceiver Module

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. Our full series of optical modules supports fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Product Specifications
Part No.	LS-SM312G-10C
Form Factor	SFP
Max Data Rate	2.5Gbps
Wavelength	1310nm
Max Cable Distance	10km
Connector	Duplex LC
Media	SMF (Single Mode Fiber)
Transmitter Type	FP
Receiver Type	PIN
TX Power	-11.7 ~ -3dBm
Receiver Sensitivity	< -18dBm
Receiver Overload	-3dBm
EMC Supported	Yes
DDM/DOM	Supported
Protocols	MSA Compliant
Temperature Range	0 to 70°C / -40 to 85°C
Warranty	5 Years

📊 Support Full Range Of 2.5G SFP

Part Number	Data Rate	Wavelength	Distance	Media	DDM
LS-MM852G-S3C	2.5Gbps	850nm	300m	Multi-mode	Yes
LS-MM852G-S5C	2.5Gbps	850nm	550m	Multi-mode	Yes
LS-SM312G-02C	2.5Gbps	1310nm	2km	Single Mode	Yes
LS-SM312G-10C	2.5Gbps	1310nm	10km	Single Mode	Yes
LS-SM312G-20C	2.5Gbps	1310nm	20km	Single Mode	Yes
LS-SM552G-40C	2.5Gbps	1550nm	40km	Single Mode	Yes
LS-SM552G-80C	2.5Gbps	1550nm	80km	Single Mode	Yes

🌐 Optical Network Solutions

📦 Optical Transport

Providing end-to-end DWDM devices ranging from active modules to passive devices including amplifiers (EDFA & RFA), Mux & Demux, and ROADM.

☁️ Cloud & Enterprise

High-speed optical interconnect solutions from 10G to 800G designed to meet mass data transmission demands in modern data centers.

📶 Wireless 4G/5G

High reliability products using mainstream chip solutions for WDM, Radio over Fiber, Mid-haul, and Back-haul scenarios.

🏠 FTTx Access

Total optical fiber access solutions covering all-optical or combined optical-copper access architectures.

🛡️ Manufacturing Excellence

Operating as a specialized manufacturer certified by ISO9001:2000, ROHS, REACH, CE, and UL. We utilize advanced manufacturing and testing equipment to ensure the highest quality for magnetic telecom and networking components. With abundant production capacity, we provide high-speed optical interconnect solutions for cloud computing and ultra-broadband networks globally.

❓ Frequently Asked Questions

What is the maximum transmission distance of this 2.5G SFP module?

The LS-SM312G-10C module supports a maximum cable distance of 10km over Single Mode Fiber (SMF).

Does this transceiver support Digital Diagnostic Monitoring (DDM)?

Yes, the module supports DDM/DOM, allowing you to monitor real-time parameters such as temperature, voltage, and optical power.

Is the module compatible with different temperature environments?

Yes, we provide versions for both Commercial (0 to 70°C) and Industrial (-40 to 85°C) temperature ranges.

Can I request samples before placing a bulk order?

Yes, samples are available for testing and quality verification. Please contact us to discuss shipping arrangements.

What is the warranty period for your optical modules?

All our optical transceivers come with a standard 5-year warranty for peace of mind.

Are these modules MSA compliant?

Yes, our modules are fully MSA (Multi-Source Agreement) compliant, ensuring seamless integration with various network switches and routers.
