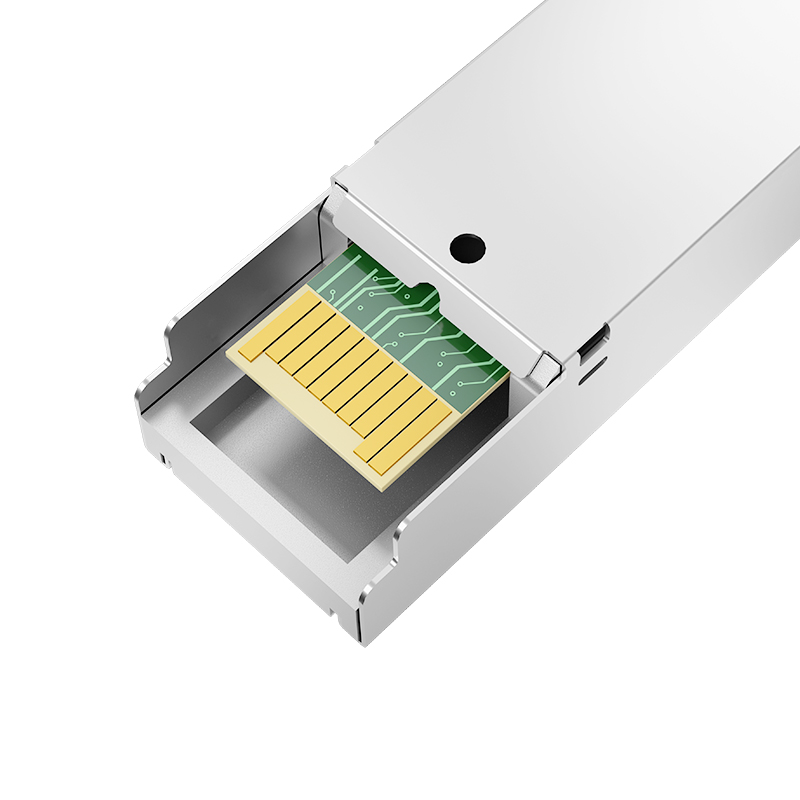

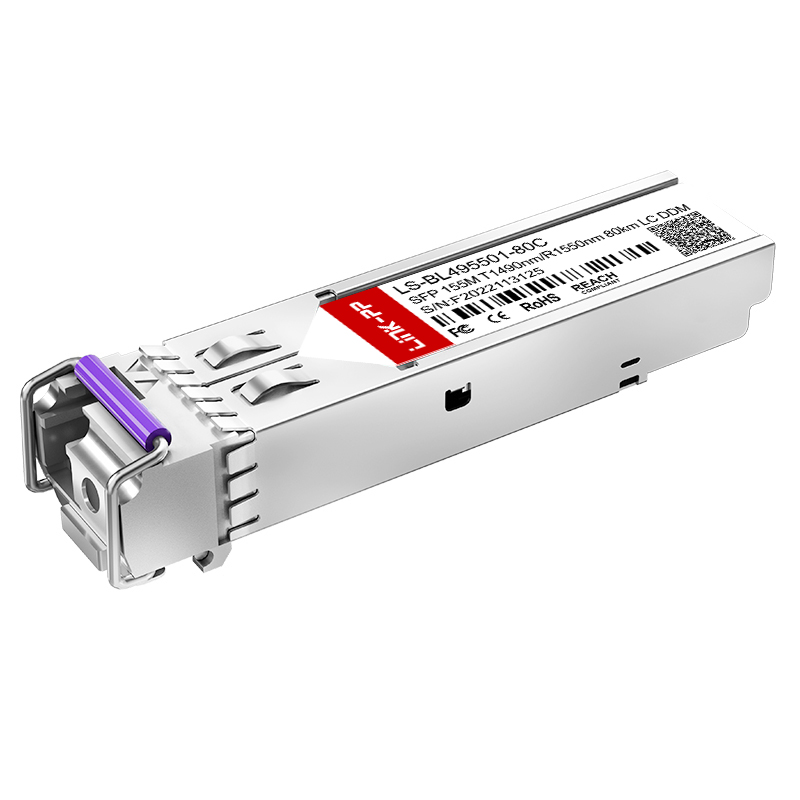

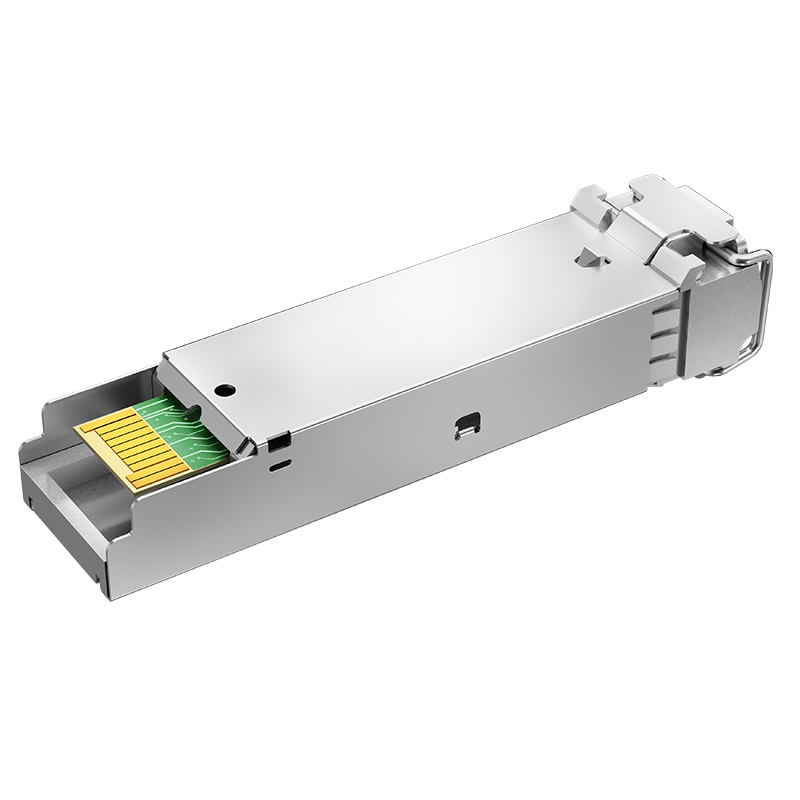

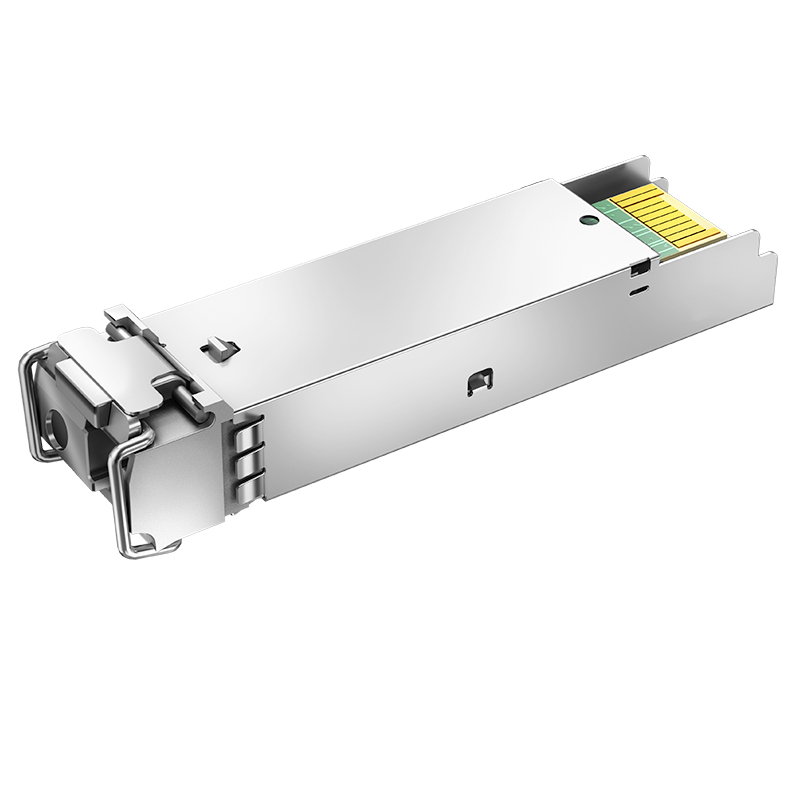

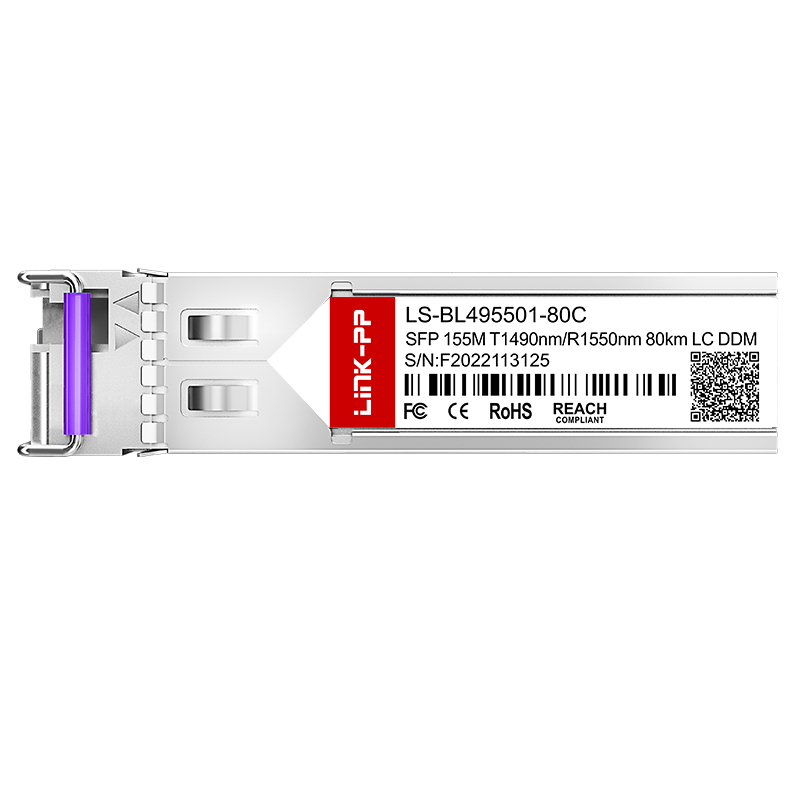

1490nm-TX/1550nm-RX Single Mode SFP Bidi 80km 155M LC Optical Transceiver Module
Technical Specifications
| Part No. | LS-BL495501-80C |
| Form Factor | SFP |
| Max Data Rate | 155Mbps |
| Wavelength | 1490nm-TX/1550nm-RX |
| Max Cable Distance | 80km |
| Connector | Simplex LC |
| Media | SMF |
| Transmitter Type | FP |
| Receiver Type | PIN |
| TX Power | -5 ~ 2dBm |
| Receiver Sensitivity | < -32dBm |
| EMC Supported | Yes |
| DDM/DOM | Supported |
| Protocols | SFP MSA and SFF-8472 |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
View Our Solutions
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Support Full Range Of 155M BiDi SFP
| Part Number |
Data Rate |
Wavelength |
Distance |
Components |
DDM |
| LS-BL315501-10C | 155Mbps | 1310nm-TX/1550nm-RX | 10km | FP/PIN | Yes |
| LS-BL553101-10C | 155Mbps | 1550nm-TX/1310nm-RX | 10km | FP/PIN | Yes |
| LS-BL315501-15C | 155Mbps | 1310nm-TX/1550nm-RX | 15km | FP/PIN | Yes |
| LS-BL553101-15C | 155Mbps | 1550nm-TX/1310nm-RX | 15km | FP/PIN | Yes |
| LS-BL315501-20C | 155Mbps | 1310nm-TX/1550nm-RX | 20km | FP/PIN | Yes |
| LS-BL315501-40C | 155Mbps | 1310nm-TX/1550nm-RX | 40km | FP/PIN | Yes |
| LS-BL315501-80C | 155Mbps | 1310nm-TX/1550nm-RX | 80km | FP/PIN | Yes |
| LS-BL495501-80C | 155Mbps | 1490nm-TX/1550nm-RX | 80km | DFB/PIN | Yes |
Application Scenarios
Optical Transport Networks
We can provide end-to-end DWDM devices with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, and OLP.
Cloud and Enterprise
To meet the demand of mass data transmission, we have developed a series of high-speed optical modules with rates ranging from 10G to 800G, providing high-quality interconnection for data centers.
Wireless Systems
High reliability and performance products with mature laser and chip solutions. Includes Dark Fiber, WDM, and High-Speed Mid-haul/Back-haul for 4G/5G systems.
Manufacturing Excellence
As a specialized manufacturer of magnetic telecom and network components, we are certified by ISO9001:2000, ROSH, REACH, CE and UL. With advanced manufacturing and testing equipment, we maintain an abundant production capacity of 3000K per month, enabling short delivery times worldwide. Using the latest optoelectronic technologies, we design and manufacture high-speed optical interconnect solutions for cloud computing and ultra-broadband networks.
Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, lan transformers, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples to test quality, though shipping fees are generally covered by the requester.
What is your typical delivery time?
Stock items are ready to ship immediately; mass production typically requires 15-30 days.
What kind of after-service do you provide?
We offer a one-year guarantee period and provide 24-hour online technical support.
Do you accept OEM/ODM orders?
Yes, we fully support OEM and ODM projects. Please contact us for a detailed discussion on your requirements.
What is your main advantage in the industry?
We have 19 years of professional production experience and serve as a long-term partner for leading global technology corporations.
