Integrating fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

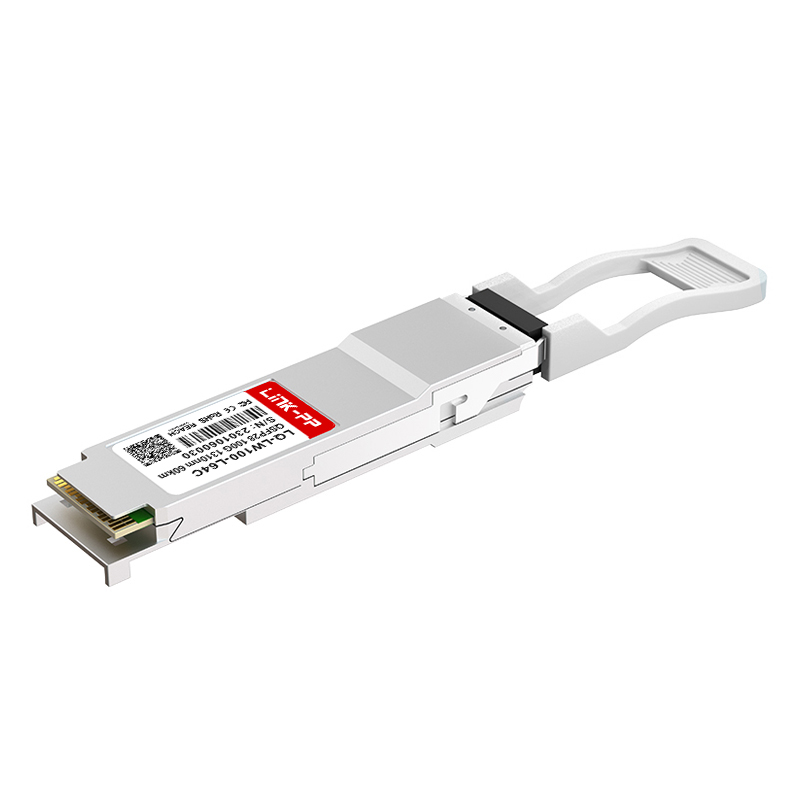

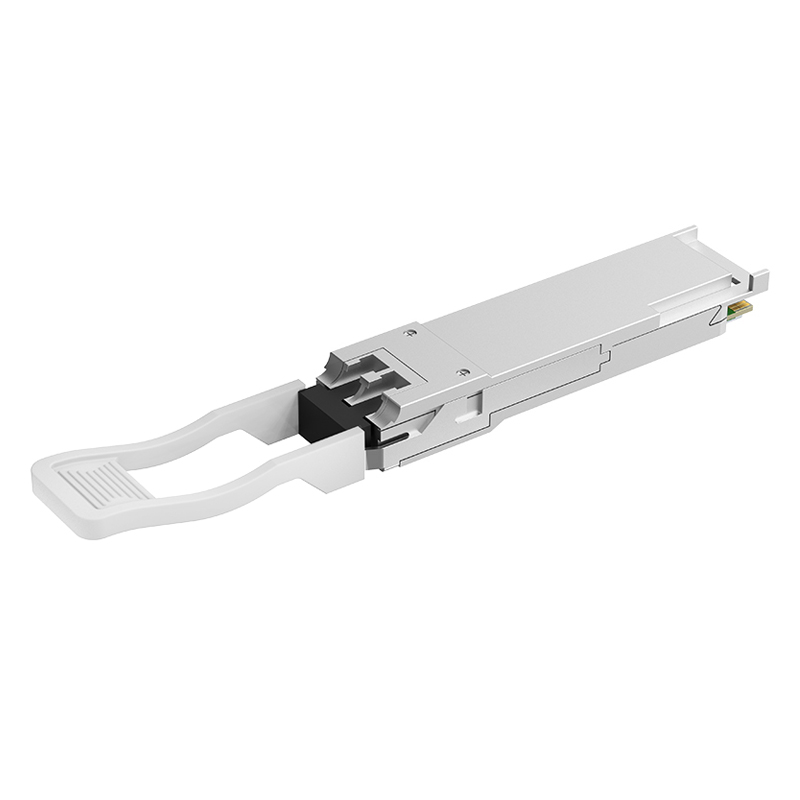

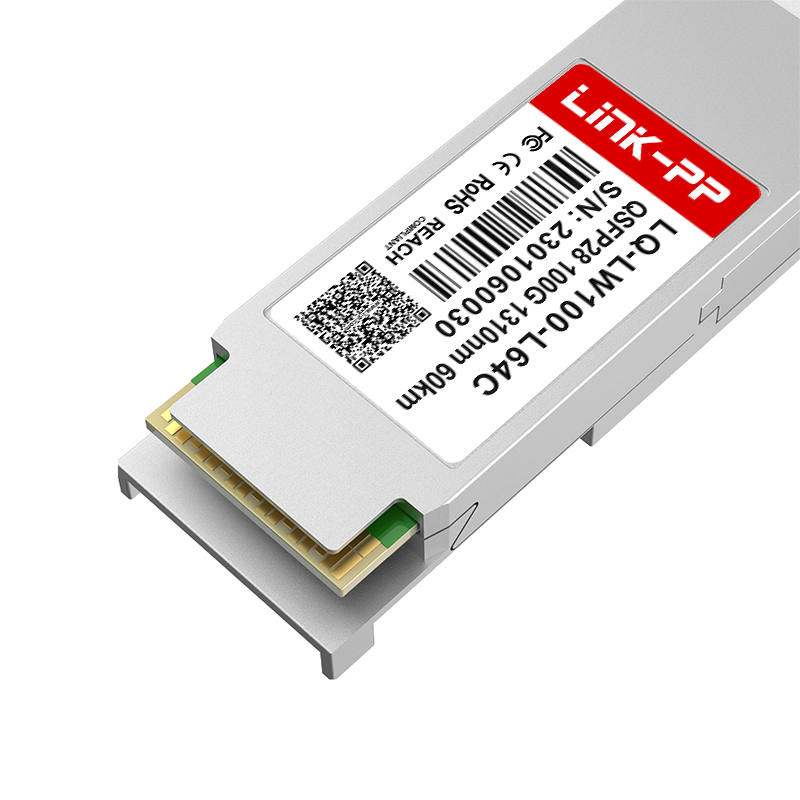

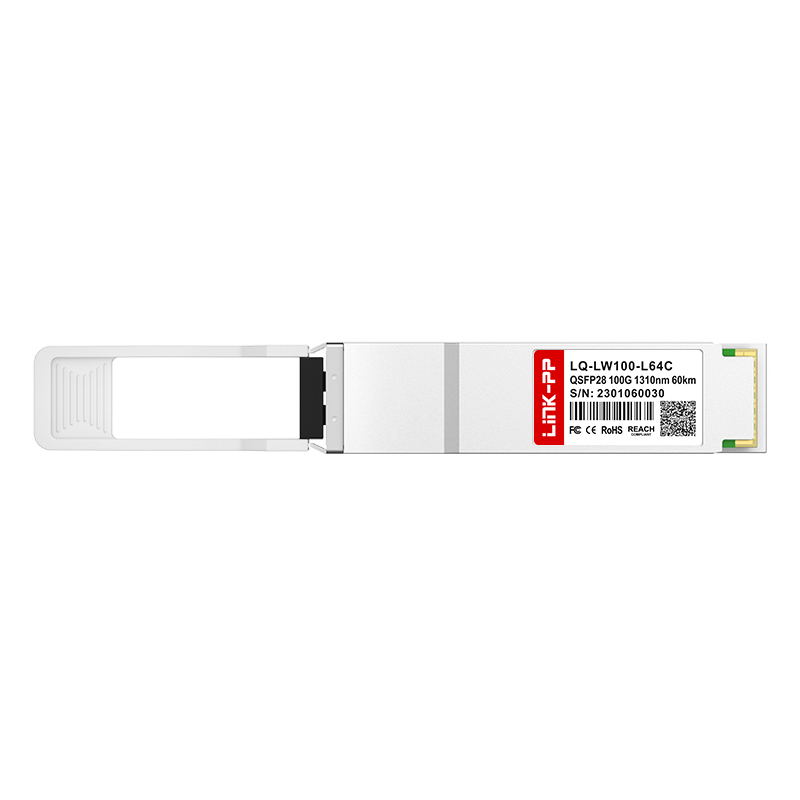

| Part No. | LQ-LW100-L64C |
| Form Factor | QSFP28 |
| Max Data Rate | 100Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 60km |
| Connector | Duplex LC |
| Media | SMF |
| Transmitter Type | EML |
| Receiver Type | PIN |
| EMC Support | Supported |
| DDM/DOM | Supported |
| Protocols | QSFP28 MSA, IEEE 802.3ba, RoHS-10 compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
End-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
High-speed optical module products ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers and mass data transmission.
High reliability and performance products with mature lasers and chip solutions. Includes Dark Fiber, WDM, Radio over Fiber, and Back-haul for 4G/5G systems.
Total solutions for global communication network constructers, covering all-optical or optical copper combined access solutions and products.
Optical cable O&M solutions integrating optical line protection systems (OLP) and monitoring systems (OLM) to ensure normal communication operations.
