WaveLink
WaveLink

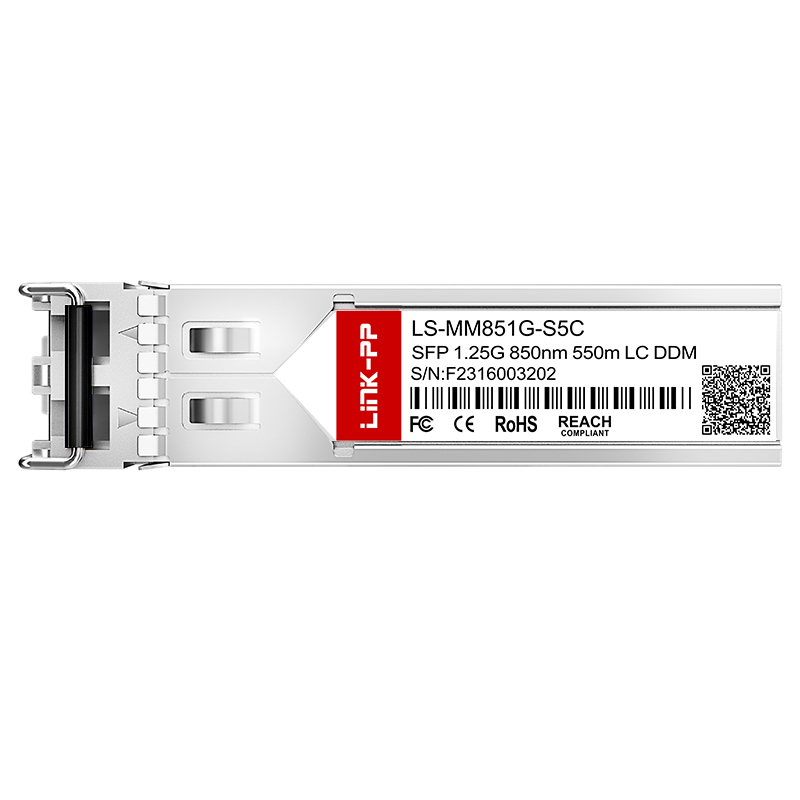

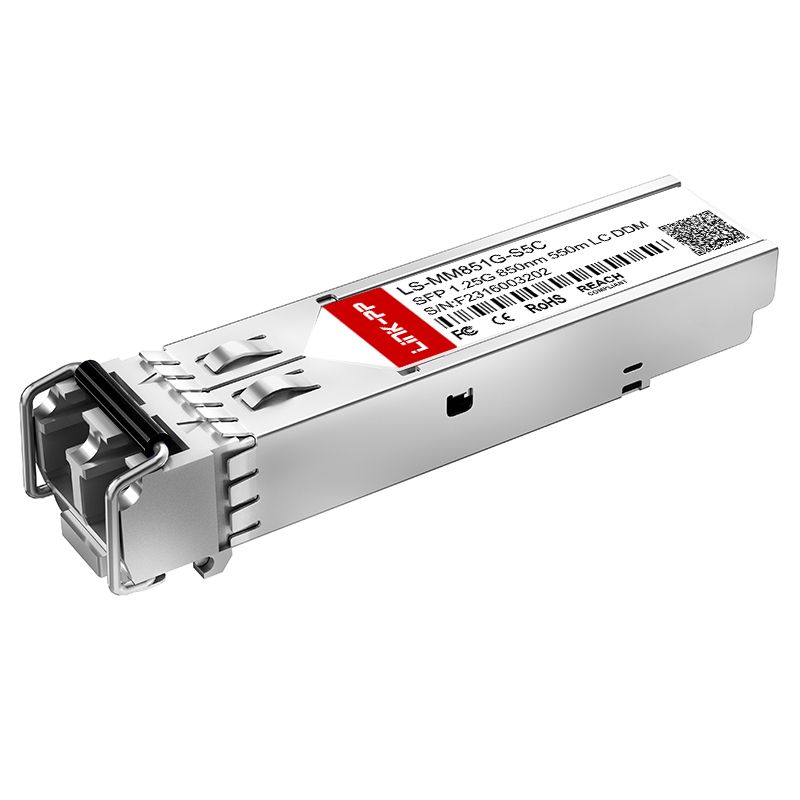

| Item | SFP Module |
| Part Status | Active |
| Form Factor | SFP |
| Max Data Rate | 1.25Gbps |
| Wavelength | 850nm |
| Max Cable Distance | 550m |

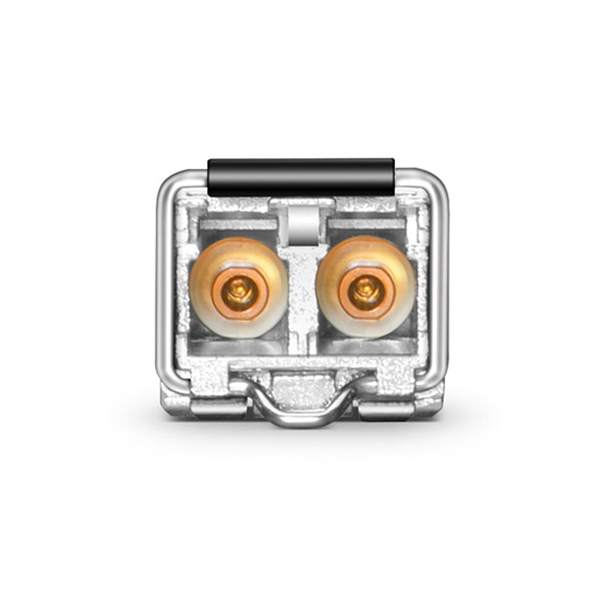

| Connector | Duplex LC |
| Media | Multimode (MMF) |
| Optical Component | VCSEL/PIN |
| DDM/DOM | Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| TX Power | -9.5 ~ - 3dBm |
| Receiver Sensitivity | < -17dBm |
| Typical Power Consumption | ≤0.8w |
| Receiver Overload | -3dBm |
| Bit Error Ratio (BER) | 1E-12 |
| Extinction Ratio | >9dB |
| EMC (Electro Magnetic Compatibility) | Supported |
| MTBF (SX) | 2,457,002 Hours |
| Protocols | IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant |
| Warranty | 5 Years |
| Sample | Available |
Drawing on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Providing end-to-end DWDM devices including active modules and optical passive devices, such as optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR.
Meeting mass data transmission demands in data centers with high-speed optical modules ranging from 10G to 800G, offering high-quality optical interconnection solutions.
High reliability and performance products with mature laser and chip solutions. Covers Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul for 4G/5G systems.
Total solutions for optical fiber access, covering all-optical or optical copper combined access solutions for global communication networks.
Ensuring normal communication line operations with optical cable O&M solutions that integrate optical line protection (OLP) and monitoring systems (OLM).
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROSH, REACH, CE, and UL. Our facilities include advanced manufacturing and testing equipment imported from abroad.
Established in 1997 with around 2000 staff, we maintain a production capacity of 3000K per month, ensuring short delivery times. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, WDM, and data communication networks, alongside high-speed interconnection solutions for cloud computing and ultra-broadband networks.
