SI-46017-F 10/100 Base-t Vertical Top Entry Straight Female Socket RJ45 Connector With Leds

Product Description

RJ45 Connector Products

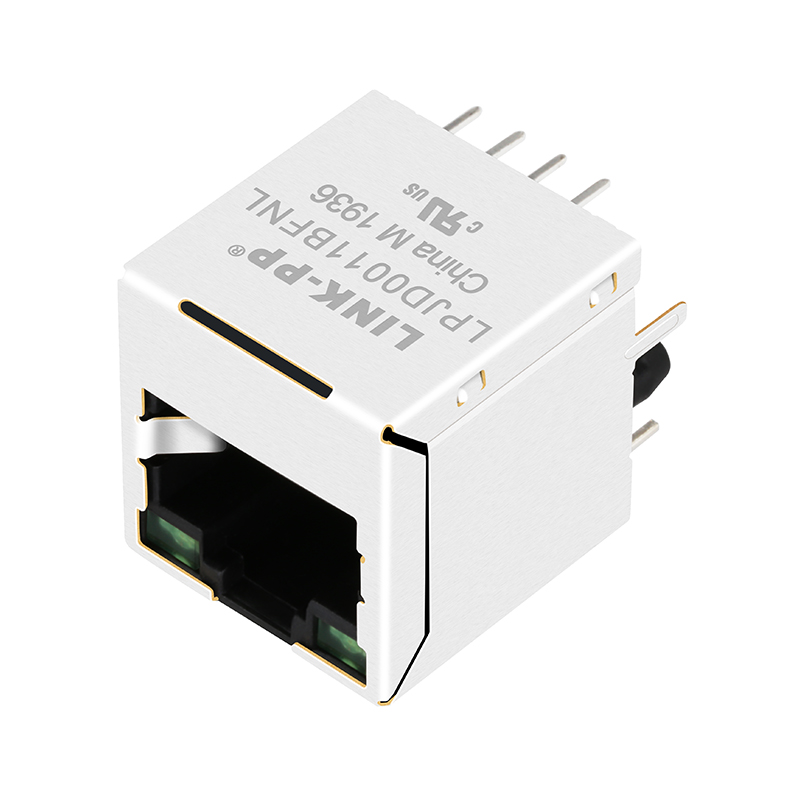

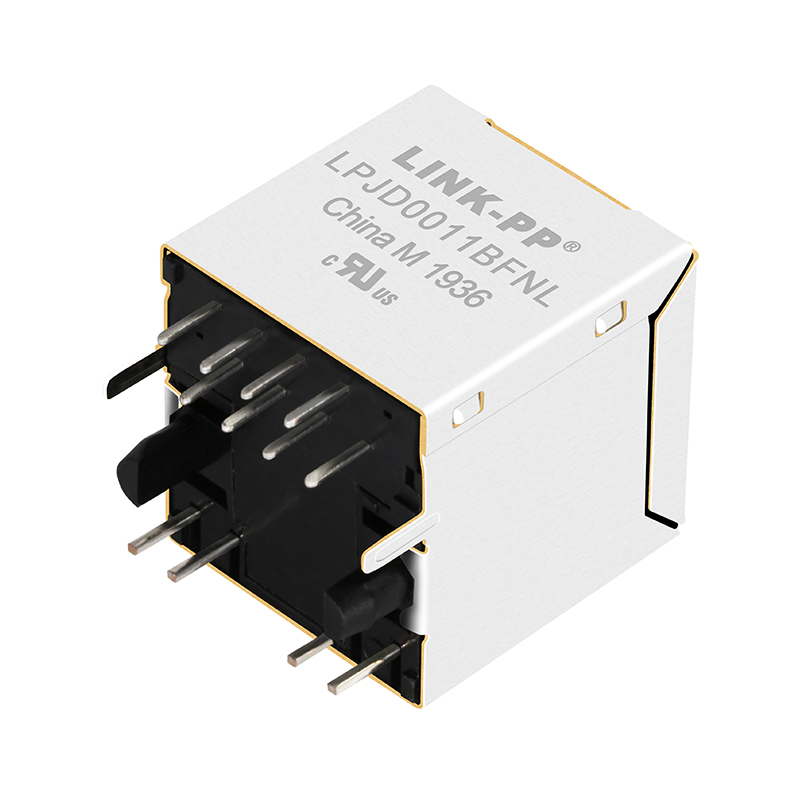

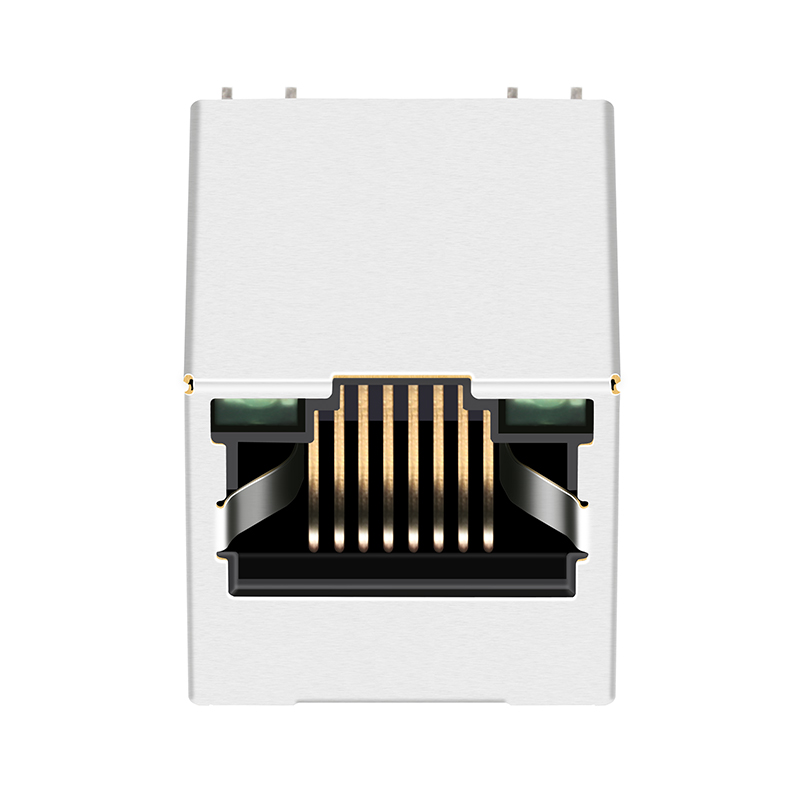

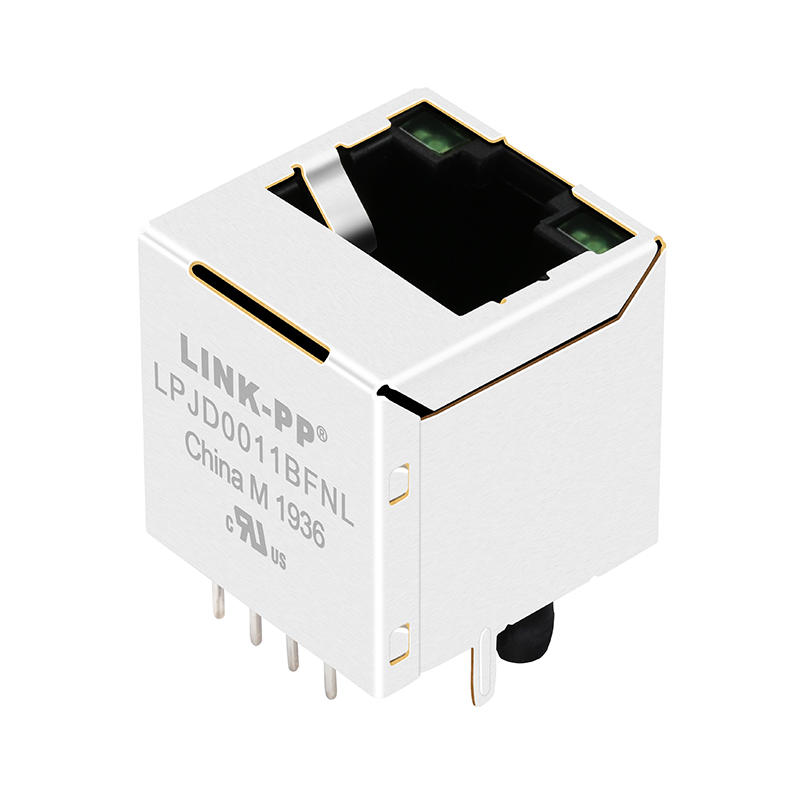

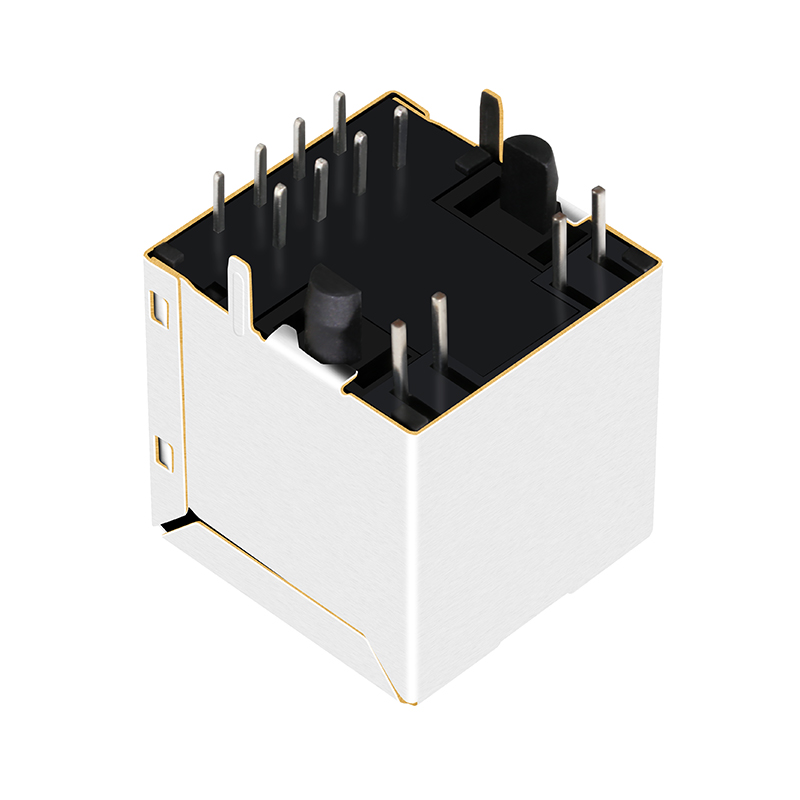

SI-46017-F 10/100 Base-t Vertical Top Entry Straight Female Socket RJ45 Connector With Leds
Products Description
ItemRJ45 Female Connector
Part StatusActive
Part NumberLPJD0011BFNL
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet(NoN PoE)
Number of Ports1x1 Port
Speed10/100 Base-T
Cores per Port4
Orientation180° Angle (Right)
PCB Mount AngleTop Entry
Shield EMI TabsWithout
LED OptionWith
PCBFR4
PCB Retaining PostT POST
Temperature0°C TO 70°C
Bst CircuitYes
AutoMDIXYes
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C
RJ45 Vertical Socket
Product Range & Technical Specs

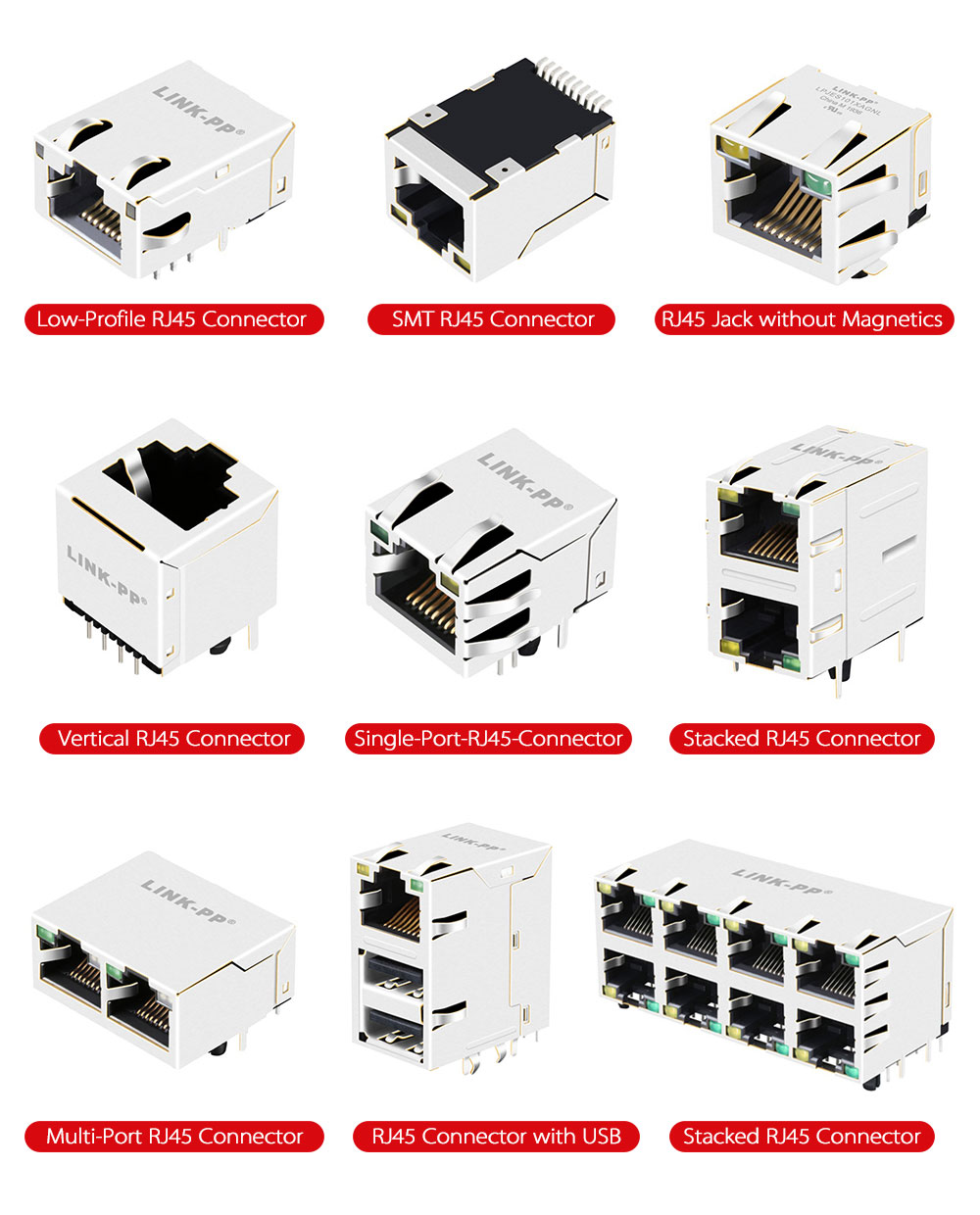

Product Categories
Dimensions Internal Diagram Schematic 1
Schematic 2 Inquiry Certifications
Applications
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries.

Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.

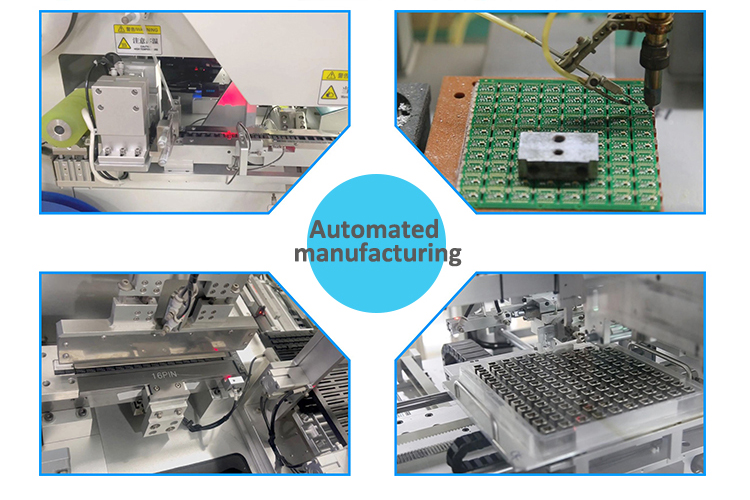

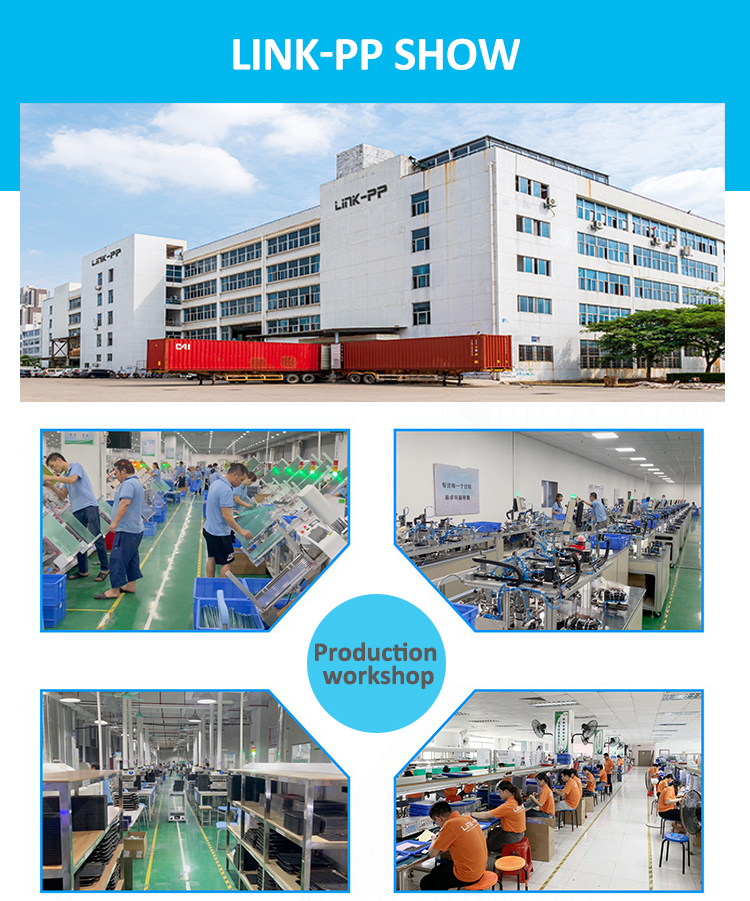

Factory Environment Quality Testing Warehouse
? FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, though shipping fees are typically covered by the customer.
What is your delivery time?
Items in stock are ready to ship immediately. For mass production, the lead time is generally 15-30 days.
What after-service do you offer?
We provide a one-year guarantee period and offer 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we welcome OEM and ODM inquiries. Please contact us for a detailed discussion on your requirements.
What is your core advantage?
With 19 years of specialized production experience, we have established long-term partnerships with leading global technology partners.
