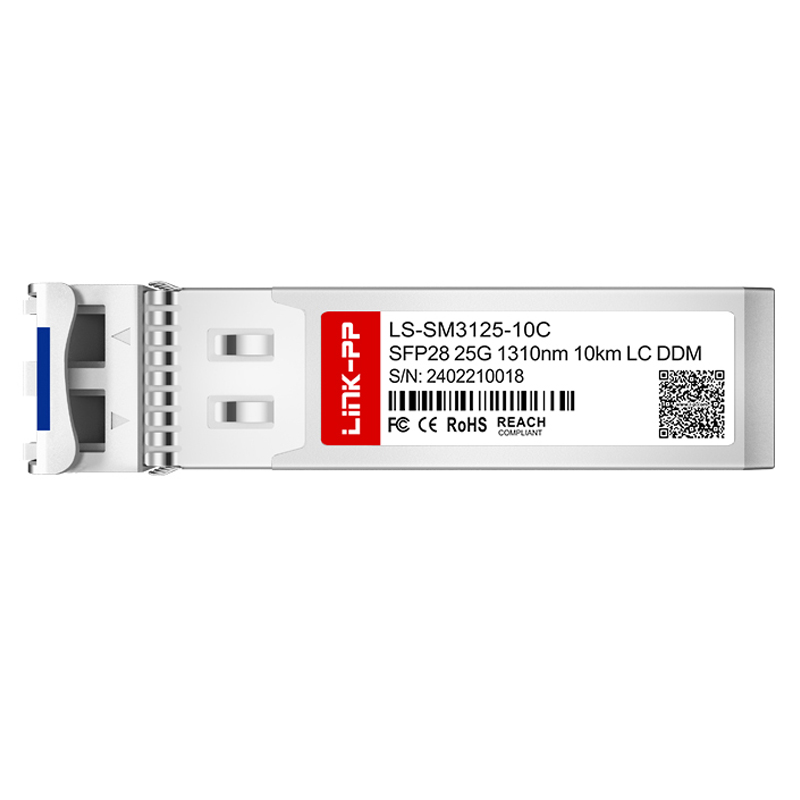

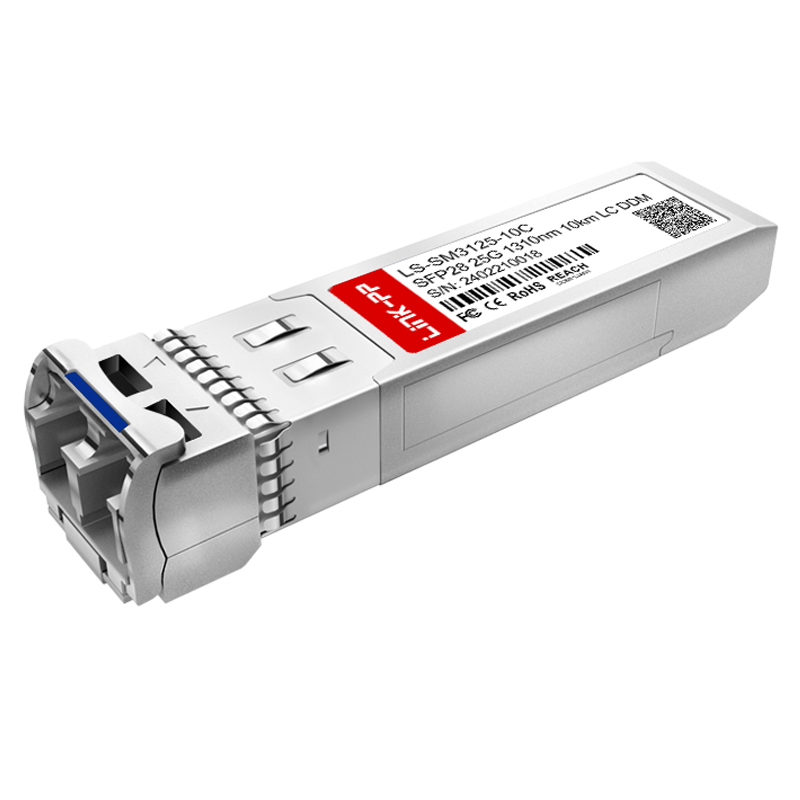

Cisco SFP-25G-LR-S Compatible Single Mode 1310nm 25G SFP28 10km SMF LC Optical Transceiver Module
| Item | 25G SFP28 Transceiver |
| Part No. | LS-SM3125-10C |
| Part Status | Active |
| Form Factor | SFP28 |
| Max Data Rate | 25Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 10km |
| Media | SMF |
| Connector | Duplex LC |
| Optical Component | DFB/PIN |
| TX Power | -4~2dBm |
| Receiver Sensitivity | <-12dBm |
| Receiver Overload | 2dBm |
| Power Consumption | ≤1.2W |
| Extinction Ratio | 3.5dB |
| DDM/DOM | Supported |
| Temperature Range | 0℃ to 70°C / -40℃ to 85℃ |
| Protocols | MSA Compliant, CPRI, eCPRI |
| Warranty | 5 Years |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
End-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
To meet the demand of mass data transmission in data centers, high-speed optical modules with rates ranging from 10G to 800G have been developed, providing high-quality optical interconnection solutions.
High reliability and performance products with mature and efficient lasers. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul for 4G/5G systems.
Certified by ISO9001:2000, ROSH, REACH, CE and UL, owning advanced manufacturing facilities and test equipment. With abundant productive capacity, products are delivered within short lead times.
