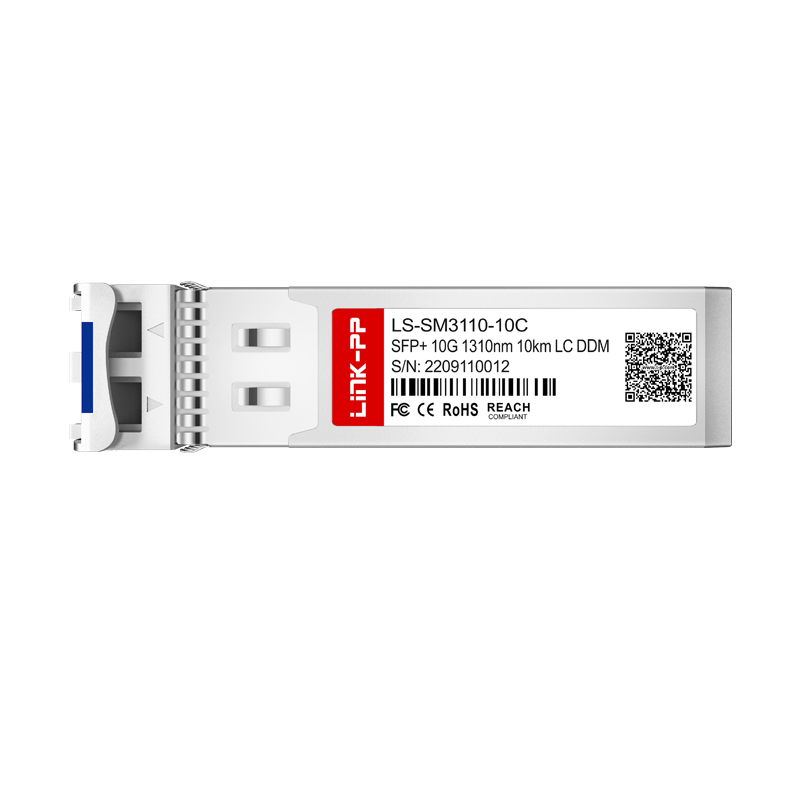

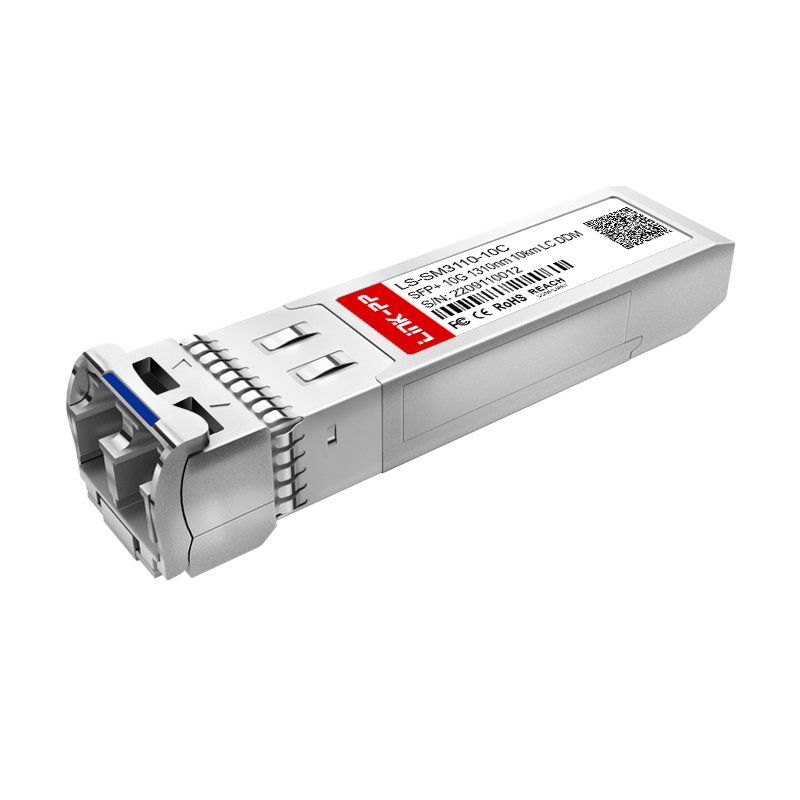

| Item | 10G SFP+ |
| Part Status | Active |
| Form Factor | SFP+ |
| Max Data Rate | 10.3125Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 10km |
| Media | SMF |
| Connector | Duplex LC |
| Optical Component | DFB/PIN |
| TX Power | -8.2~0.5dBm |
| Receiver Sensitivity | <-14.4dBm |
| Powerbudget | 6.2dB |
| Receiver Overload | 0.5dBm |
| Power Consumption | ≤1W |
| Extinction Ratio | >3.5dB |
| DDM/DOM | Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI |
| Warranty | 5 Years |
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owning advanced manufacturing facilities and imported test equipment.
Established in 1997, we have approximately 2,000 staff members. With an abundant monthly production capacity of 3,000K, we ensure short delivery times.
Our range includes high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronics technologies, we develop, manufacture, and sell high-performance products globally.
