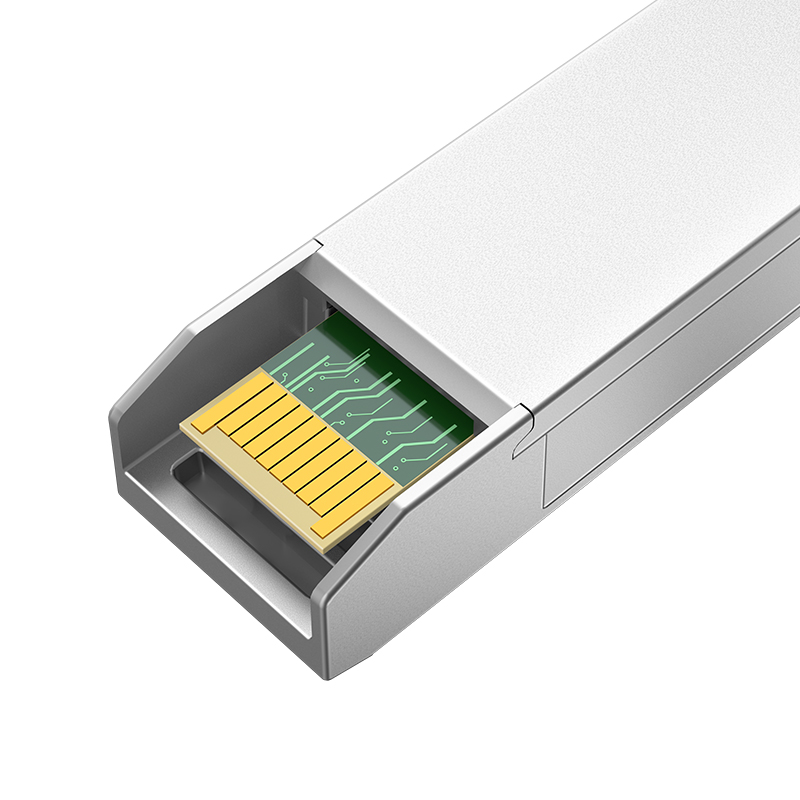

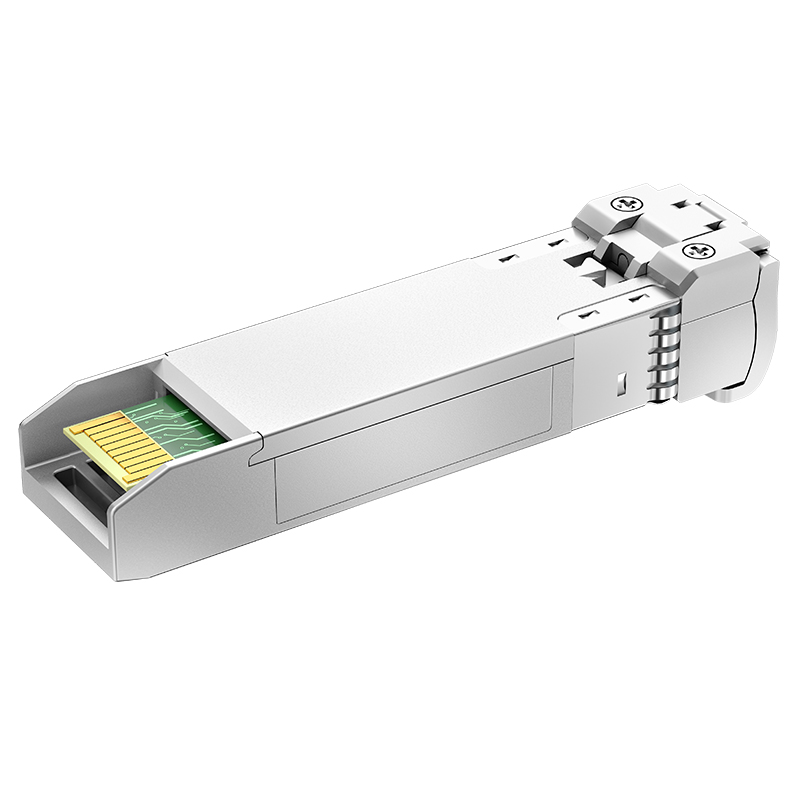

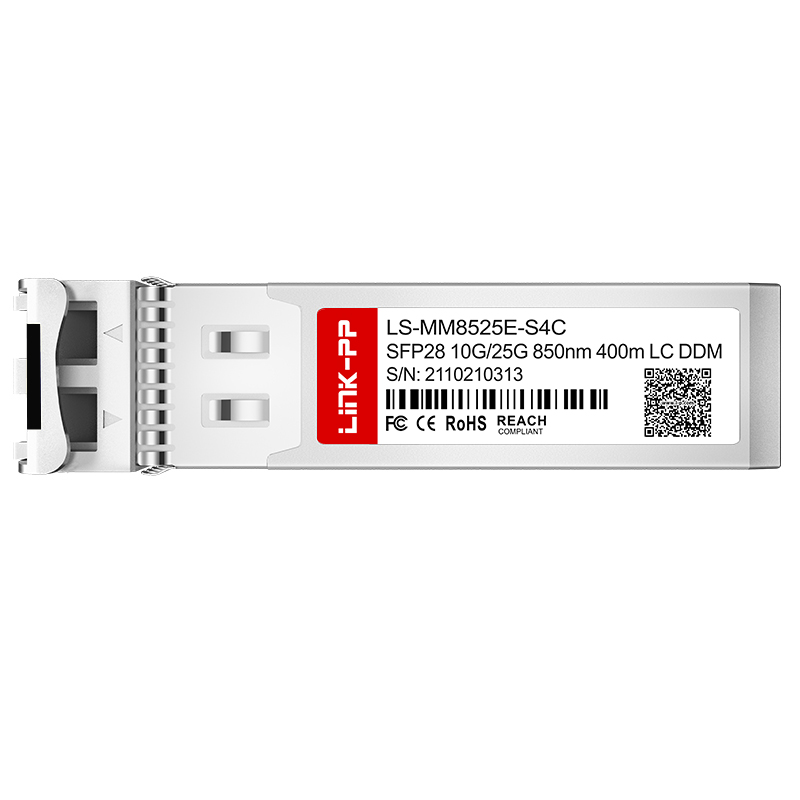

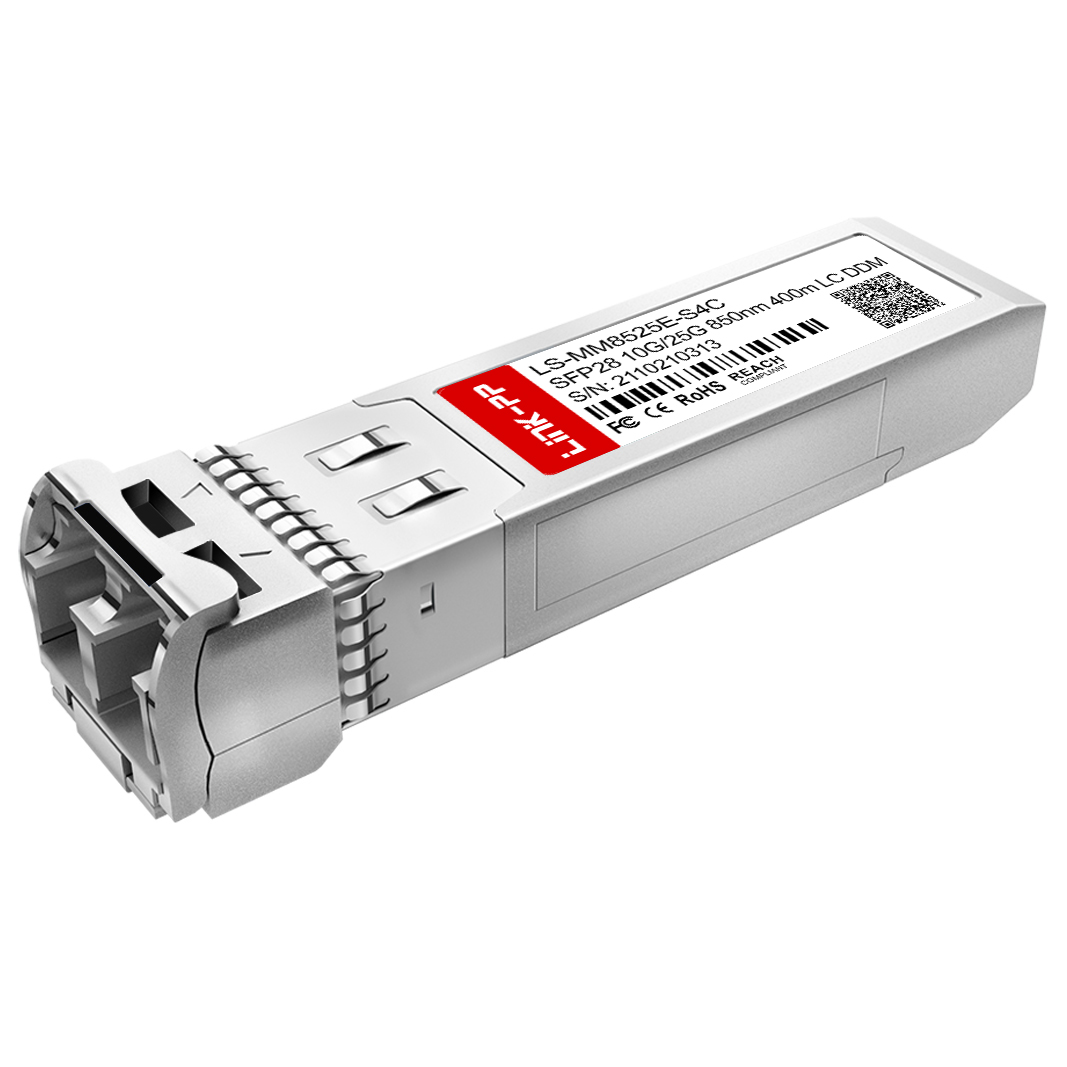

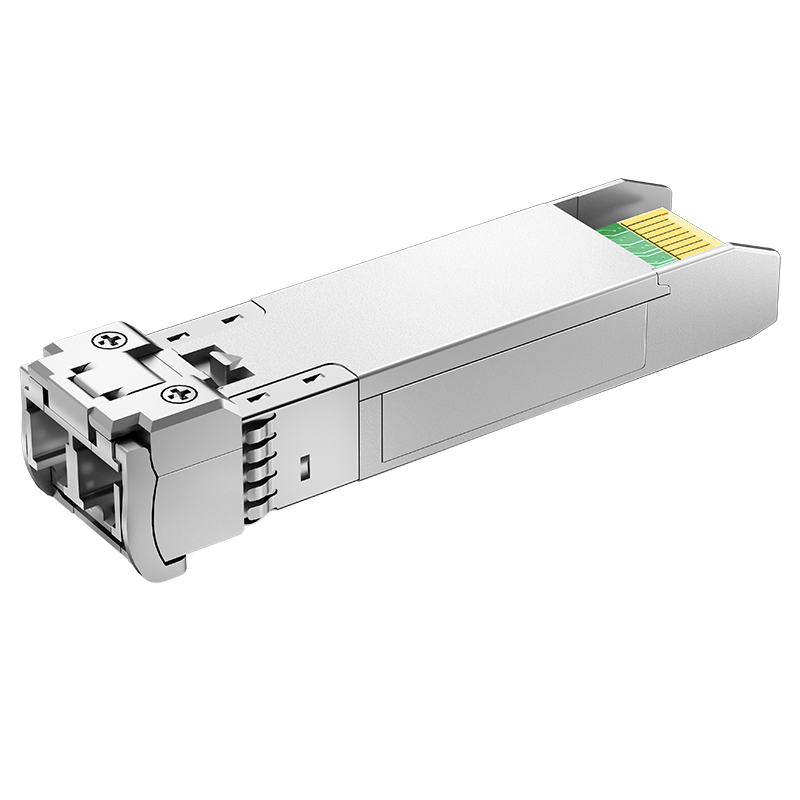

Cisco SFP-10/25G-CSR-S Compatible Dual-rate 10G/25G SFP28 Transceiver 400m MMF Optical Transceiver Module

1 / 5

Cisco SFP-10/25G-CSR-S Compatible Dual-rate 10G/25G SFP28 Transceiver 400m MMF Optical Transceiver Module

Send Inquiry

Product Description

Cisco SFP-10/25G-CSR-S Compatible Dual-rate 10G/25G SFP28 Transceiver

This high-performance SFP28 transceiver module is designed for 10G/25G dual-rate optical data communications over multi-mode fiber. It provides an efficient, high-speed solution for data centers and enterprise networks requiring 400m reach.

Technical Specifications

Item	25G SFP28 Transceiver
Part No.	LS-MM8525E-S4C
Form Factor	SFP28
Max Data Rate	10G/25Gbps
Wavelength	850nm
Max Cable Distance	400m
Media	MMF (Multi-Mode Fiber)
Connector	Duplex LC
Optical Component	VCSEL/PIN
TX Power	-6.4 ~ 2.4dBm
Receiver Sensitivity	<-6dBm
Power Consumption	≤1W
DDM/DOM	Supported
Operating Temperature	0°C to 70°C / -40°C to 85°C
Protocols	SFF-8472, SFF-8024, SFF-8431, SFF-8432, IEEE802.3by
Warranty	5 Years

Industry Solutions

With over 10 years of experience in chips and modules, our solutions integrate fast speeds, small size, power savings, and high performance into every module.

Optical Transport Networks

End-to-end DWDM device support from active modules to optical passive devices, including amplifiers (EDFA & RFA), Mux & Demux, OPM, and ROADM.

Cloud and Enterprise

High-speed optical modules ranging from 10G to 800G, providing high-quality interconnection solutions for modern data centers.

Wireless & 5G

Reliable performance solutions including Dark Fiber, WDM, and Radio over Fiber to meet the needs of 4G/5G mid-haul and back-haul scenarios.

FTTx & Subsystems

Total optical fiber access solutions and maintenance systems (OLP/OLM) ensuring normal operation of global communication lines.

Product Showcase

Quality & Reliability

Frequently Asked Questions

1. Is this module compatible with Cisco equipment?

Yes, this module is specifically designed to be 100% compatible with Cisco SFP-10/25G-CSR-S standards, supporting dual-rate 10G and 25G speeds.

2. What is the maximum transmission distance?

This SFP28 transceiver supports a maximum cable distance of up to 400 meters when used with high-quality Multi-Mode Fiber (MMF).

3. Does it support Digital Diagnostic Monitoring (DDM)?

Yes, it supports DDM/DOM functions, allowing real-time monitoring of parameters such as temperature, voltage, and optical power.

4. Can I request samples for testing?

Yes, samples are available for quality evaluation and compatibility testing before bulk orders.

5. What is the warranty period for this product?

We provide a 5-year warranty on our optical transceiver modules, ensuring long-term reliability for your network infrastructure.

6. What is the typical power consumption?

This module is designed for energy efficiency, with a power consumption of ≤1W, making it ideal for high-density data center deployments.
