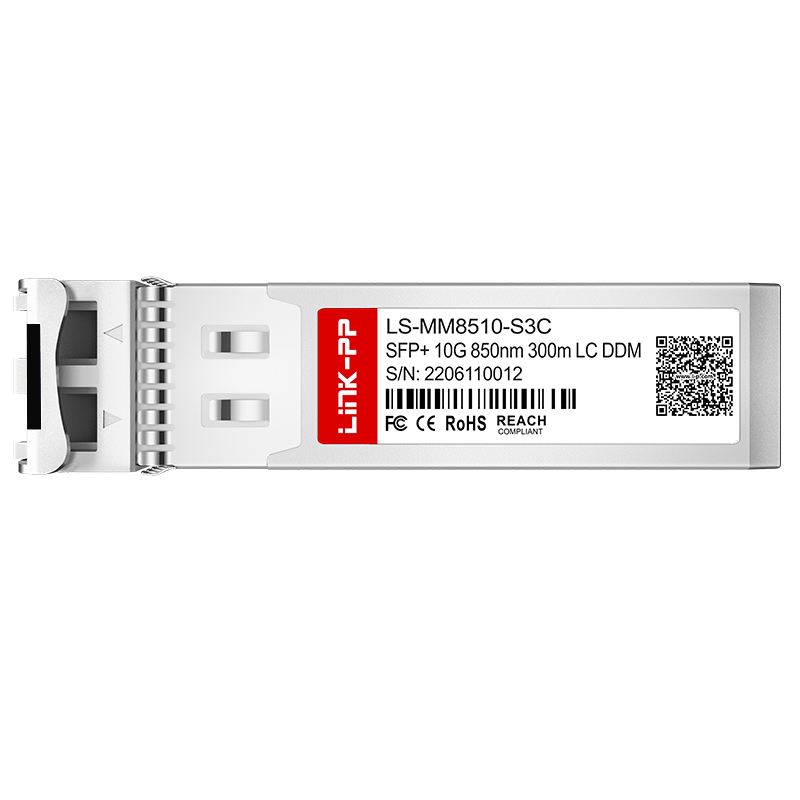

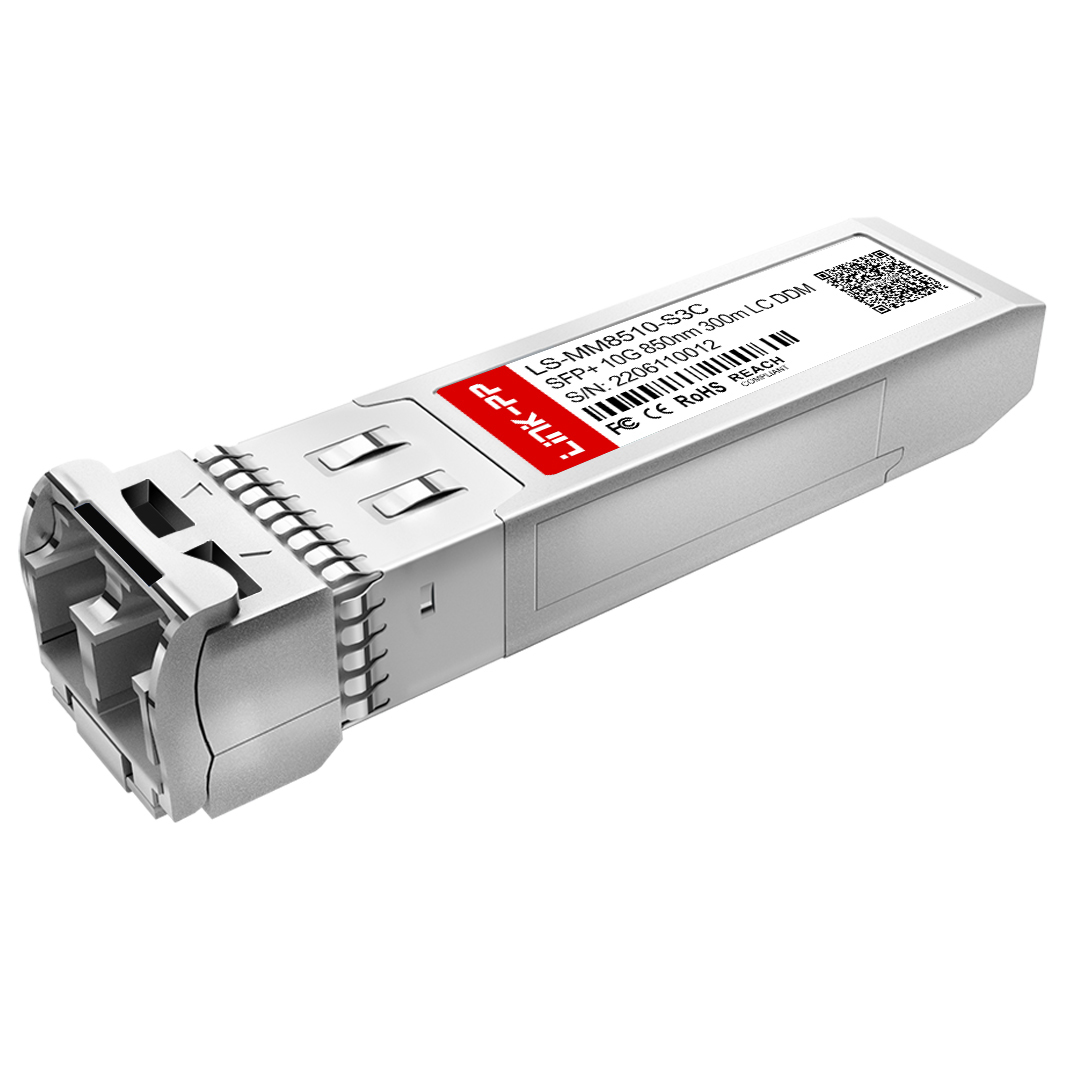

| Item | 10G SFP+ |
| Part Status | Active |
| Form Factor | SFP+ |
| Max Data Rate | 10.3125Gbps |
| Wavelength | 850nm |
| Max Cable Distance | 300m |
| Media | MMF |
| Connector | Duplex LC |
| Optical Component | VCSEL/PIN |
| TX Power | -7.3~-1dBm |
| Receiver Sensitivity | < -11.1dBm |
| Powerbudget | 3.8dB |
| Receiver Overload | -1dBm |
| Power Consumption | <1W |
| Extinction Ratio | >3dB |
| DDM/DOM | Supported |
| Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA, CPRI, eCPRI |
| Warranty | 5 Years |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
Providing a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. Our facility owns advanced manufacturing and test equipments imported from abroad.
Established in 1997, we currently have around 2000 staff members. With a monthly productive capacity of 3000K, we ensure rapid delivery and consistent supply.
Our expertise extends to high-speed optical interconnection solutions for cloud computing and ultra-broadband networks, utilizing the latest optoelectronics technologies to serve global markets.
