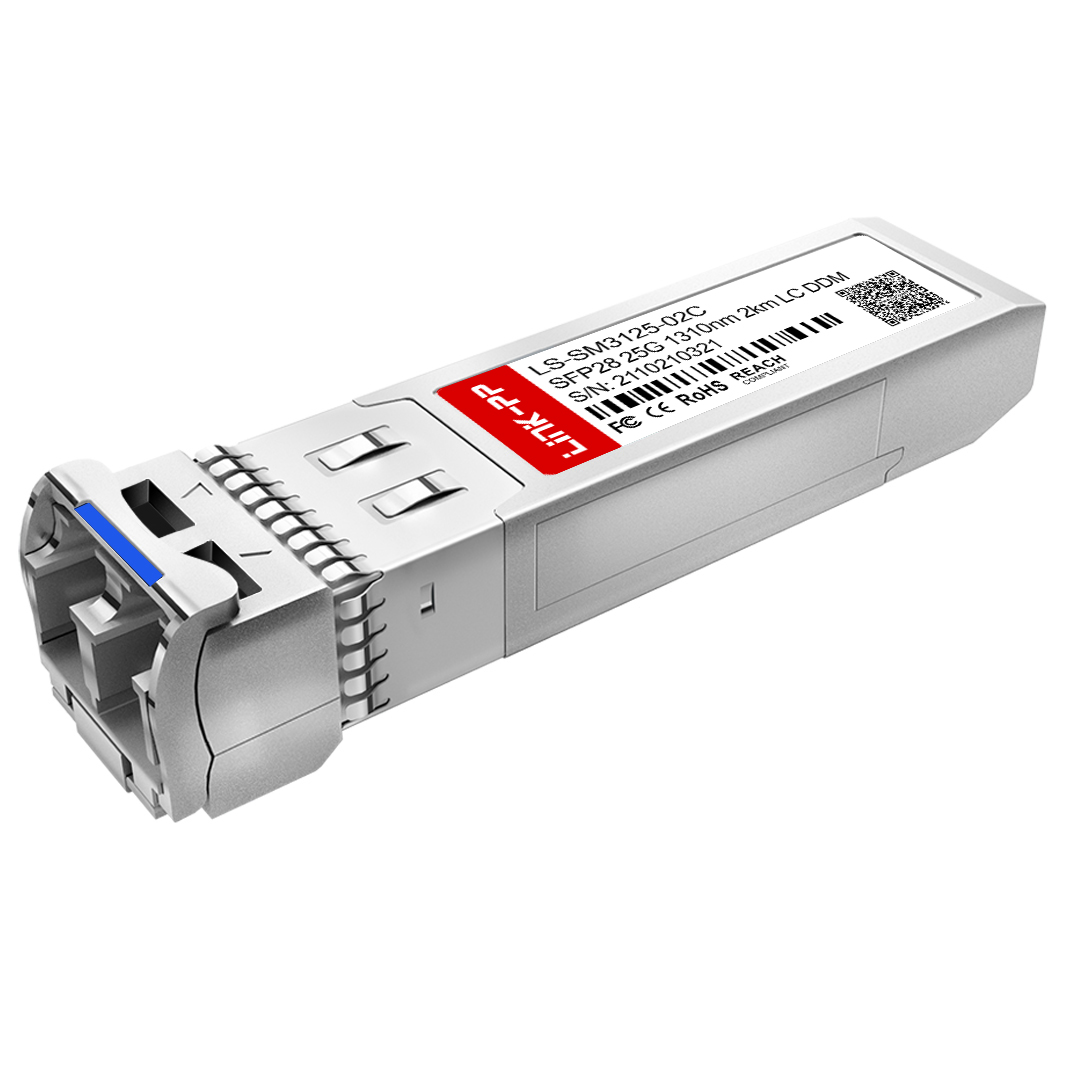

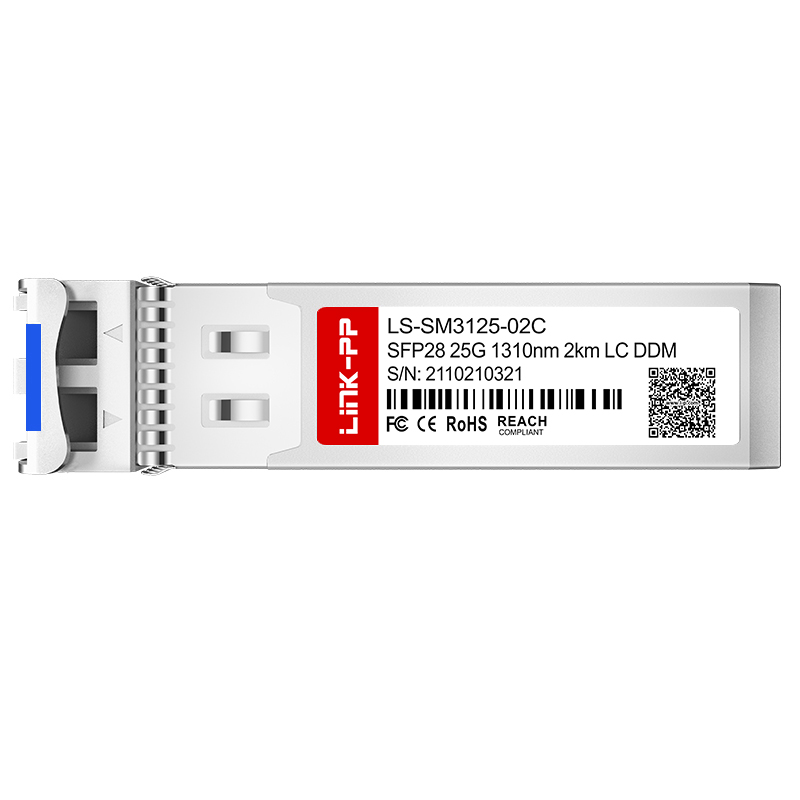

| Item | 25G SFP28 Transceiver |
| Part No. | LS-SM3125-02C |
| Part Status | Active |
| Form Factor | SFP28 |
| Max Data Rate | 25Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 2km |
| Media | SMF |
| Connector | Duplex LC |
| Optical Component | DFB/PIN |
| TX Power | -7~2.5dBm |
| Receiver Sensitivity | <-12dBm |
| Receiver Overload | 2dBm |
| Power Consumption | 1.2W |
| DDM/DOM | Supported |
| Temperature Range | 0°C to 70°C / -40°C to 85°C |
| Protocols | SFP28 MSA, SFF-8472 |
| Warranty | 5 Years |
| Sample | Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. Our expertise provides a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
We provide end-to-end DWDM devices with almost all optical components - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.
To meet the demand for mass data transmission in data centers, a series of high-speed optical modules ranging from 10G to 800G has been developed, providing high-quality optical interconnection solutions.
High reliability and performance products with mature lasers and mainstream chip solutions. The solution includes Dark Fiber, WDM, Radio over Fiber, and Back-haul for 4G/5G systems.
Comprehensive FTTx optical fiber access solutions and total O&M solutions integrating optical line protection (OLP) and monitoring systems (OLM).
As a specialized manufacturer of magnetic telecom and networking components, we are certificated by ISO9001:2000, ROSH, REACH, CE and UL. Our facilities utilize advanced manufacturing and test equipment to ensure peak performance.
With an abundant productive capacity of 3000K per month, we provide a full series of optical modules and high-speed interconnection solutions for cloud computing and ultra-broadband networks worldwide.
